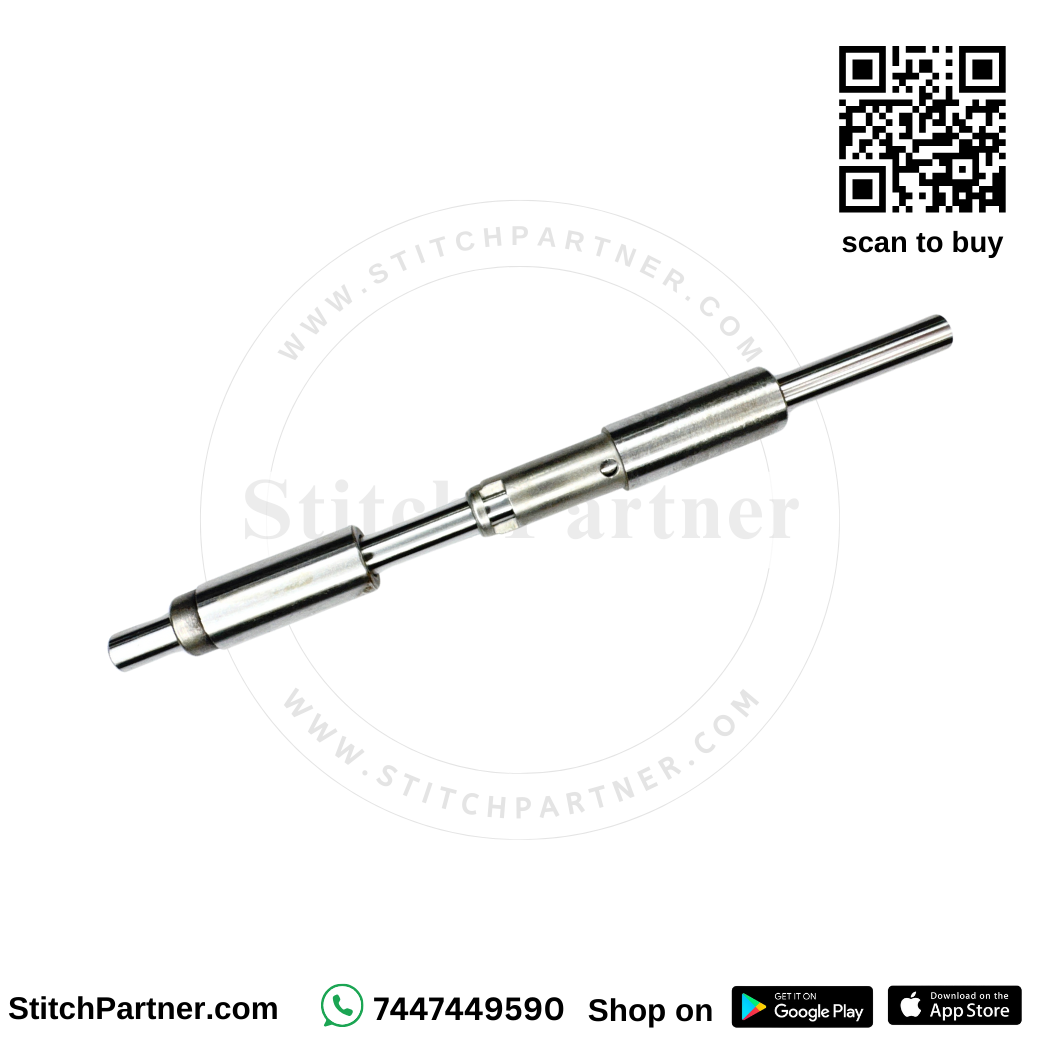

113605051 / S18874001 / 111024101 Needle bar with bush set for brother feed of arm machine
Short Description
Needle bar with bush set (113605051 / S18874001 / 111024101) for Brother DA-9270/9280 and Jack JK-9270D-13. COD available.
Original price was: ₹999.00.₹600.00Current price is: ₹600.00.
This needle bar with bush set (113605051 / S18874001 / 111024101) carries the needles through their up-and-down stroke on Brother DA-9270 / DA-9280 and Jack JK-9270D-13 feed-off-the-arm machines. Best for factories and workshops fixing needle wobble, noise or repeated needle deflection caused by a worn bar or bush.
Part Details
| Detail | Information |
|---|---|
| Part No. | 113605051 / S18874001 / 111024101 |
| Part Name | Needle bar with bush set |
| Fits | Brother DA-9270, DA-9280; Jack JK-9270D-13 (JK-T9270 / T9280) |
| Machine Type | Feed-off-the-arm industrial machine |
When to Replace It
- Needles wobble or hit the needle plate even when correctly set.
- The needle bar is scored, bent or loose in its bush.
- The head is noisy or skips stitches after a needle strike.
How to Fit It
- First, switch off the machine and remove the needles and needle clamp.
- Next, take out the old needle bar and bush.
- Then fit the new bush and needle bar, keeping the bar free to move.
- Finally, refit the clamp and needles and turn the hand wheel to check smooth travel.
FAQs
Which part numbers does this set cover?
It is listed under 113605051, S18874001 and 111024101. Match your old bar against these before ordering.
Will it fit the Jack machine?
It is listed for the Jack JK-9270D-13 as well as the Brother DA-9270 and DA-9280.
Is cash on delivery available?
Yes. StitchPartner delivers pan-India with COD available.
