A031 Presser Bar Guide Holder Bracket for GK9 Bag Closer
Original price was: ₹150.00.₹120.00Current price is: ₹120.00.
Description

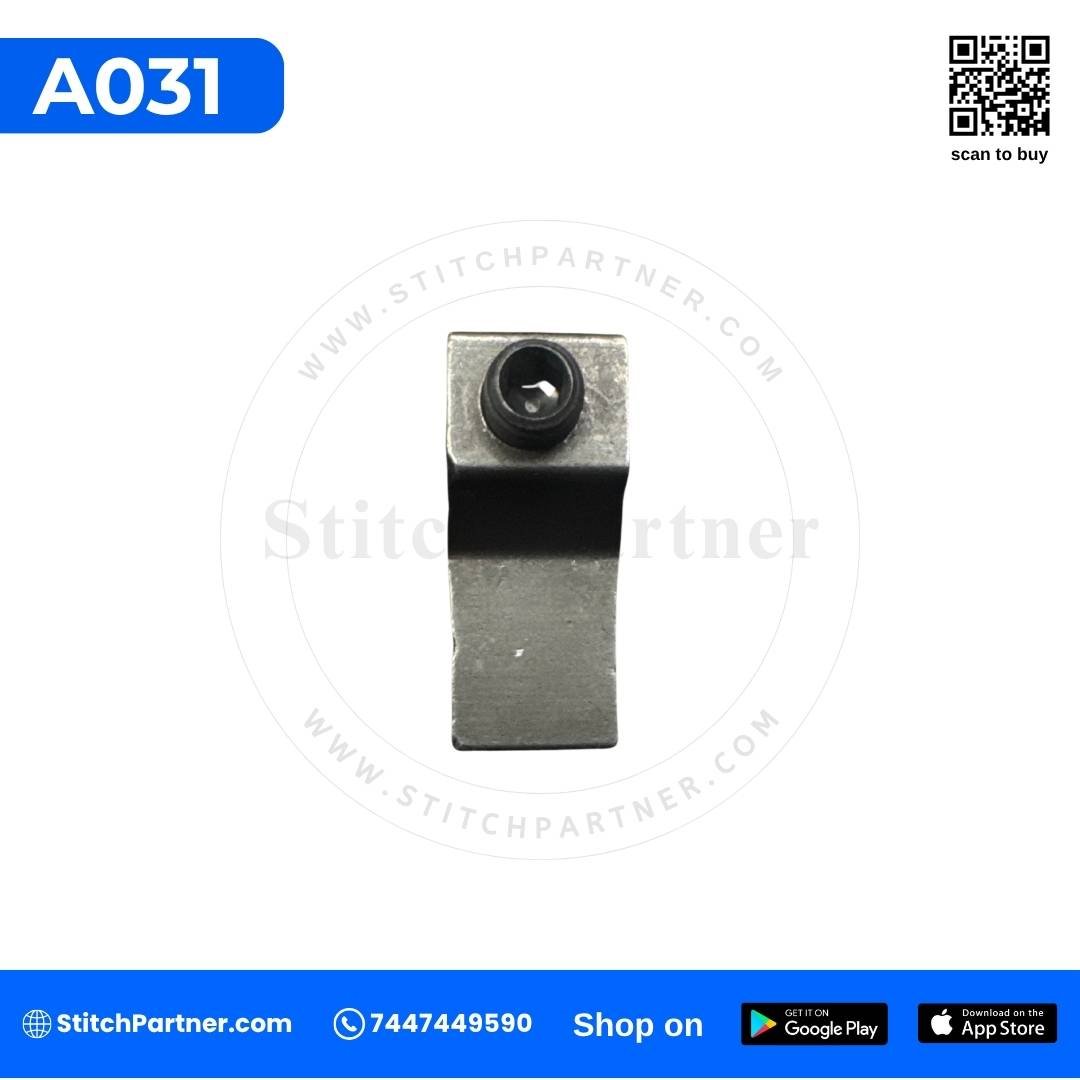

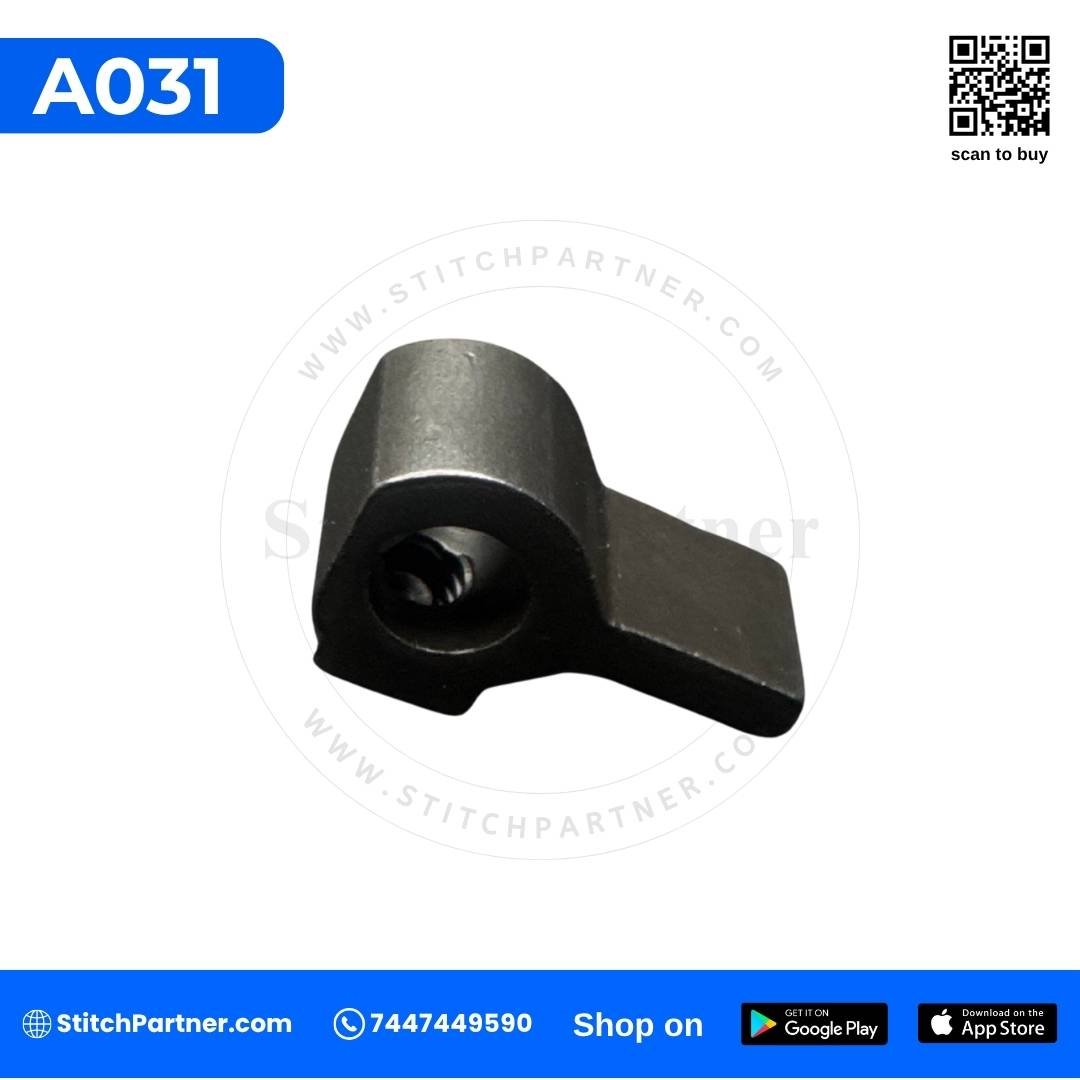

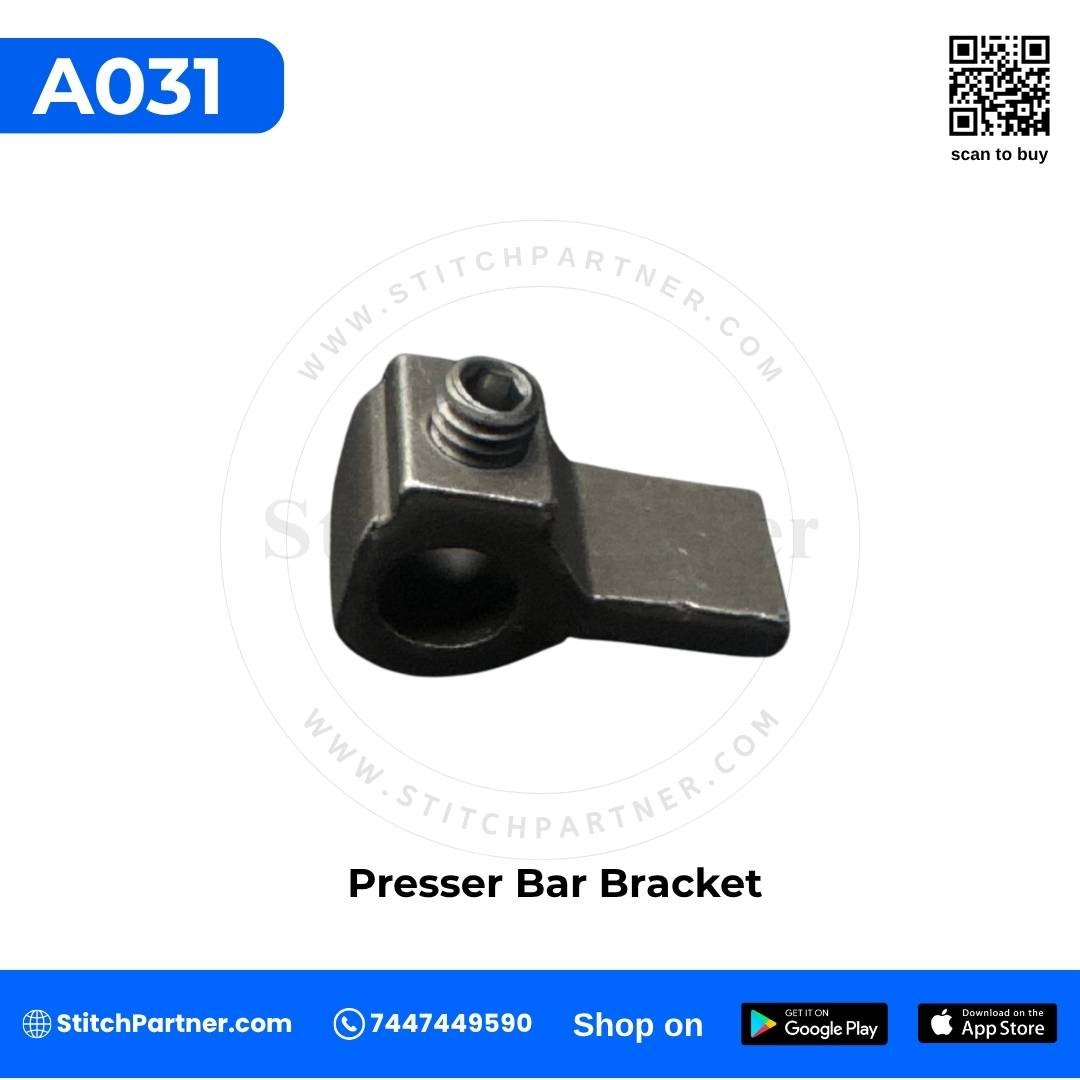

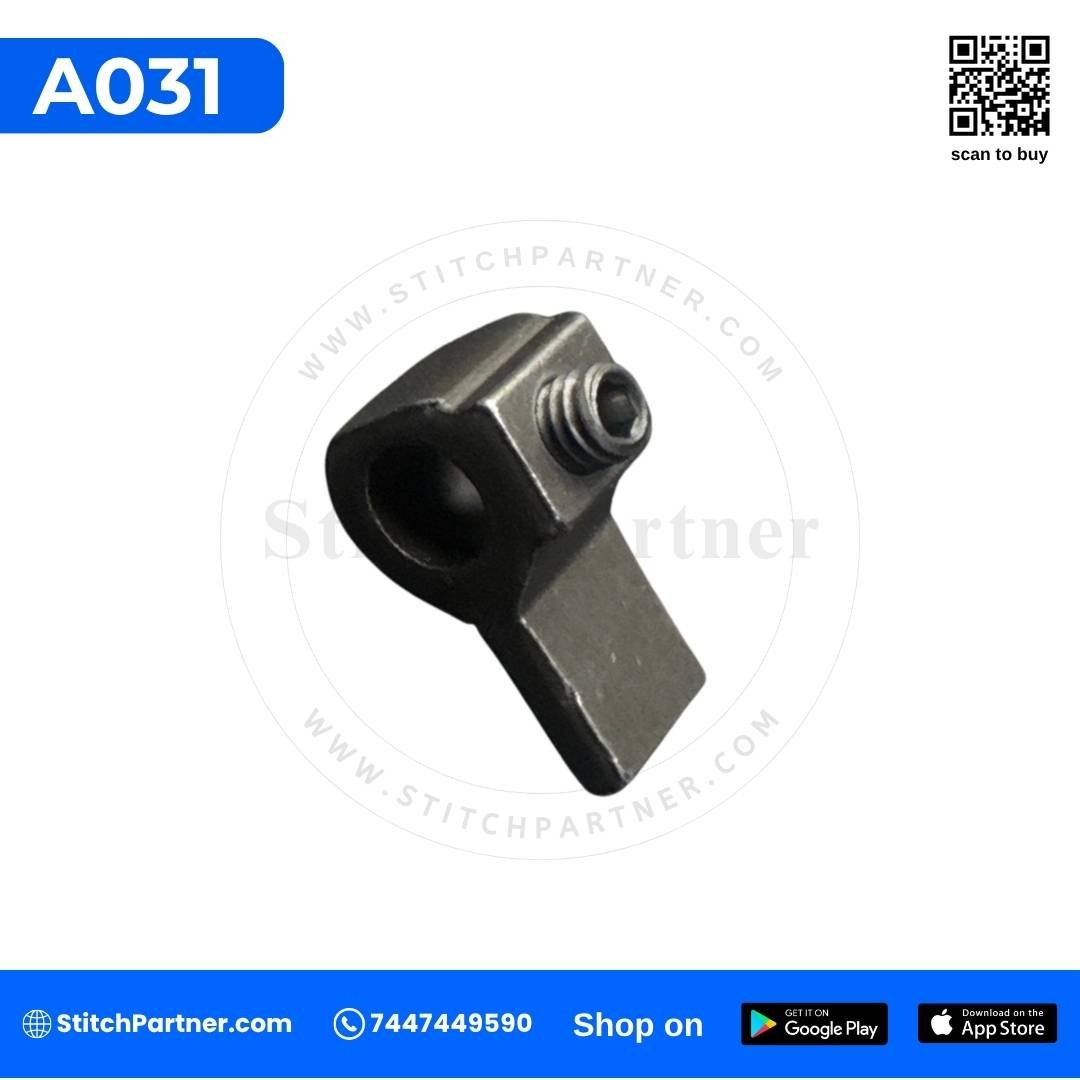

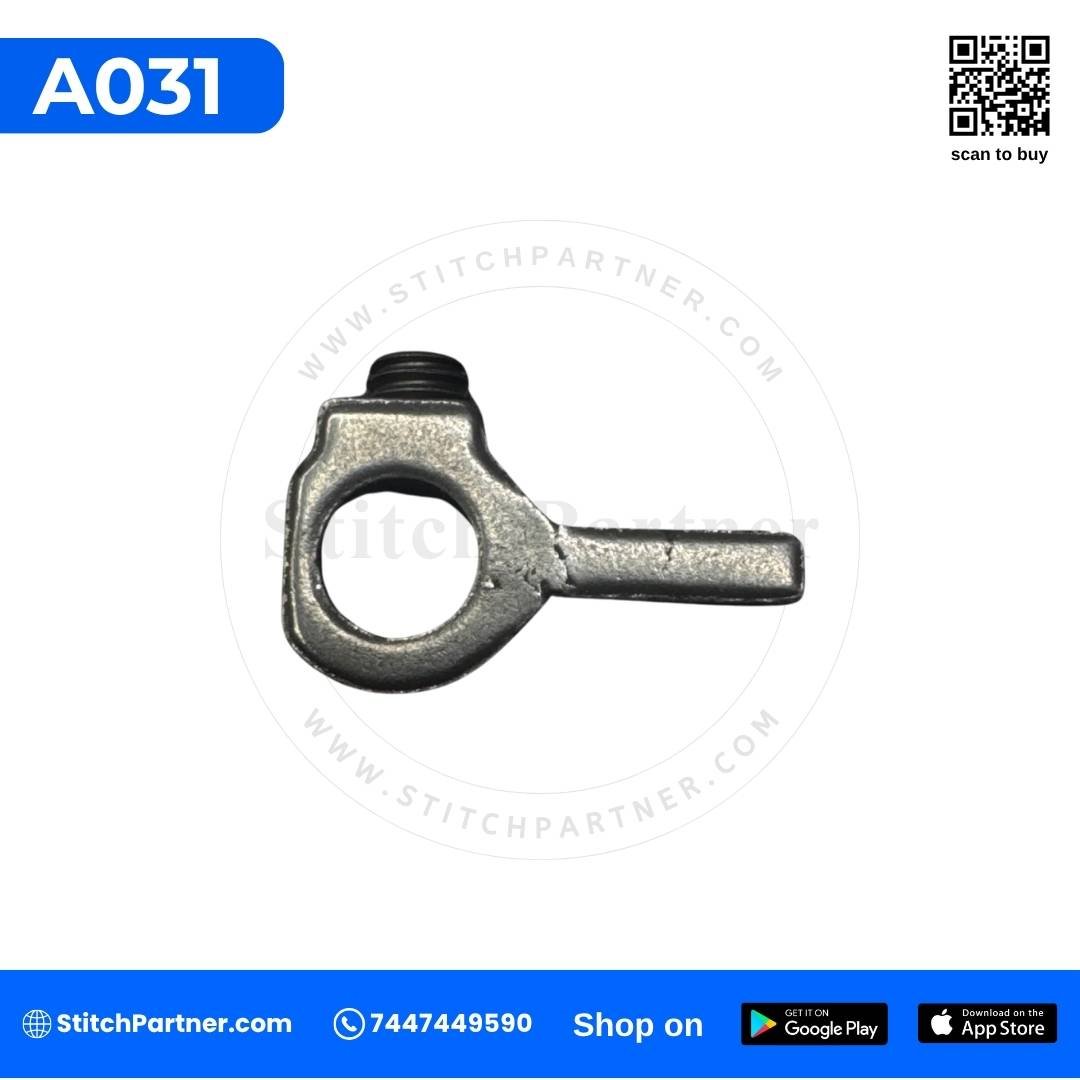

A031 Presser Bar Guide Holder Bracket Assembly for GK9 Portable Bag Closer
The A031 Presser Bar Guide Holder Bracket Assembly is a precision internal replacement part designed for GK9 portable bag closer sewing machines. It securely supports and aligns the presser bar (pressure rod), allowing the presser foot to move smoothly while maintaining consistent downward pressure during bag stitching.
This guide holder bracket plays an important role in keeping the presser bar correctly positioned. By preventing unwanted rotation or side movement, it helps the presser foot remain parallel to the feed dog for smooth feeding and reliable stitch formation on industrial packaging materials.
Compatible with a wide range of GK9 handheld bag closer machines, this replacement part is suitable for maintenance, repairs, and restoring worn internal assemblies.
Please verify your existing part and machine model before purchasing. Refer to your machine’s parts manual to confirm compatibility.
What Does the A031 Presser Bar Guide Holder Do?
The A031 bracket acts as the structural guide for the presser bar inside the machine head. It securely clamps the pressure rod while allowing controlled vertical movement during sewing.
A properly aligned guide holder helps:
- Keep the presser foot perfectly aligned
- Reduce unwanted twisting of the presser bar
- Maintain consistent pressure on the material
- Improve smooth feeding through the feed mechanism
- Support accurate stitch formation on heavy-duty bags
When this bracket becomes worn or damaged, the presser rod may shift, resulting in uneven feeding, inconsistent pressure, skipped stitches, or excessive internal wear.
Key Features
Anti-Twist Presser Bar Alignment
The guide holder securely locks the presser bar into its correct operating position, preventing unwanted rotation during high-speed sewing.
Heavy-Duty Industrial Construction
Manufactured from durable cast steel for long service life in demanding industrial environments.
Precision Clamp Design
The accurately machined internal bore grips the presser bar evenly, reducing wear while allowing smooth vertical movement.
Stable Presser Foot Operation
Maintains proper alignment between the presser foot and feed dog to improve feeding consistency.
Supports High-Speed Operation
Designed to withstand continuous vibration generated by portable bag closer machines operating at high speeds.
Machine Compatibility
The A031 Presser Bar Guide Holder Bracket is compatible with many handheld portable bag closing machines using the standard GK9 mechanical platform.
Compatible with:
- GK9-2
- GK9-8
- GK9-18
- GK9-18A
- GK9-200
- GK9-350
- GK9-500
- GK9-900
- GK9-1001
Also commonly fits compatible handheld bag closer machines from:
- Newlong (equivalent handheld styles)
- Revo
- Gemsy
- Zoje
- Moonstar
- Other standard China-made portable bag closer machines
| Machine Type | Compatible |
|---|---|
| GK9 Portable Bag Closer Series | Yes |
| Newlong Equivalent Handheld Models | Yes (matching design) |
| Revo Portable Bag Closer | Yes |
| Gemsy Portable Bag Closer | Yes |
| Zoje Portable Bag Closer | Yes |
| Moonstar Portable Bag Closer | Yes |
Always compare your existing component with the replacement part before ordering.
Suitable Bag Materials
Although this is an internal mechanical component, proper presser bar alignment helps maintain smooth stitching on:
- Woven Polypropylene (PP) Bags
- Jute Bags
- Burlap Bags
- Canvas Bags
- Multi-wall Paper Bags
- Agricultural Feed Bags
- Fertilizer Bags
- Grain Bags
- Rice Bags
- Chemical Packaging Bags
How to Install
- Disconnect the bag closer from its power source.
- Remove the machine cover to access the presser bar assembly.
- Loosen and remove the worn guide holder bracket.
- Position the A031 bracket onto the presser bar.
- Align the presser bar correctly with the feed mechanism.
- Tighten the bracket securely.
- Manually check smooth vertical movement.
- Test sew on a sample bag before returning the machine to production.
Frequently Asked Questions
What is the function of the A031 Presser Bar Guide Holder?
It guides and supports the presser bar, keeping it properly aligned so the presser foot applies even pressure during bag stitching.
Which machines is this compatible with?
It fits most GK9 portable bag closer machines, including GK9-2, GK9-8, GK9-18, GK9-18A, GK9-200, GK9-350, GK9-500, GK9-900, and GK9-1001 models, along with many compatible China-made handheld bag closers.
Does this part touch the sewing material?
No. It is an internal guide component. However, its alignment directly affects how consistently the presser foot feeds the bag through the machine.
When should this bracket be replaced?
Replace it if the presser bar develops excessive side movement, twists during operation, or shows visible wear, cracks, or damage.
Is installation difficult?
Installation is straightforward for experienced machine technicians or users familiar with GK9 portable bag closer maintenance. Correct alignment of the presser bar is important during reassembly.
