A015 Main Drive Link Lever Complete Set for GK9 Portable Bag Closer
Original price was: ₹600.00.₹500.00Current price is: ₹500.00.
Description

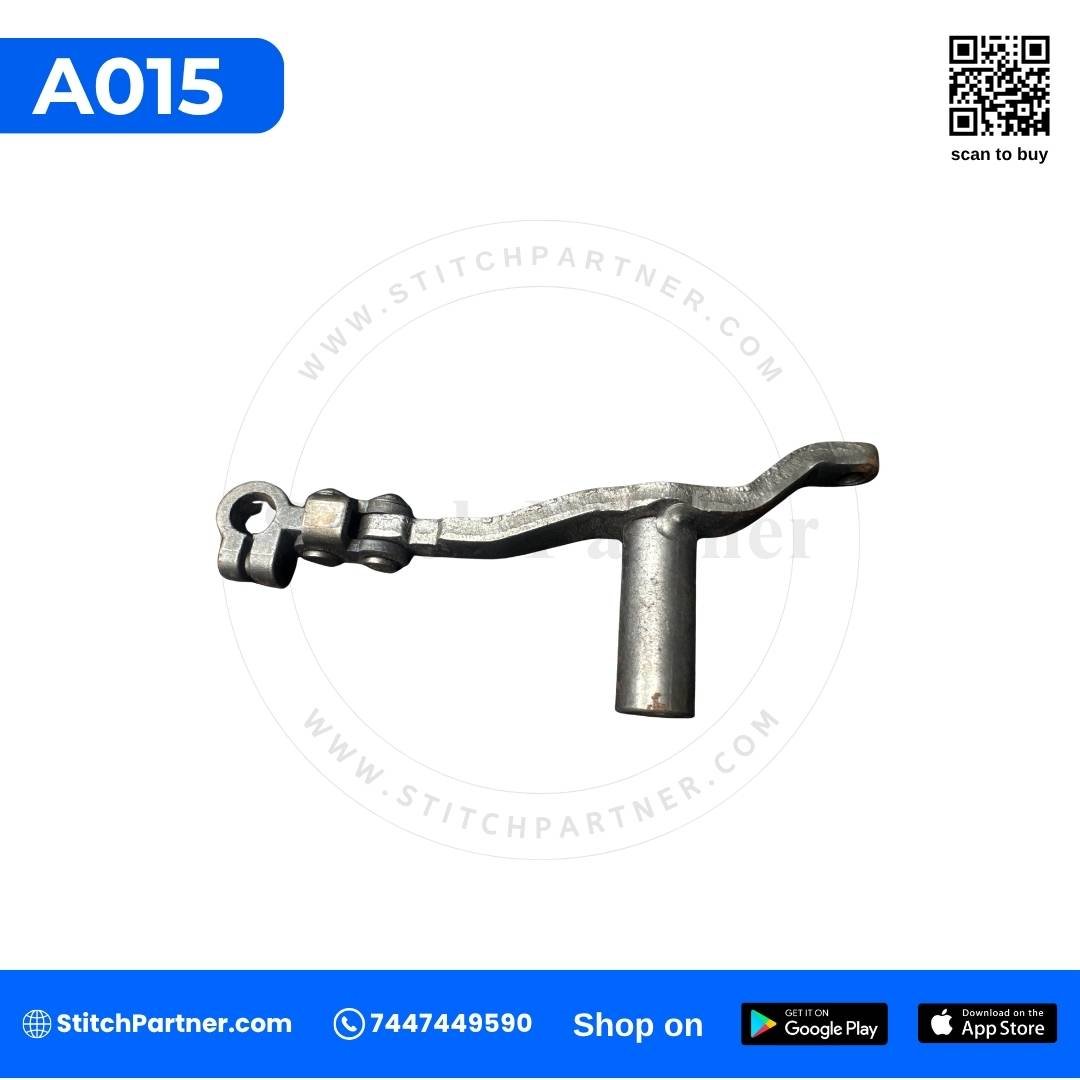

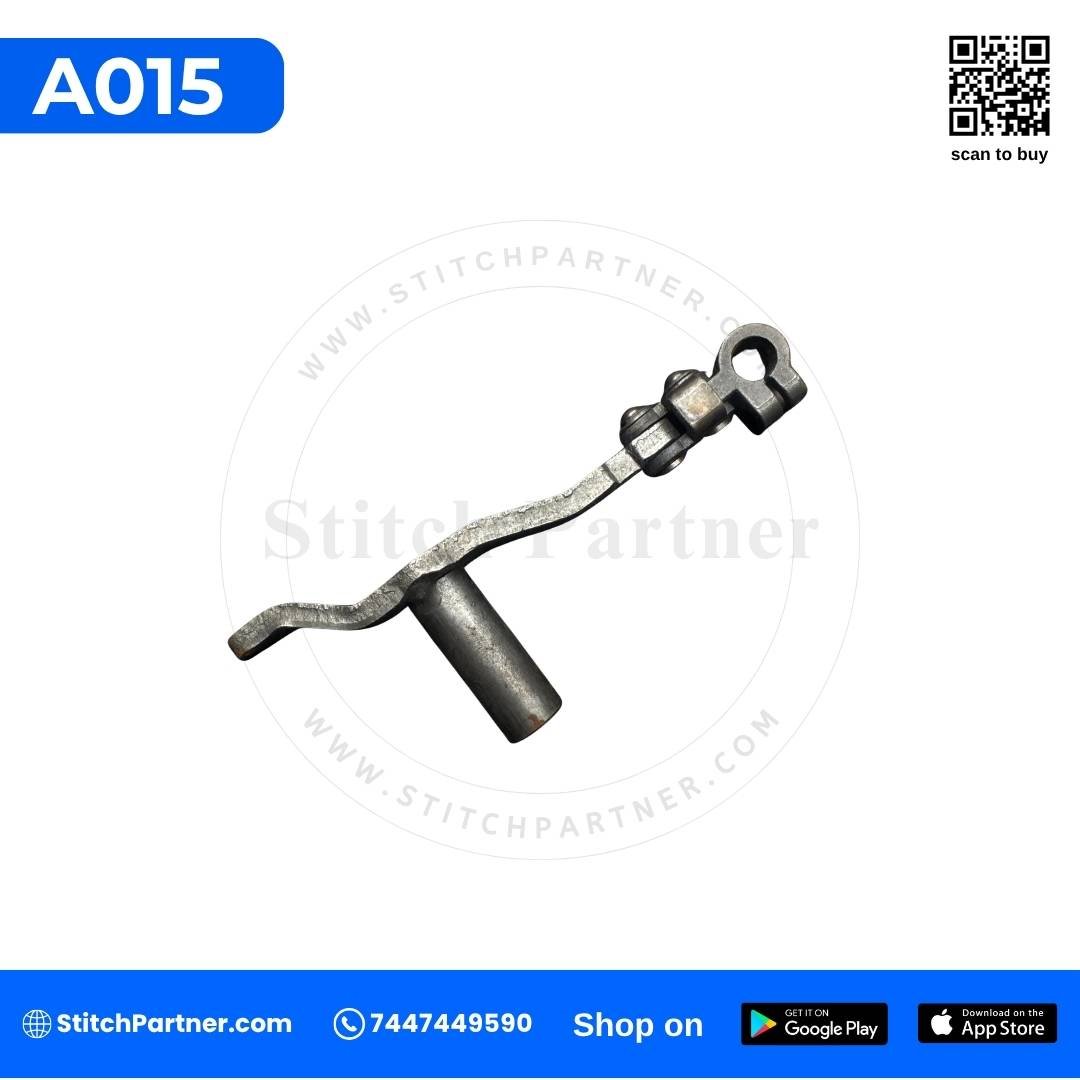

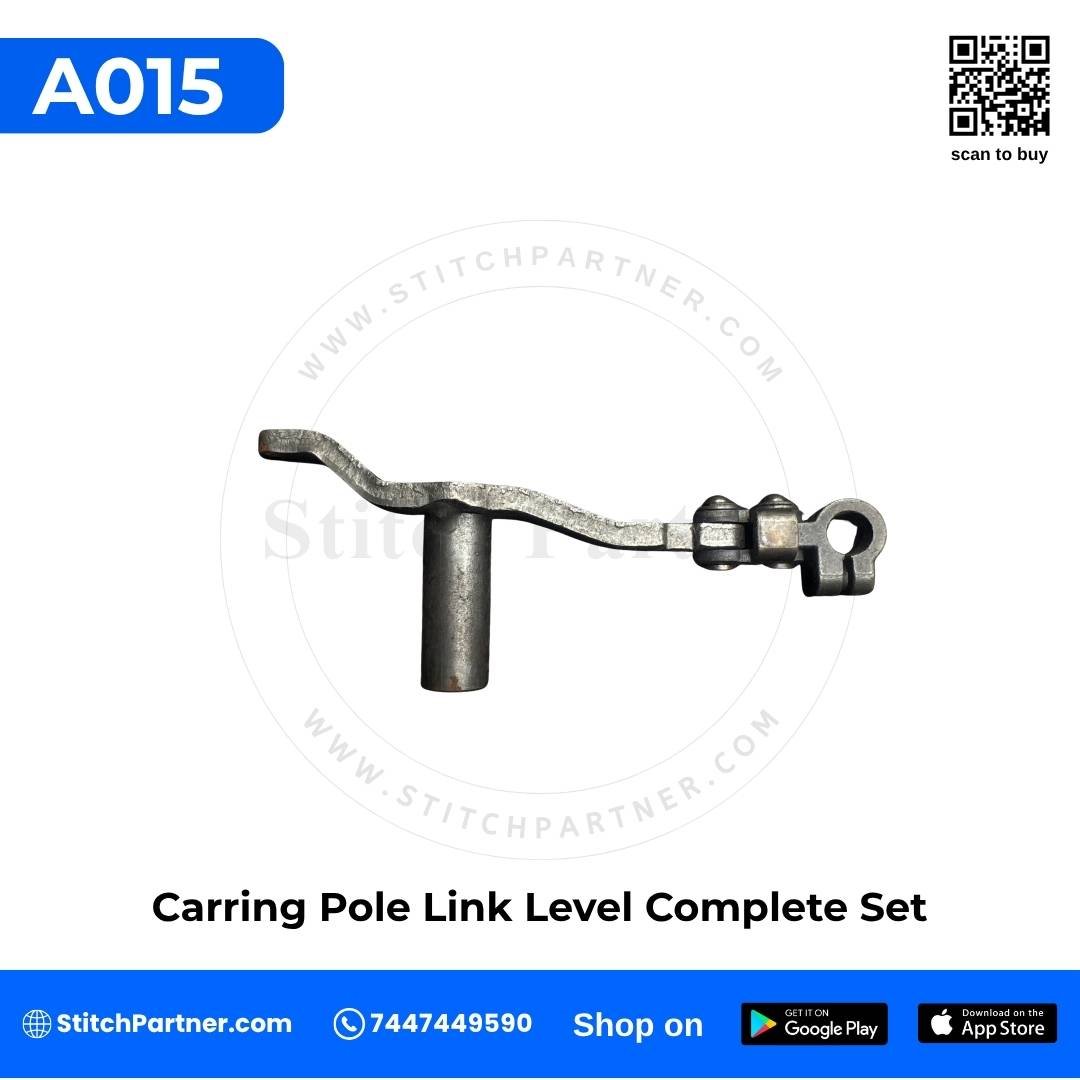

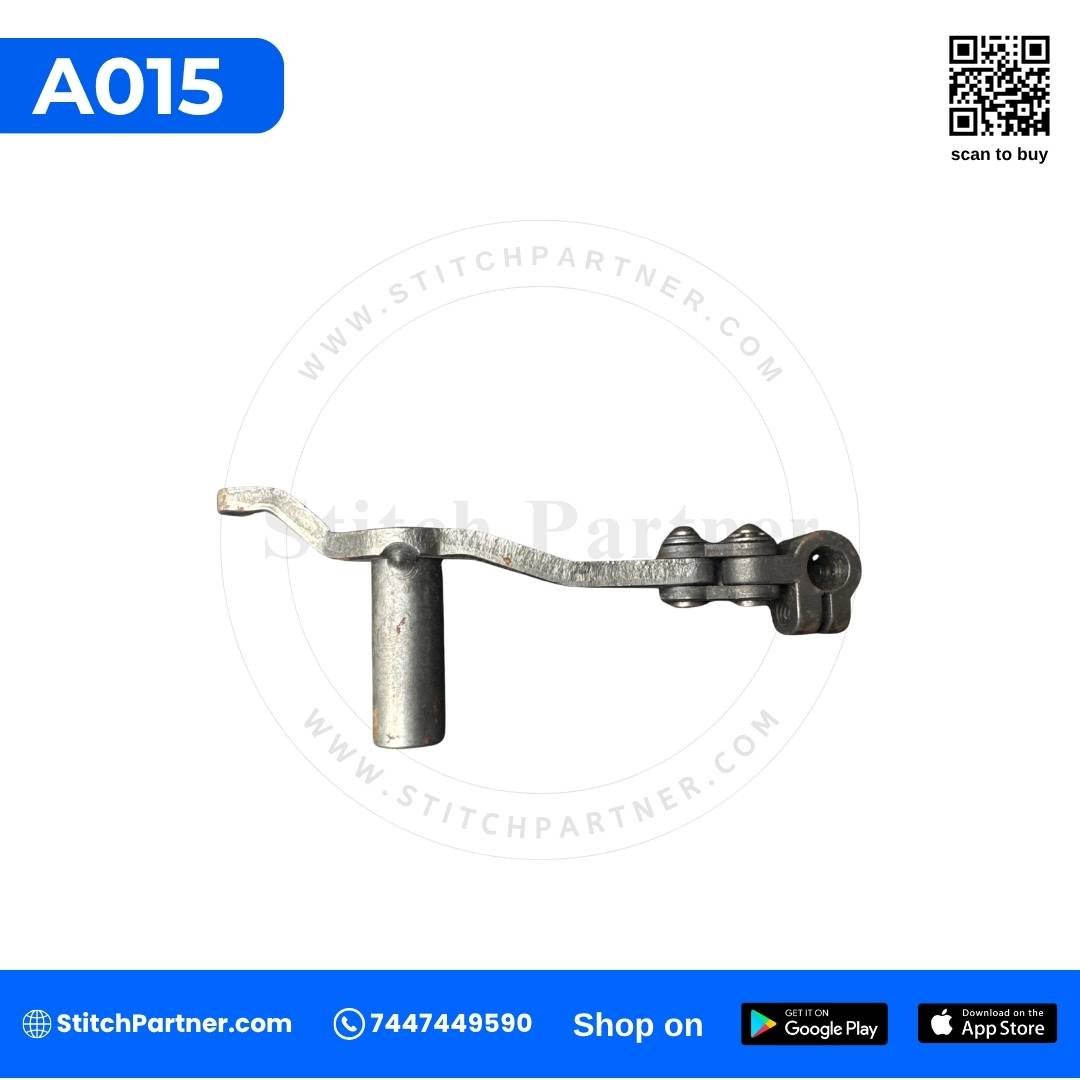

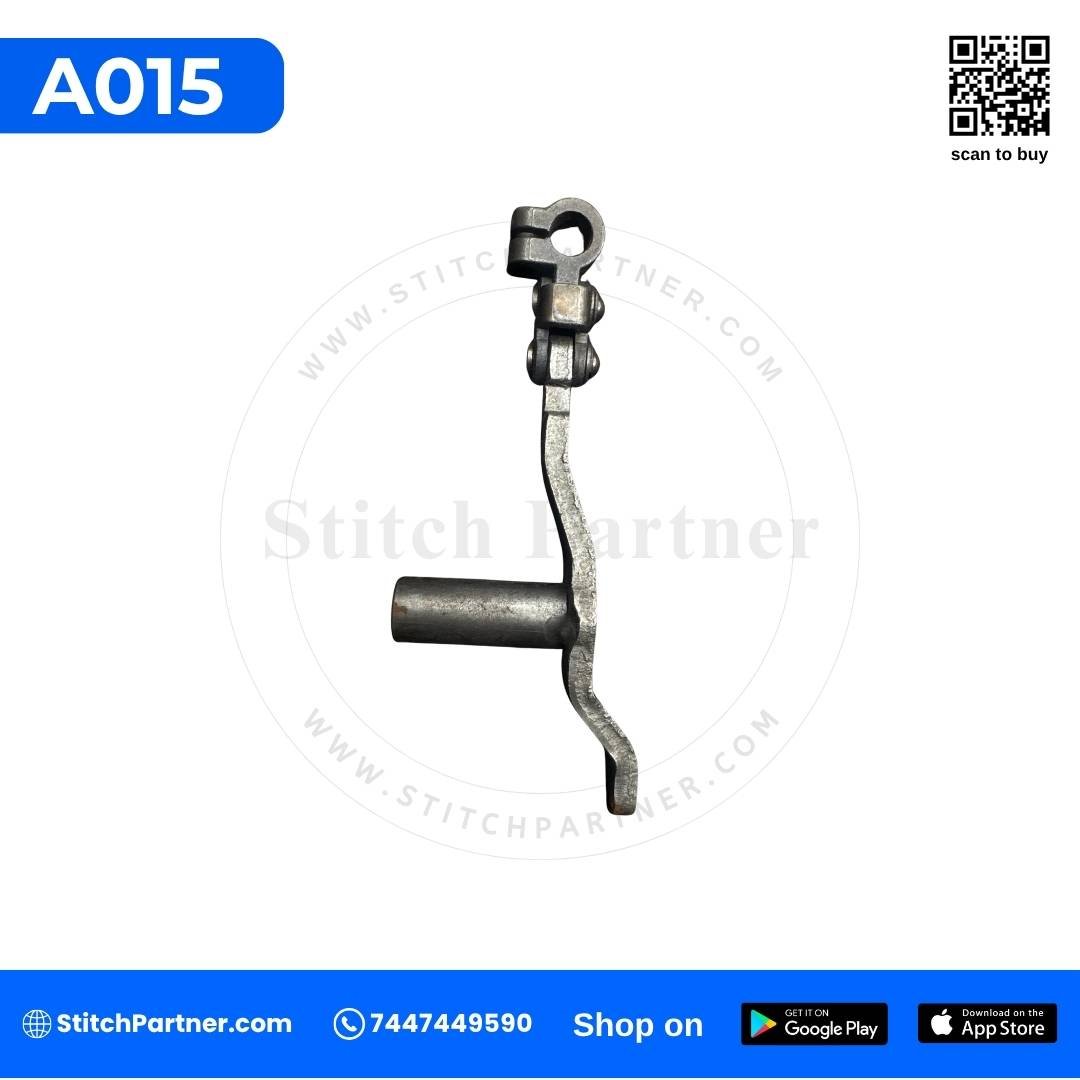

A015 Main Drive Link Lever & Carrying Pole Linkage Complete Set for GK9 Portable Bag Closer
The A015 Carrying Pole Link Lever Complete Set is a complete internal transmission assembly designed for GK9 portable bag closer machines. This precision-engineered replacement restores smooth mechanical motion between the main shaft and the machine’s stitching mechanism, helping maintain accurate feeding and reliable bag stitching performance.
This complete assembly includes the main drive link lever, pivot blocks, and integrated linkage components that are factory assembled for easier installation and dependable operation. It is suitable for standard GK9 portable bag closer machines, including GK9-2, GK9-8, GK9-18, GK9-18A, GK9-200, and GK9-500, as well as compatible handheld bag stitching machines from Newlong-style, Revo, Gemsy, Zoje, and other matching Chinese manufacturers.
Please cross-check your machine layout and confirm Part Number A015 before purchasing and installation.
What Does the A015 Link Lever Assembly Do?
The A015 linkage assembly converts the rotary motion of the main shaft into synchronized reciprocating movement that operates several internal sewing mechanisms simultaneously.
It helps coordinate:
- Needle bar movement
- Looper timing
- Feed mechanism
- Internal transmission linkage
- Continuous bag feeding
Proper synchronization is essential for producing consistent chain stitches while sewing filled bags at high operating speeds.
Key Features
Complete Ready-to-Install Assembly
The assembly includes the primary drive lever, linkage arms, pivot blocks, and factory-fitted connecting components, reducing the need to source individual replacement parts.
Precision Timing Performance
Manufactured to factory tolerances, the linkage minimizes backlash and unwanted mechanical play, helping maintain accurate synchronization between the needle, looper, and feed system.
Heavy-Duty Metal Construction
Made from durable cast alloy and forged steel components engineered to withstand continuous reciprocating motion during industrial bag stitching operations.
Factory Oil Channels
Integrated lubrication passages allow grease or sewing machine oil to reach moving joints efficiently, helping reduce friction and wear during long production runs.
Smooth Mechanical Operation
Proper alignment of internal linkage components contributes to quieter operation, smoother feeding, and reduced vibration throughout the machine.
Machine Compatibility
This replacement assembly is compatible with:
- GK9-2
- GK9-8
- GK9-18
- GK9-18A
- GK9-200
- GK9-500
Also compatible with many GK9-style handheld bag closer machines from:
- Newlong equivalent handheld models
- Revo
- Gemsy
- Zoje
- Other standard China-made portable bag stitching machines using the GK9 mechanical framework.
Always compare your existing assembly and verify Part Number A015 before ordering.
Machine Compatibility Table
| Machine Type | Compatible |
|---|---|
| GK9-2 | Yes |
| GK9-8 | Yes |
| GK9-18 | Yes |
| GK9-18A | Yes |
| GK9-200 | Yes |
| GK9-500 | Yes |
| Compatible GK9 Style Portable Bag Closers | Yes |
Suitable Bag Materials
Although this is not a fabric-contact component, it enables smooth stitching performance on machines used for closing:
- Woven polypropylene (PP) sacks
- Jute bags
- Burlap sacks
- Canvas bags
- Multi-wall paper bags
- Feed bags
- Grain sacks
- Fertilizer bags
- Rice bags
- Seed bags
- Chemical packaging bags
Why Replace a Worn Link Lever Assembly?
Replacing a damaged or worn linkage assembly can help restore:
- Accurate needle and looper timing
- Smooth internal power transmission
- Stable feed movement
- Reduced machine vibration
- Consistent chain stitch formation
- Longer service life for surrounding drive components
Installation Guide
- Disconnect the machine from its power source.
- Remove the machine side cover.
- Locate the existing A015 linkage assembly.
- Carefully remove worn linkage components.
- Install the replacement assembly following your machine’s service layout.
- Apply recommended machine lubricant to all pivot points.
- Rotate the machine manually to verify free movement.
- Test stitch before returning the machine to regular operation.
Frequently Asked Questions
Is this a complete replacement assembly?
Yes. This product includes the complete A015 carrying pole link lever assembly with integrated linkage components pre-fitted for installation.
Which machines is it compatible with?
It fits GK9-2, GK9-8, GK9-18, GK9-18A, GK9-200, GK9-500, and many compatible GK9-style portable bag closer machines.
Does it improve stitch quality?
Yes. A properly functioning linkage assembly helps maintain correct synchronization between the needle, looper, and feed system, supporting consistent chain stitch formation.
Is lubrication required after installation?
Yes. Lubricating the pivot points and oil channels helps reduce friction and supports smooth long-term operation.
How do I confirm compatibility?
Compare your existing assembly with your machine diagram and verify Part Number A015 before purchasing.
