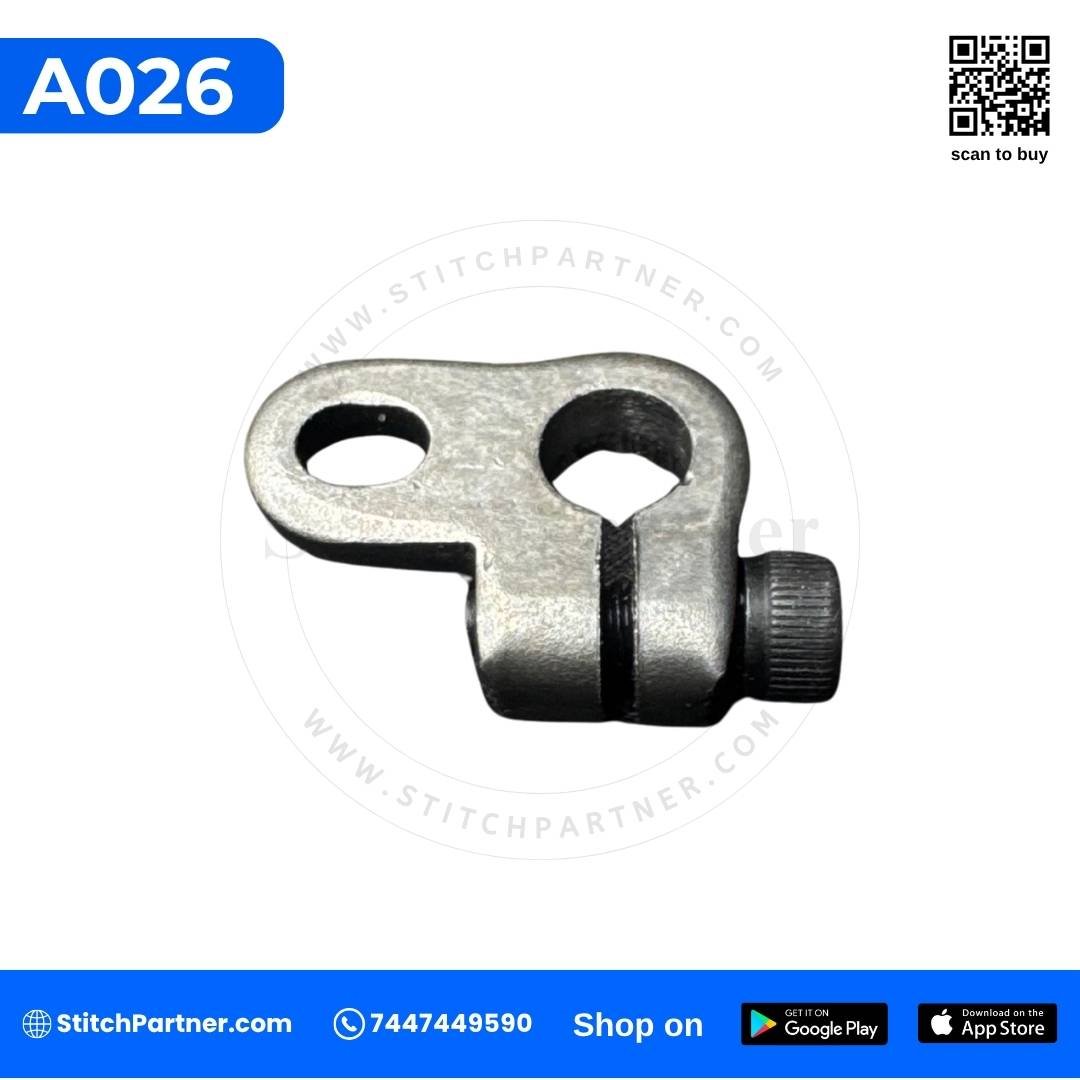

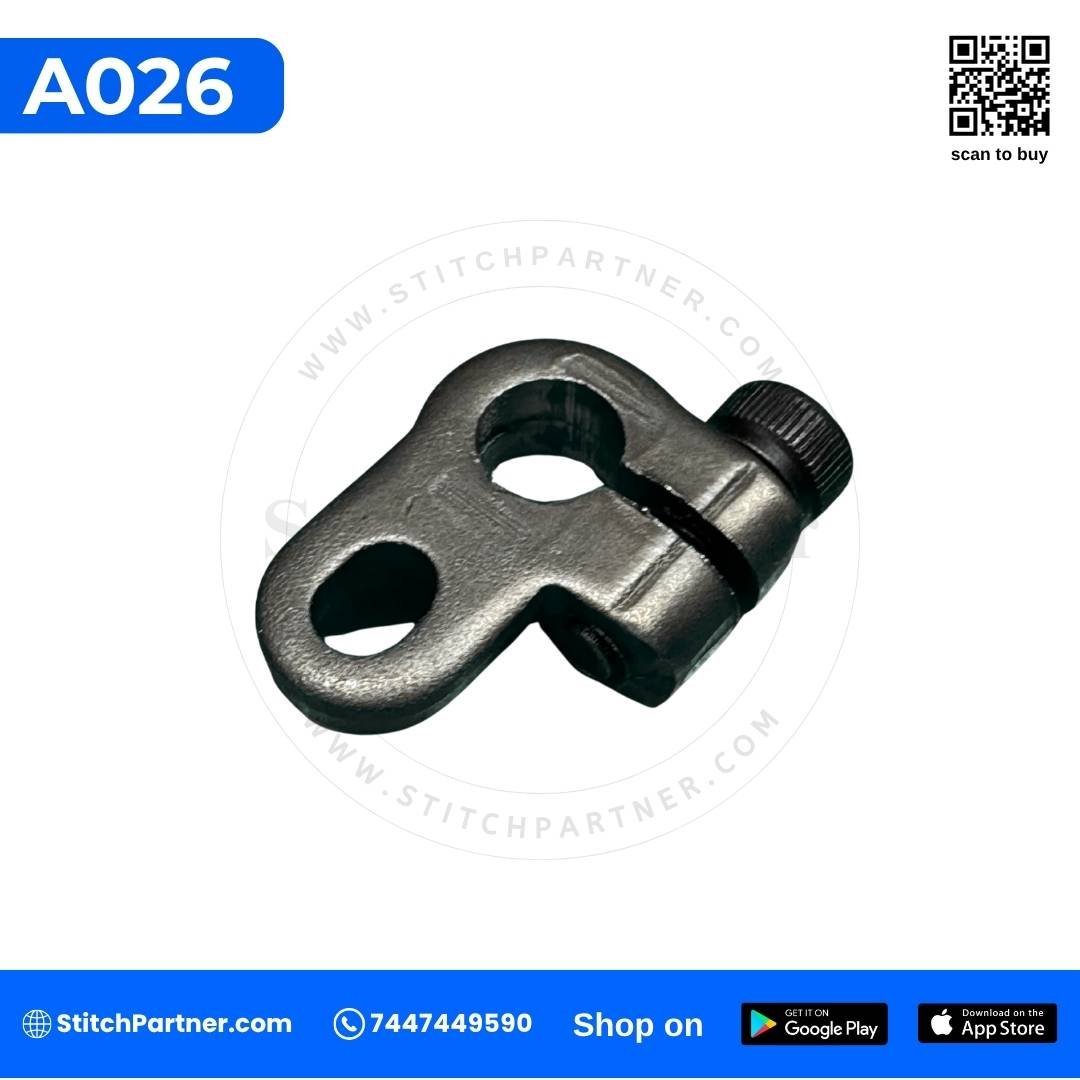

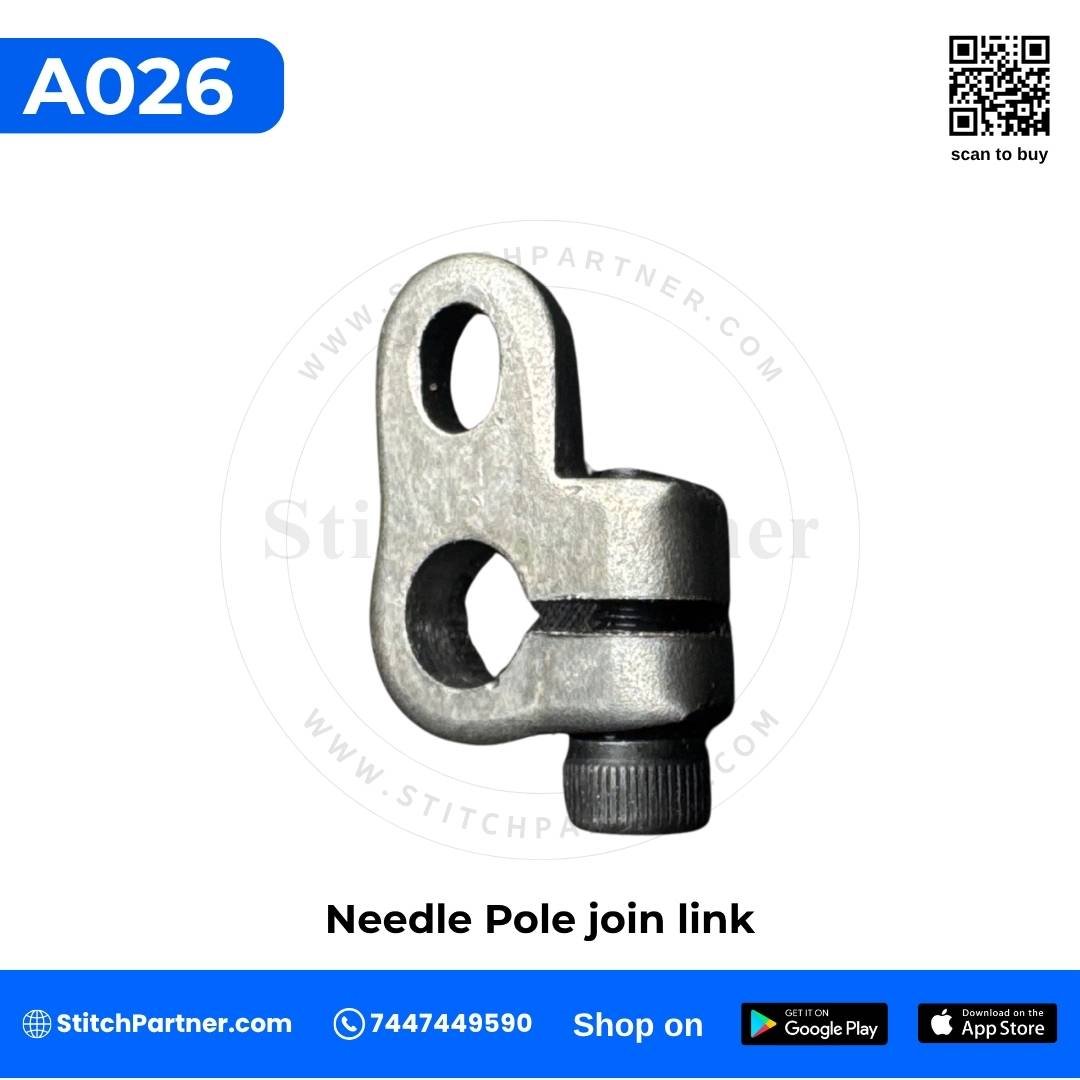

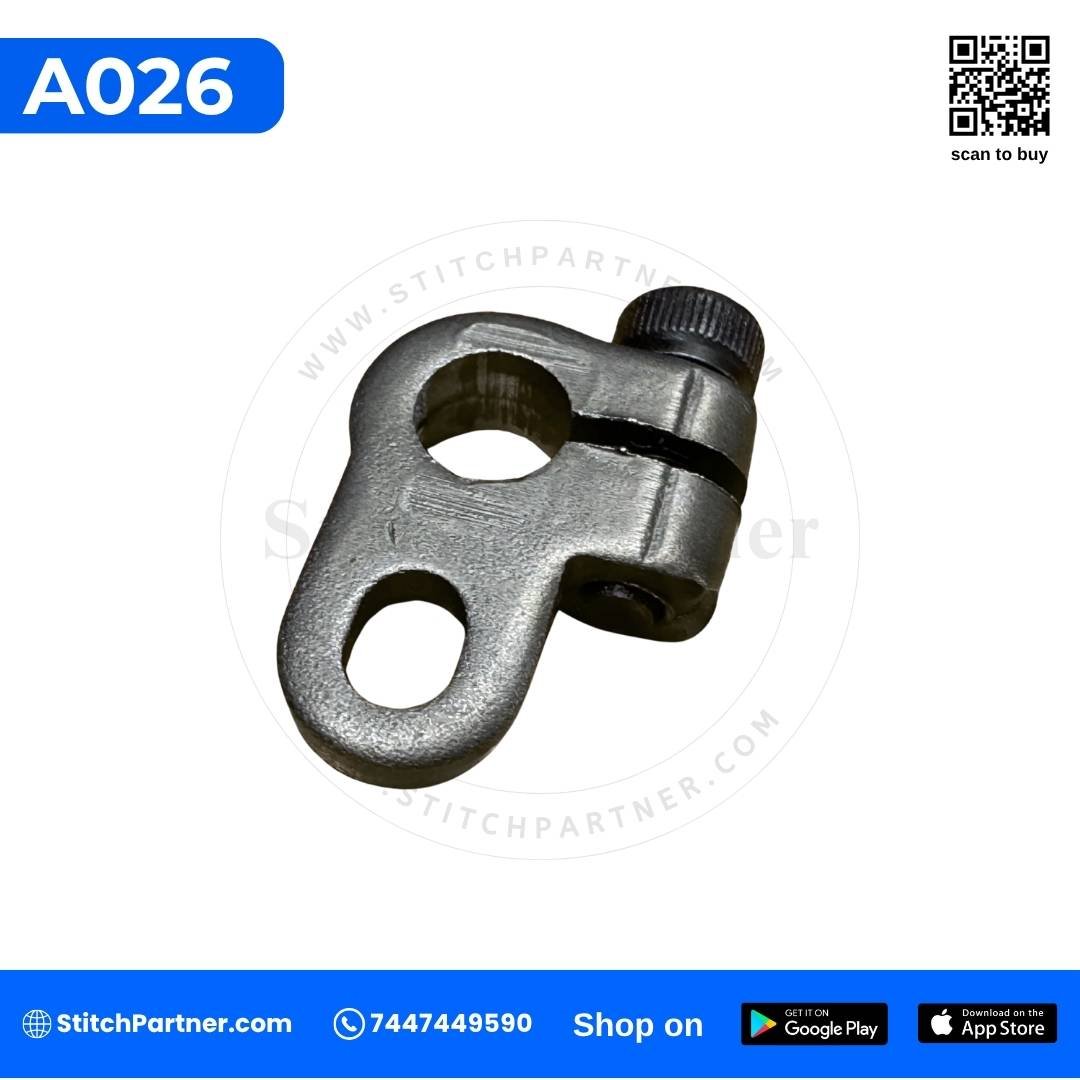

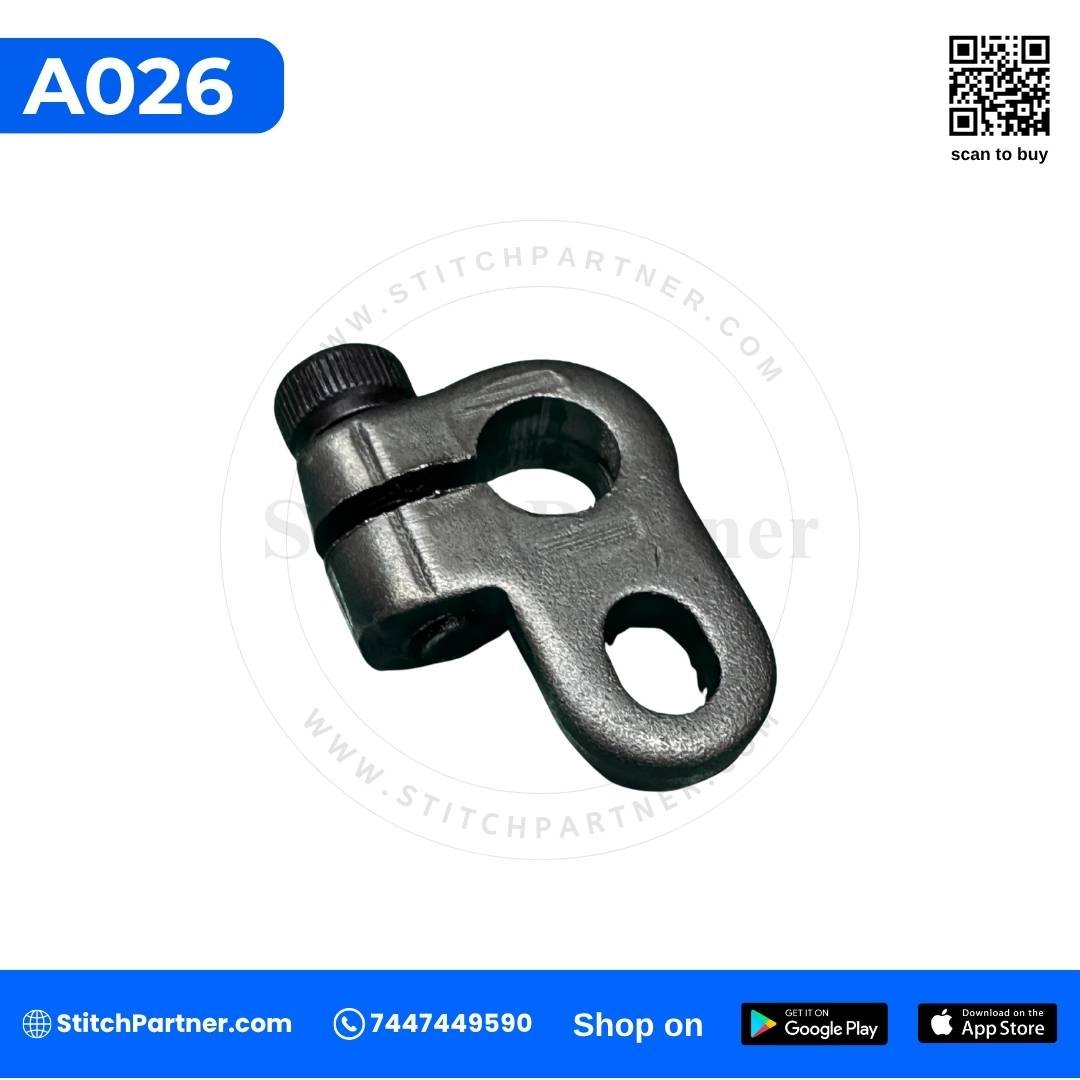

A026 Needle Bar Connection Link Assembly for GK9 Portable Bag Closer
The A026 Needle Bar Connection Link Assembly is a precision replacement component designed for GK9 portable bag closer machines. This internal transmission link connects the main eccentric driving shaft to the vertical needle bar, converting rotary motion into the precise up-and-down movement required for consistent bag stitching.
Manufactured from high-tensile forged steel, this component helps maintain accurate needle movement while reducing vibration and mechanical play during high-speed operation. It is an ideal replacement for worn or damaged connecting links that can cause skipped stitches, needle deflection, timing issues, or uneven seam quality.
Designed to match standard GK9 mechanical specifications, this replacement part offers dependable performance for packaging lines, warehouses, agricultural operations, flour mills, feed plants, fertilizer packaging, and industrial bag sealing applications.
Please cross-check Part Number A026 with your machine’s parts manual before purchasing.
Why Replace the Needle Bar Connection Link?
The needle bar connection link is one of the most important motion transfer components inside a portable bag closer. Every rotation of the drive shaft is transferred through this link to move the needle bar vertically with precise timing.
As the machine operates continuously, the connecting pivots experience constant mechanical stress. Excessive wear can introduce unwanted movement into the drive system, leading to:
- Skipped stitches
- Needle timing issues
- Needle deflection
- Excess vibration
- Irregular stitch formation
- Premature wear of surrounding components
Replacing a worn A026 connection link restores smooth mechanical movement and helps maintain reliable stitching performance.
Key Features
Precision-Machined Pivot Bores
Factory-machined pivot holes provide an accurate fit with the needle bar and drive crank pins, minimizing unwanted movement and ensuring consistent needle travel.
High-Tensile Forged Steel Construction
Manufactured from durable structural alloy steel to withstand continuous reciprocating loads generated during operation at speeds of up to approximately 2,500 RPM.
Integrated Lubrication Channels
Built with standard lubrication passages and oil recesses that help distribute lubricant across moving contact points, reducing friction and operating temperature.
Accurate Timing Performance
Designed to minimize mechanical backlash within the drive linkage, supporting stable needle timing and smooth stitch formation during heavy-duty bag closing.
Direct Replacement Design
Engineered to match the original GK9 drive linkage dimensions for straightforward installation when replacing the original A026 component.
Machine Compatibility
This replacement connection link is compatible with portable bag closer machines using the standard GK9 mechanical platform.
| Machine Type | Compatible |
|---|---|
| GK9-2 | Yes |
| GK9-8 | Yes |
| GK9-18 | Yes |
| GK9-18A | Yes |
| GK9-200 | Yes |
| GK9-500 | Yes |
It is also suitable for many compatible handheld bag closer machines manufactured under brands such as:
- Newlong equivalent handheld styles
- Revo
- Gemsy
- Zoje
- Standard China-made portable bag stitching machines using GK9-compatible mechanisms
Always verify Part Number A026 before ordering.
Suitable Packaging Materials
Although this component does not directly contact the material, it enables accurate needle movement when stitching heavy industrial packaging, including:
- Woven polypropylene (PP) sacks
- Jute bags
- Burlap bags
- Canvas bags
- Multi-wall paper bags
- Feed bags
- Rice bags
- Grain sacks
- Fertilizer bags
- Seed bags
Common Applications
Suitable for use in:
- Rice mills
- Flour mills
- Feed processing plants
- Fertilizer packaging
- Agricultural packaging
- Warehouses
- Food packaging units
- Textile packaging
- Chemical bag sealing
- Industrial sack closing operations
Installation Guide
- Disconnect the machine from its power source.
- Open the machine housing.
- Remove the worn A026 connection link.
- Inspect the crank pin and needle bar pivots for wear.
- Install the new connection link in the original orientation.
- Lubricate all pivot points using sewing machine oil.
- Rotate the mechanism manually to confirm smooth movement.
- Reassemble the machine and test stitch timing before regular operation.
Frequently Asked Questions
What does the A026 Needle Bar Connection Link do?
It transfers rotary motion from the eccentric drive shaft into the vertical movement of the needle bar, allowing the machine to form consistent stitches.
Which machines use the A026 connection link?
It fits many GK9 portable bag closer models including GK9-2, GK9-8, GK9-18, GK9-18A, GK9-200, GK9-500, and many compatible handheld bag closer machines.
What are the signs of a worn connection link?
Common symptoms include skipped stitches, excessive vibration, loose needle movement, poor timing, uneven stitching, and increased mechanical noise.
Is this an external replacement part?
No. The A026 is an internal transmission component located inside the machine’s upper drive assembly.
Should I lubricate the part after installation?
Yes. Proper lubrication helps reduce friction, supports smooth operation, and extends the service life of the moving linkage.
How do I confirm compatibility?
Verify the machine model and compare Part Number A026 with your existing parts manual before purchasing.
