A049 Hook Guide Axis for GK9 Portable Bag Closer Machine

A049 Hook Guide Axis for GK9 Portable Bag Closer Machine

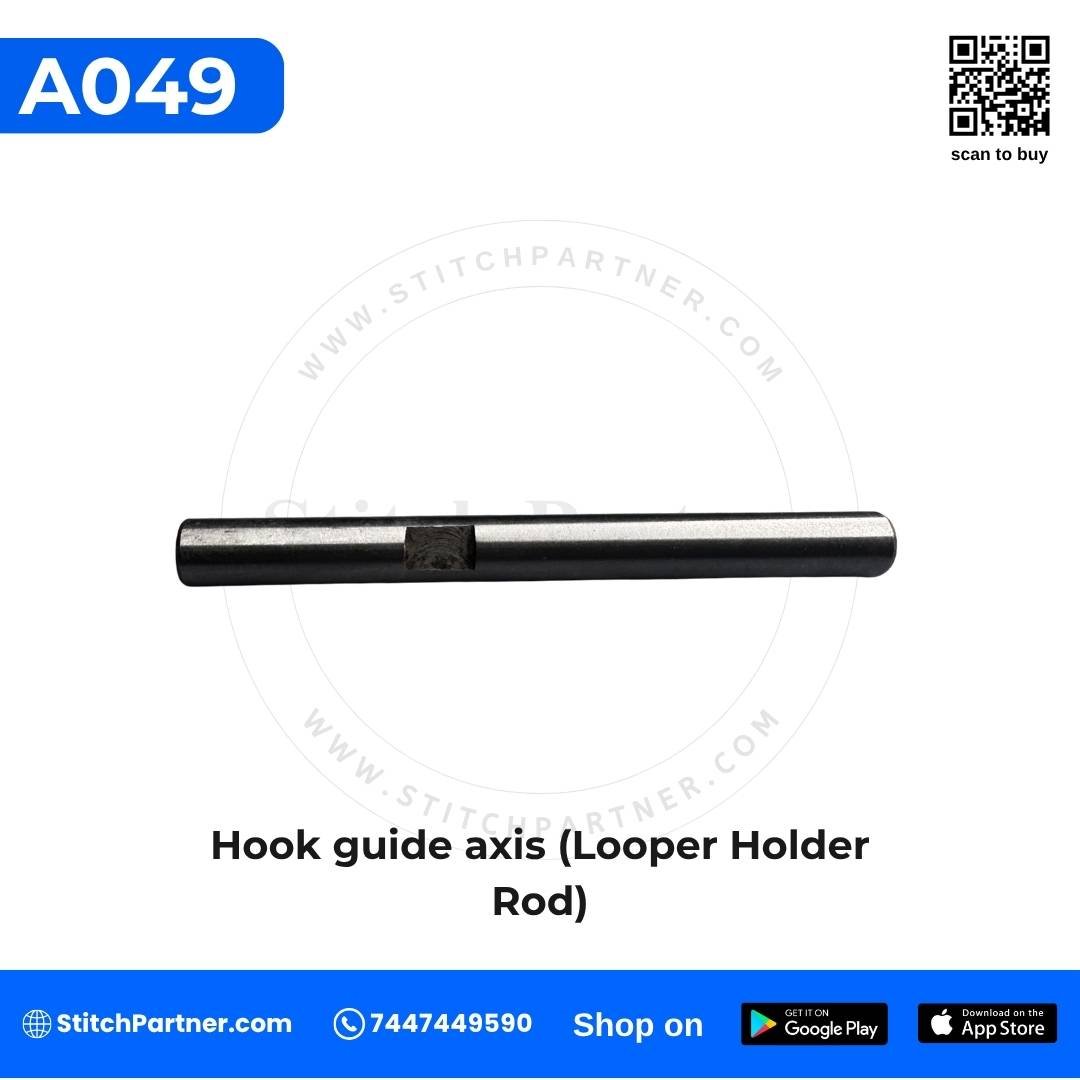

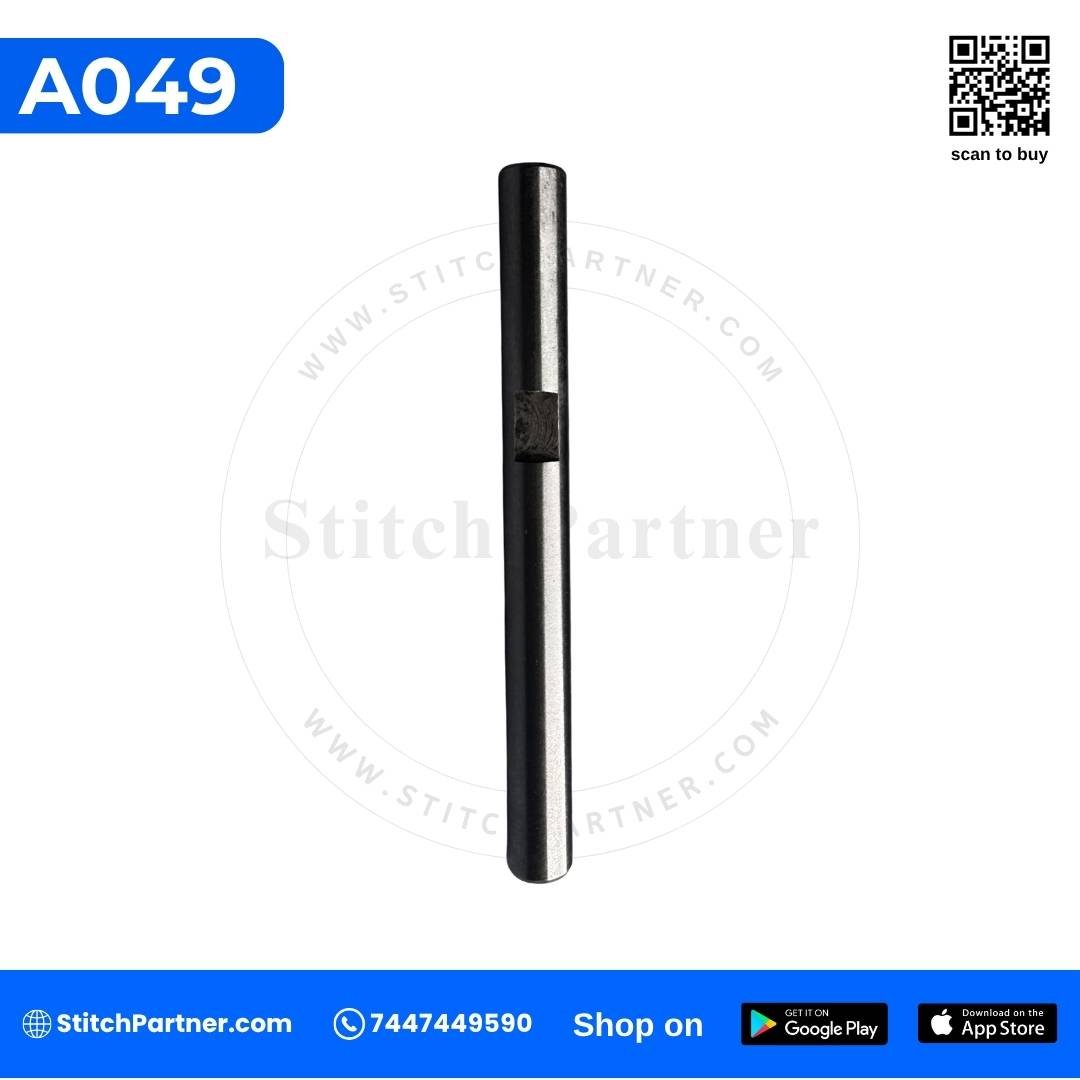

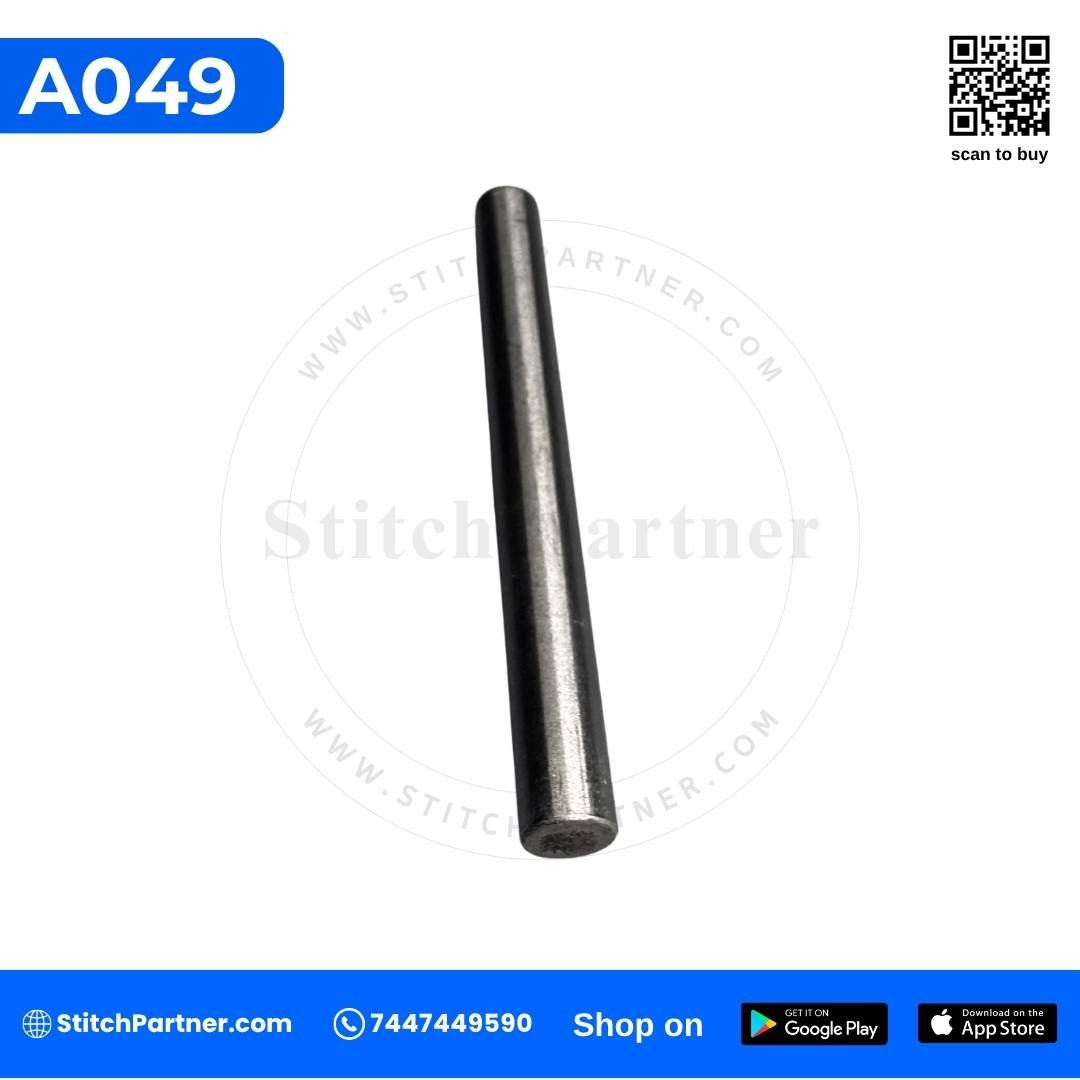

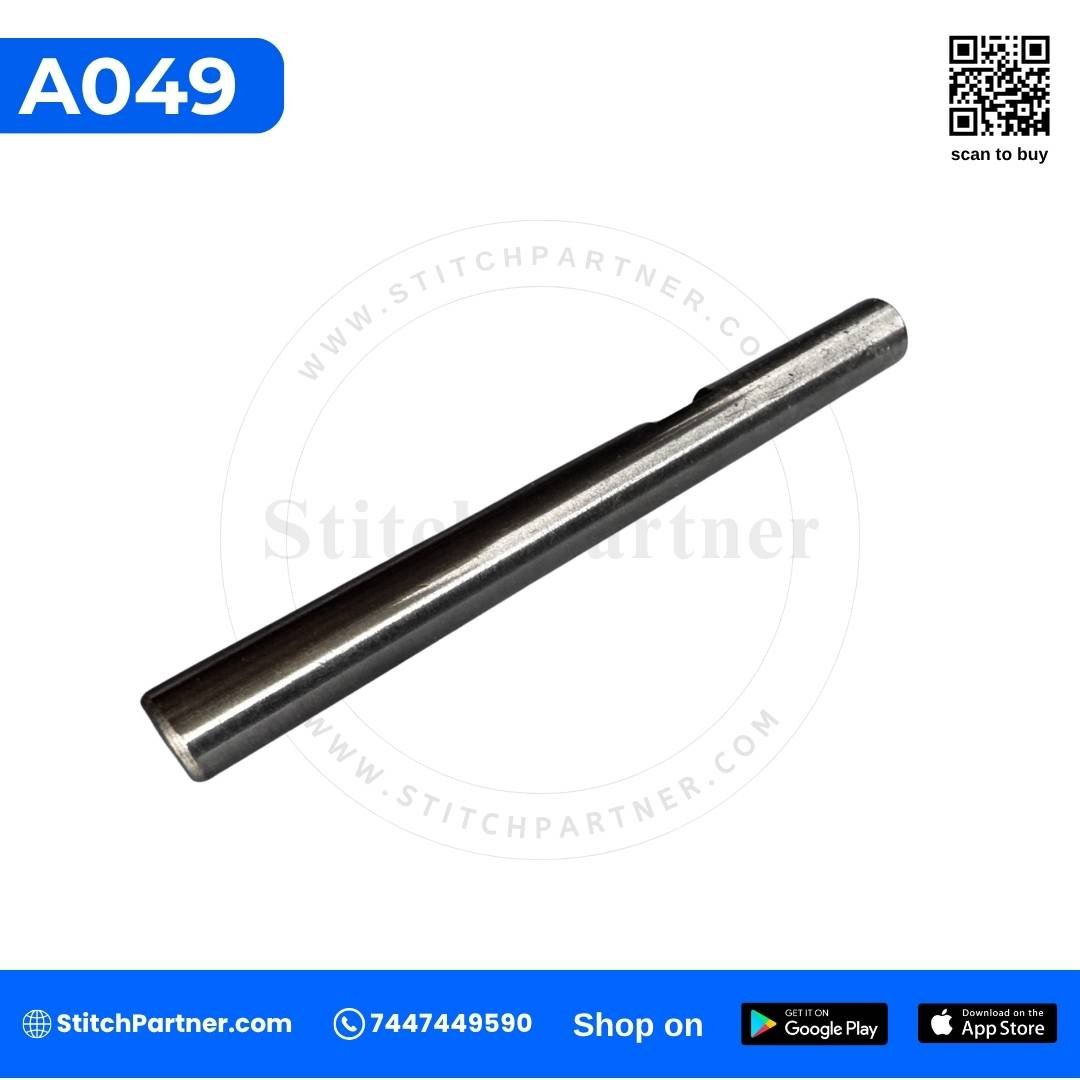

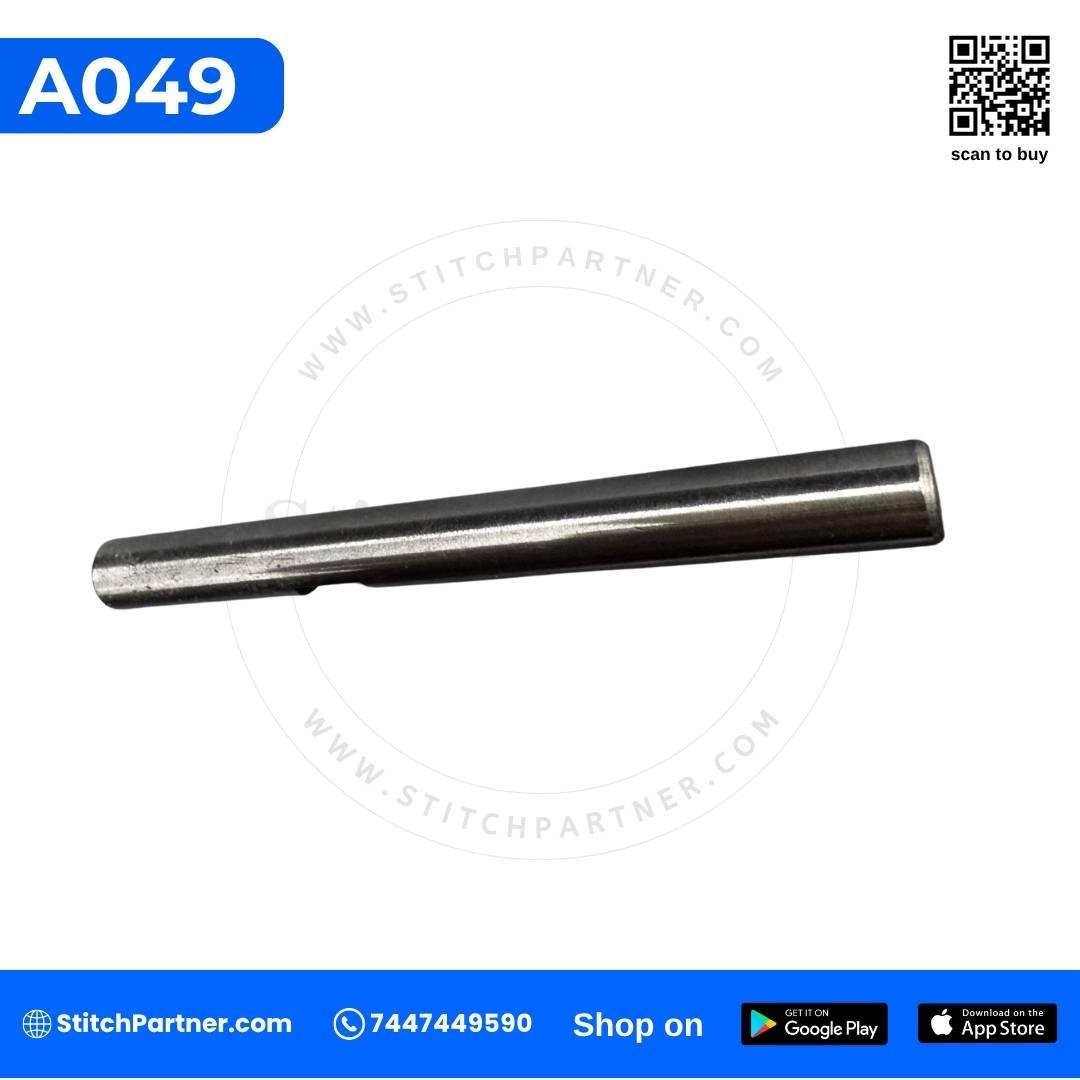

The A049 Hook Guide Axis (Looper Holder Rod) is a precision replacement shaft designed for the lower looper mechanism of GK9 portable bag closer machines. It securely supports and guides the looper holder, allowing the looper to move accurately beneath the throat plate and catch the needle thread to create consistent chain stitches.

Manufactured to OEM specifications, this replacement shaft restores precise looper alignment, minimizes vibration, and helps reduce skipped stitches caused by worn or damaged guide shafts. It is an ideal replacement during machine servicing or complete looper assembly overhauls.

Compatible with a wide range of GK9 handheld portable bag closer machines, this component installs as a direct replacement without requiring machining or modification.

Please cross-check your machine’s parts manual and verify the shape of your existing part before purchasing.

What Does the A049 Hook Guide Axis Do?

The Hook Guide Axis serves as the supporting shaft for the looper holder assembly inside the machine. During sewing, the looper moves back and forth at high speed beneath the needle plate to catch the needle thread and form a secure chain stitch.

A worn, bent, or damaged guide shaft can cause:

• Skipped stitches
• Needle strikes
• Poor loop formation
• Excessive looper movement
• Premature wear of surrounding components
• Inconsistent bag closing performance

Replacing the shaft restores smooth looper movement and helps maintain proper stitch timing.

Key Features

• Precision-ground shaft for accurate looper alignment
• OEM-equivalent dimensions for direct replacement
• Hardened heat-treated alloy steel construction
• Excellent resistance to wear and bending
• Micro-polished surface reduces friction during operation
• Helps minimize shaft play and vibration
• Supports accurate chain stitch formation
• Designed for long service life in demanding production environments
• Easy installation during machine repair or overhaul

Machine Compatibility

This replacement Hook Guide Axis is designed for portable bag closer machines based on the GK9 mechanical platform.

Compatible with:

• GK9-2
• GK9-8
• GK9-18
• GK9-18A
• GK9-200
• GK9-500

Also compatible with many equivalent handheld bag closer machines from:

• Newlong equivalent handheld models
• Revo
• Gemsy
• Zoje
• Other compatible China-made portable bag stitching machines

Note: Compatibility may vary between machine revisions. Please compare your existing part with your machine’s parts manual before ordering.

Suitable Bag Materials

Although this is an internal mechanical component, it supports reliable stitching on machines commonly used for closing:

• Woven polypropylene (PP) sacks
• Jute bags
• Burlap bags
• Canvas bags
• Kraft paper bags
• Multi-wall paper sacks
• Feed bags
• Grain bags
• Fertilizer bags
• Seed bags
• Sugar bags
• Cement bags
• Chemical packaging bags

Why Choose This Replacement Shaft?

The looper mechanism performs thousands of reciprocating movements every hour. Even slight shaft wear can affect stitch quality and increase stress on surrounding components.

This replacement A049 Hook Guide Axis offers:

• Stable looper positioning
• Reduced internal friction
• Improved timing consistency
• Longer component life
• Reliable chain stitch formation
• Smooth operation during continuous production

It is an excellent choice for preventive maintenance and professional machine rebuilding.

Installation Guide

1. Disconnect the machine from its power source.
2. Remove the covers to access the looper assembly.
3. Remove the worn Hook Guide Axis.
4. Inspect the looper holder and bushings for wear.
5. Install the new A049 shaft.
6. Ensure the shaft moves smoothly without binding.
7. Reassemble the machine.
8. Verify looper timing before returning the machine to operation.

Professional installation is recommended whenever looper timing adjustments are required.

Machine Compatibility Table

Frequently Asked Questions

What is the function of the A049 Hook Guide Axis?

The A049 Hook Guide Axis supports and guides the looper holder so the looper can accurately catch the needle thread beneath the needle plate, creating a consistent chain stitch.

When should this shaft be replaced?

Replace it if it becomes bent, worn, scored, loose, or causes excessive looper movement, skipped stitches, or timing issues.

Is this an OEM-size replacement?

Yes. It is manufactured to match the original OEM dimensions for direct replacement without modification.

Does this part affect stitch quality?

Yes. A properly aligned Hook Guide Axis helps maintain accurate looper movement, improving stitch consistency and reducing skipped stitches.

Which machines is this compatible with?

It fits GK9-2, GK9-8, GK9-18, GK9-18A, GK9-200, GK9-500, and many compatible GK9-style portable bag closer machines.

Can I install this myself?

Experienced users can replace the shaft, but checking and adjusting looper timing after installation is recommended for best performance.
