Description

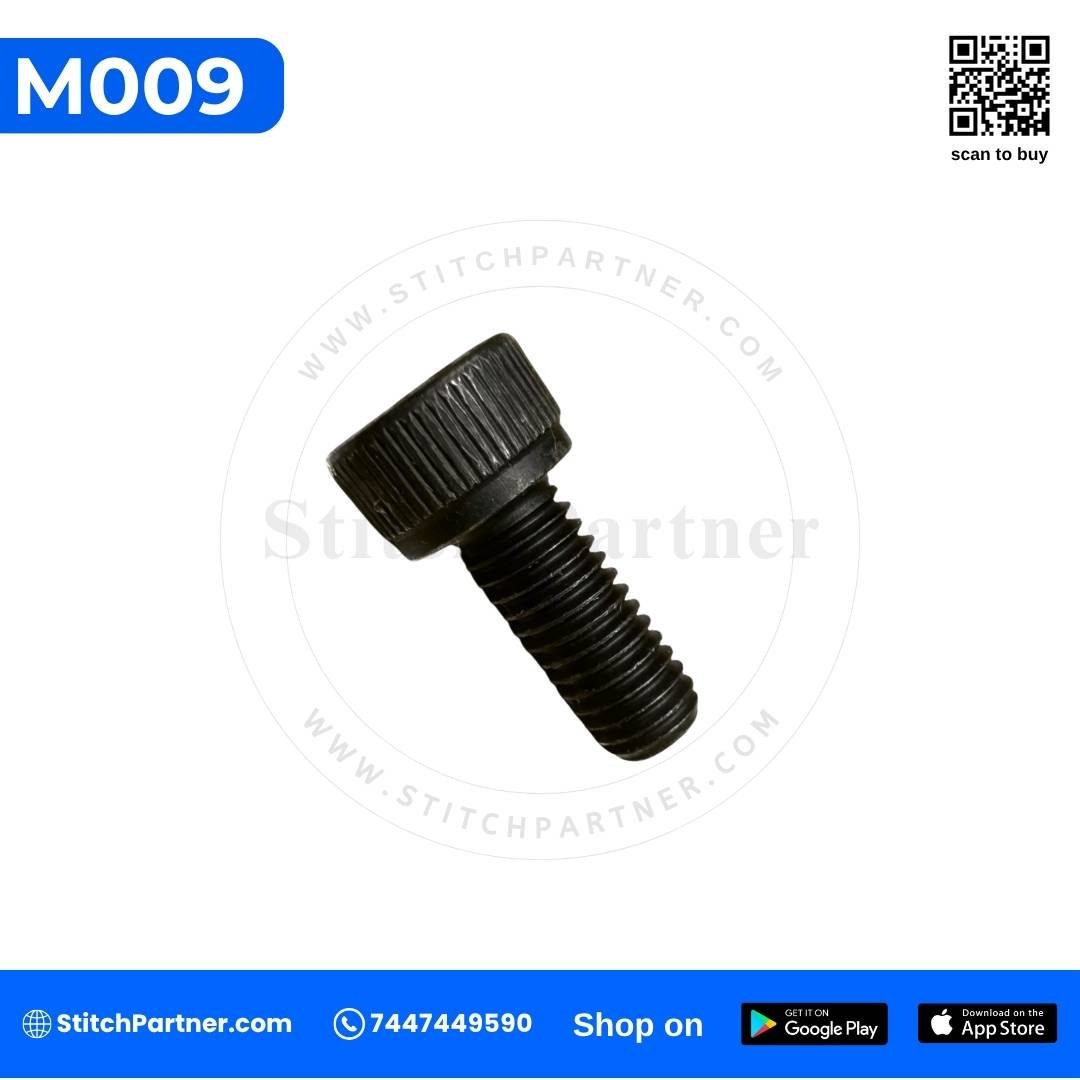

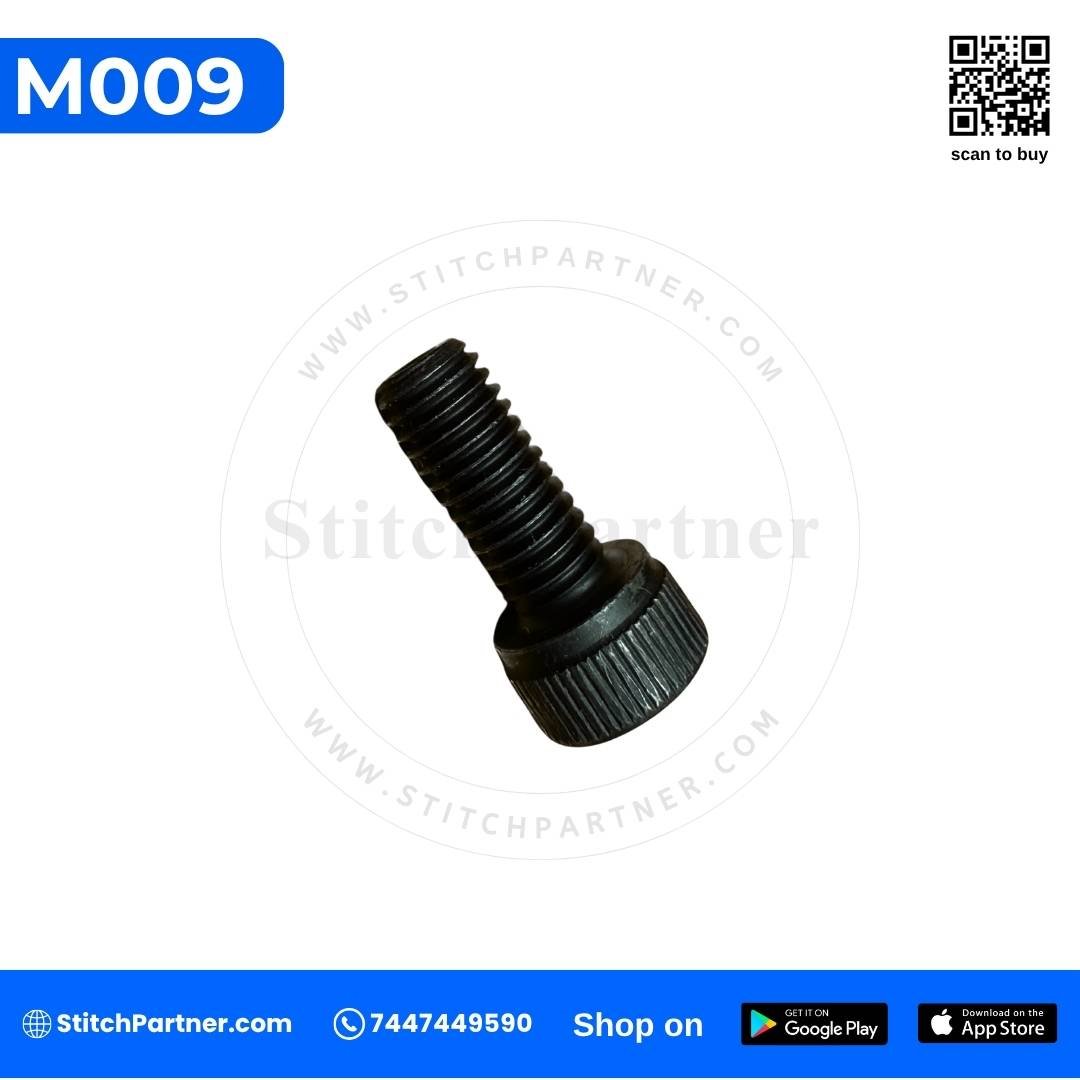

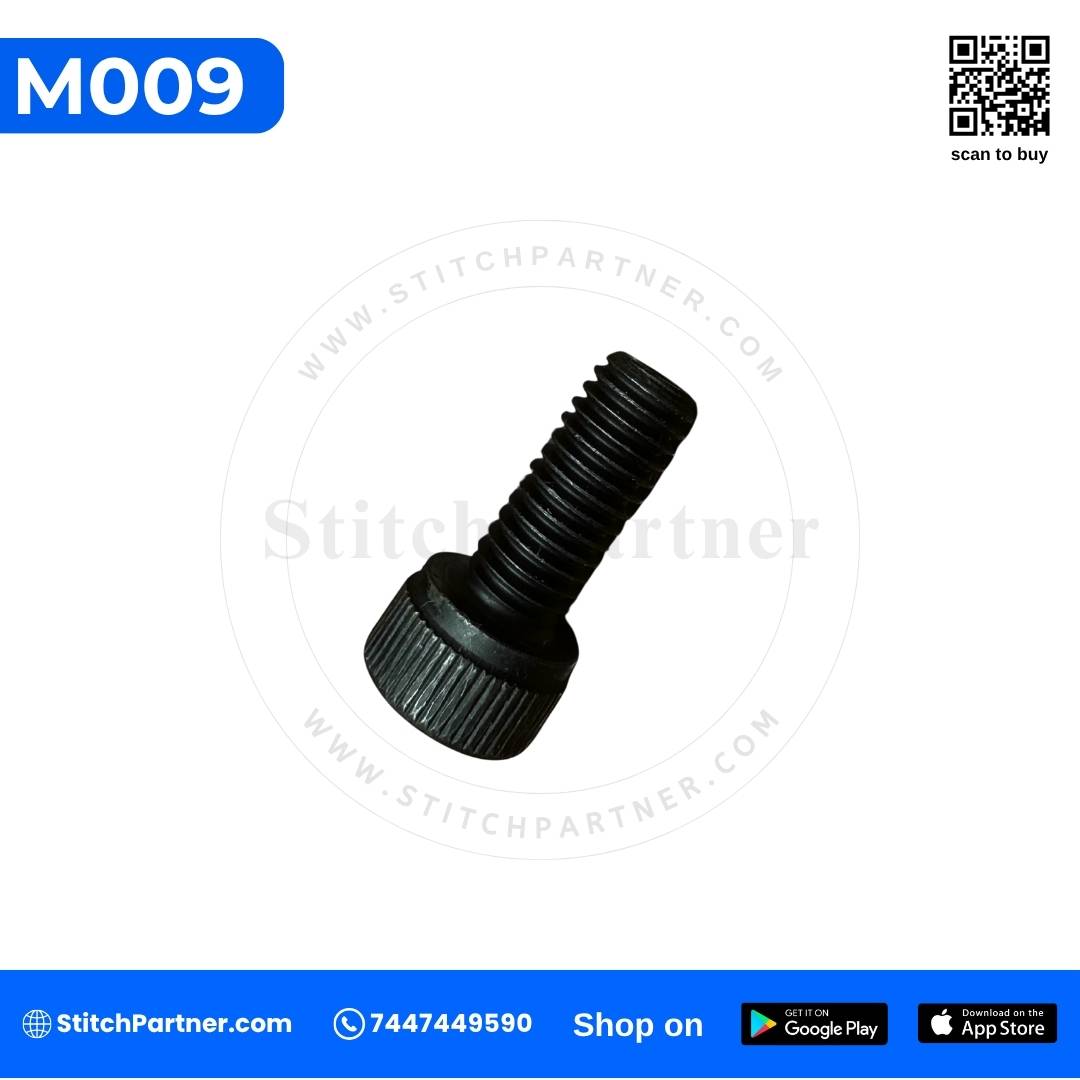

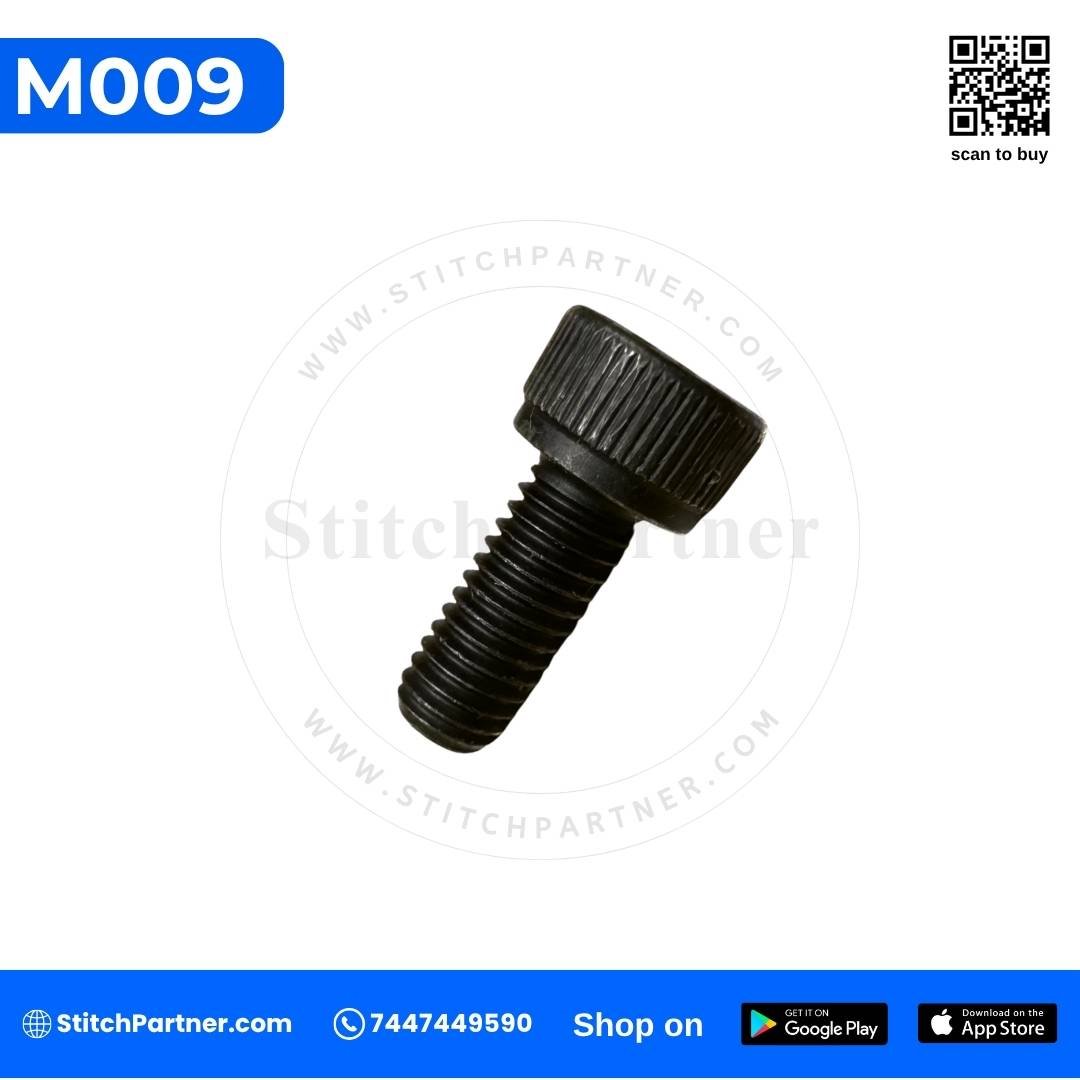

The M009 Socket Head Cap Screw M5x10 (Looper & Thread Rod Screw) is a precision replacement fastener designed for GK9 portable bag closer machines. It securely locks critical moving components such as the looper mechanism, thread stand, and thread guide assemblies, helping maintain accurate stitch formation and reliable machine operation. Whether you’re replacing a worn screw or performing preventive maintenance, this M5x10 inner hexagonal screw provides a secure fit for compatible GK9 handheld bag stitching machines.
Its internal hex (Allen) drive allows easy tightening while the low-profile cylindrical head fits neatly within the machine assembly. Proper installation helps reduce unwanted movement, maintain looper timing, and support smooth thread feeding during continuous bag stitching.
Key Features
- Precision M5 metric thread with 10mm thread length
- Socket head cap screw with internal hex drive
- Securely fastens looper and thread guide assemblies
- Helps maintain proper looper alignment
- Prevents thread stand movement during operation
- Suitable for machine servicing and spare replacement
- Durable replacement for worn or damaged original fasteners
Compatible Machines
The M009 screw is compatible with handheld portable bag closer machines built on the GK9 mechanical platform, including:
- GK9-2
- GK9-8
- GK9-18
- GK9-18A
- GK9-200
- GK9-350
- GK9-500
- GK9-900 (including cordless battery models)
- GK9-1001
It is also compatible with many equivalent portable bag closer machines from brands such as:
- Newlong-style handheld bag closers
- Flyingman
- Revo
- Gemsy
- Zoje
- Moonstar
- Other standard China-made portable bag stitching machines
Please cross-check part number M009 and your existing screw before ordering to ensure compatibility.
Where This Screw Is Used
The M009 screw is commonly installed in several important machine assemblies, including:

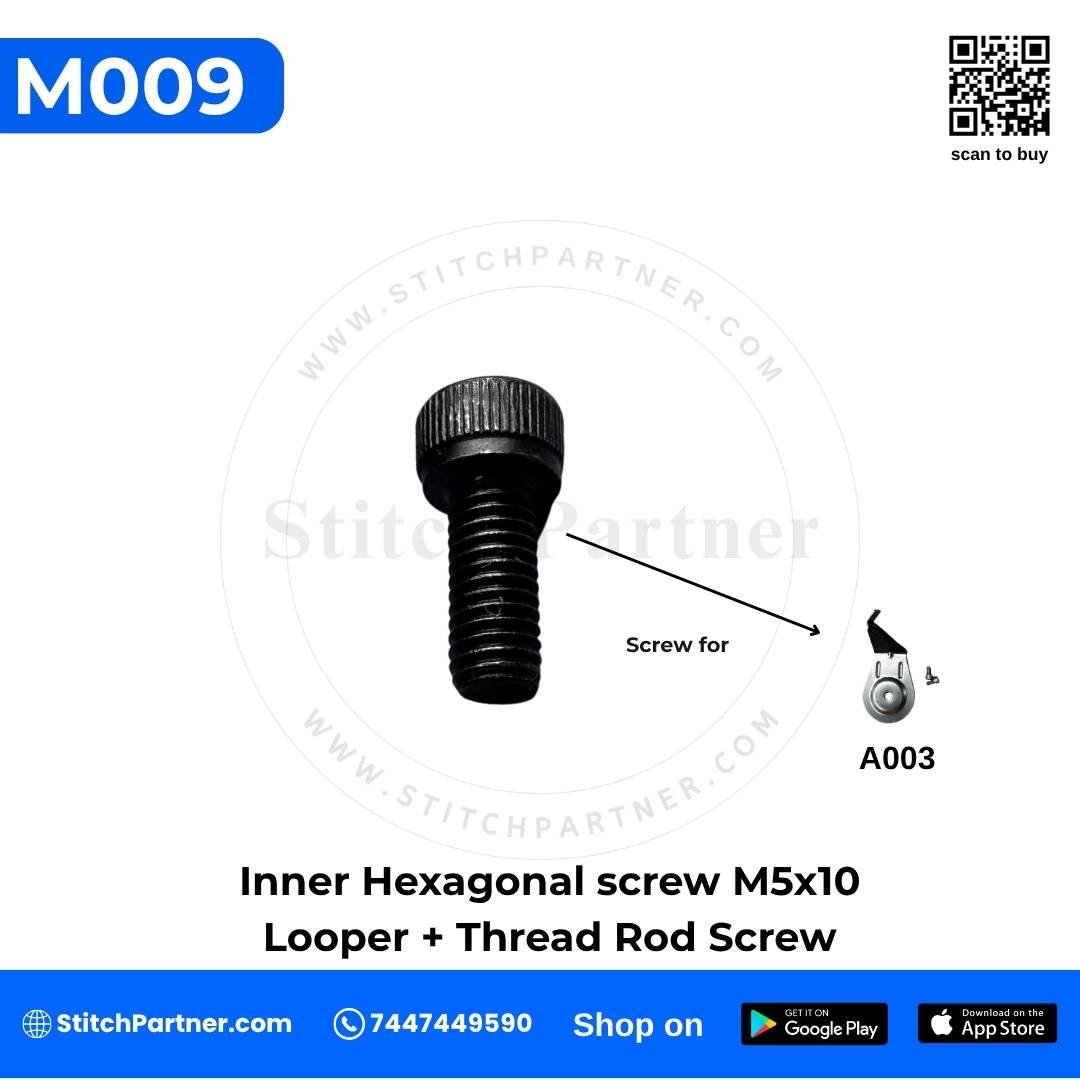

A003 Thread Stand Assembly
It firmly secures the vertical thread stand rod, preventing unwanted movement while the machine operates at high speed. A properly tightened screw helps maintain stable thread feeding and consistent stitch quality.
Looper and Thread Guide Assembly
The screw anchors the reciprocating looper and nearby thread guide components to their respective shafts. Correct fastening helps preserve looper timing, ensuring smooth loop formation and dependable bag closure.
Benefits of Replacing a Worn M009 Screw
Replacing a damaged or loose screw can help:
- Maintain accurate looper positioning
- Reduce unwanted vibration
- Improve thread control
- Support consistent stitch formation
- Prevent loosening of important moving components
- Extend the service life of connected machine assemblies
Routine replacement of worn fasteners is an important part of preventive maintenance for portable bag closer machines.
Suitable Bag Materials
Although the screw does not directly contact the bag material, it supports reliable stitching performance when sewing:
- Woven Polypropylene (PP) Bags
- Jute Bags
- Burlap Bags
- Canvas Bags
- Mesh Bags
- Multi-wall Kraft Paper Bags
A securely fastened looper and thread stand help maintain smooth thread delivery across various industrial packaging materials.
Installation Guide
- Disconnect the machine from its power source.
- Locate the existing M009 screw.
- Remove the damaged or loose screw using the correct Allen key.
- Position the replacement screw correctly.
- Tighten securely without overtightening.
- Rotate the machine manually to verify smooth component movement before operation.
Machine Compatibility Table
| Machine Type | Compatible |
|---|---|
| GK9-2 | Yes |
| GK9-8 | Yes |
| GK9-18 | Yes |
| GK9-18A | Yes |
| GK9-200 | Yes |
| GK9-350 | Yes |
| GK9-500 | Yes |
| GK9-900 | Yes |
| GK9-1001 | Yes |
Frequently Asked Questions
What does the M009 screw do in a GK9 portable bag closer?
The M009 screw secures important components such as the looper mechanism and thread stand. Proper fastening helps maintain accurate stitch formation and smooth thread feeding during bag closing.
Is this an M5 screw?
Yes. It features a standard M5 metric thread with a 10mm thread length.
Does this screw fit all GK9 bag closer machines?
It fits most machines built on the GK9 platform, including GK9-2, GK9-8, GK9-18, GK9-200, GK9-350, GK9-500, GK9-900, and GK9-1001. Always verify your parts manual before ordering.
Can I replace this screw myself?
Yes. If you have the correct Allen key and basic machine servicing knowledge, replacing the screw is straightforward. Ensure the machine is disconnected from power before servicing.
Why should I replace a loose or damaged screw?
A worn or loose screw can allow movement in the looper or thread stand assembly, affecting thread control and stitch consistency. Replacing it helps maintain reliable machine performance.
