7.94B Rotary Shuttle Hook for Jack F4 F5 & Juki DDL-8700

7.94B Rotary Shuttle Hook for Jack & Juki

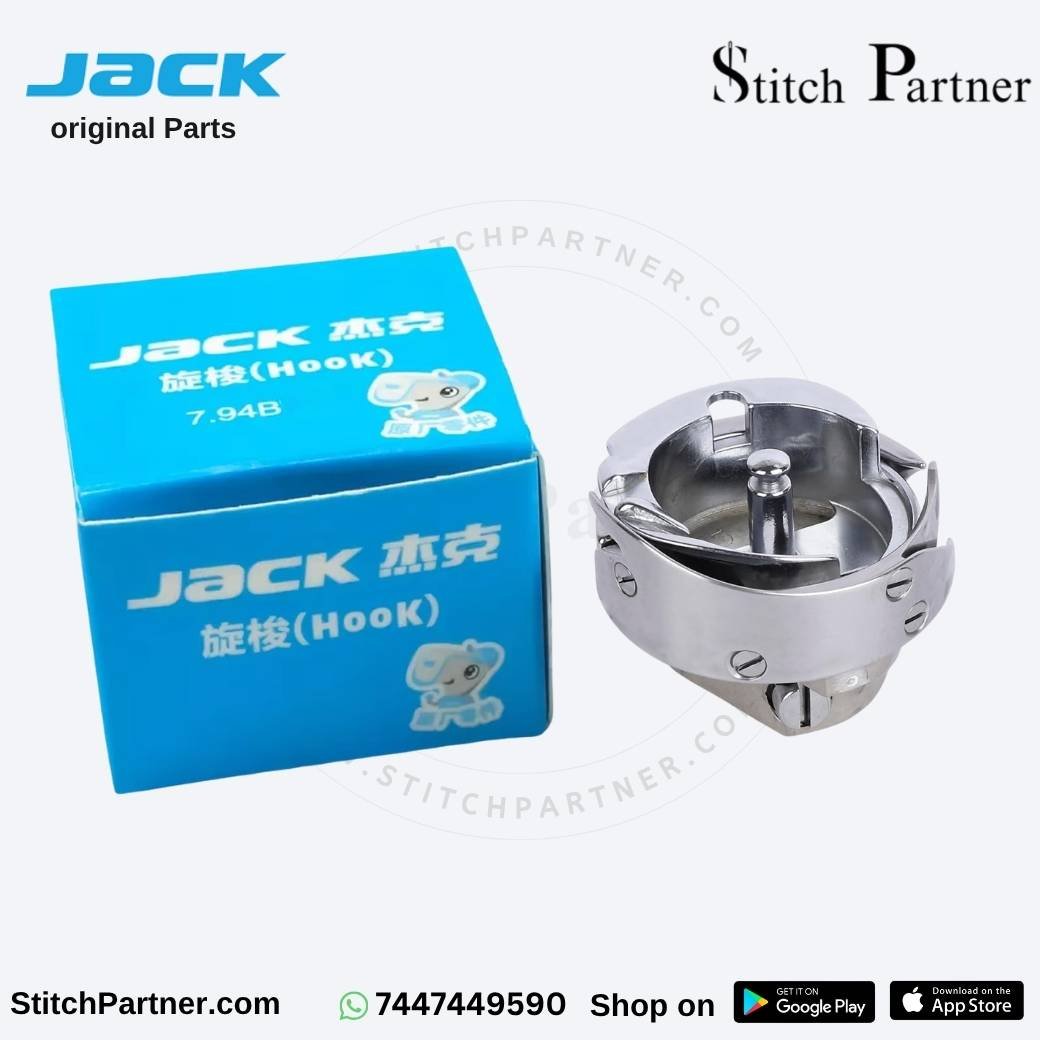

The 7.94B rotary shuttle hook is a replacement hook assembly for compatible Jack and Juki single-needle lockstitch sewing machines. It is designed to catch the needle-thread loop smoothly and support consistent lockstitch formation during regular industrial sewing.

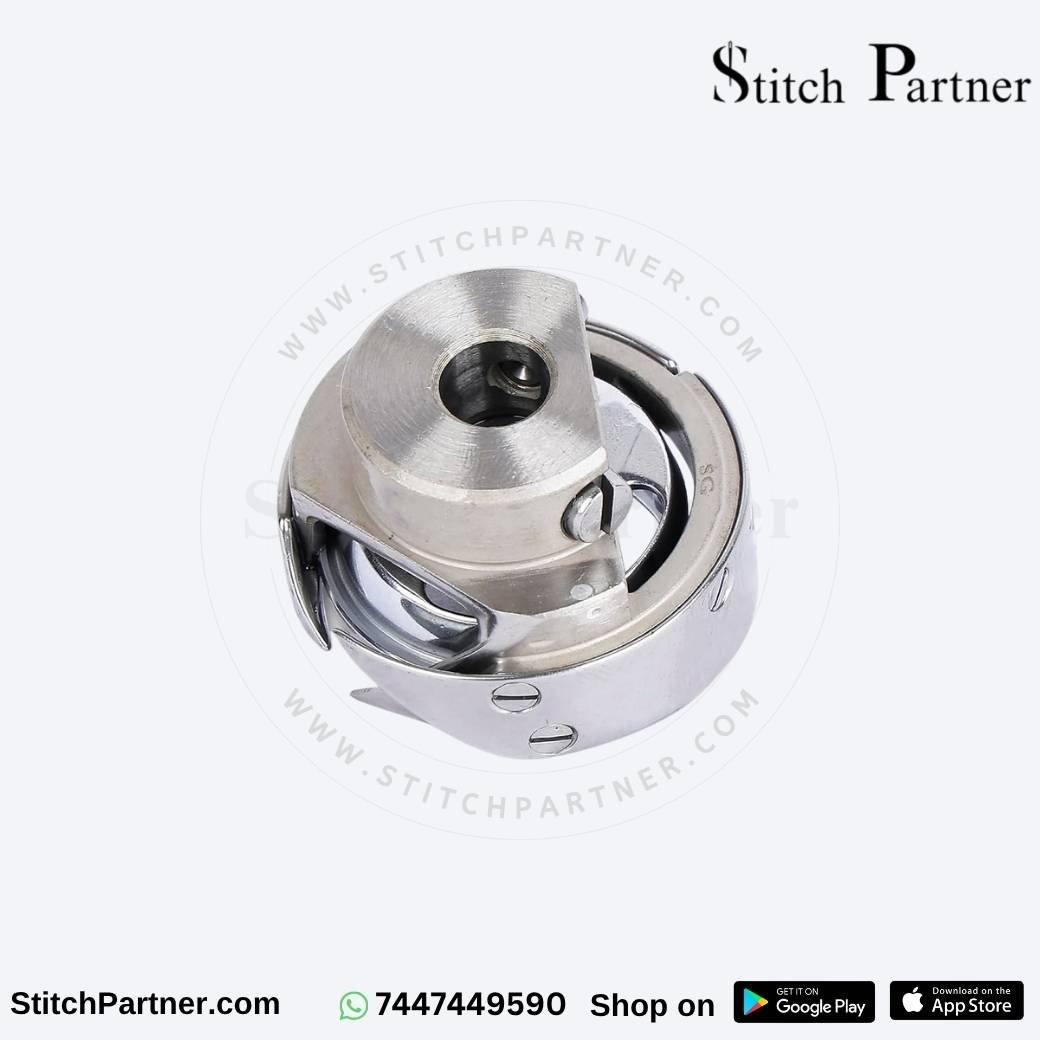

This hook is specified for Jack F4, Jack F5 and H2, along with selected Juki DDL machines including DDL-5550, DDL-8100, DDL-8300, DDL-8500, DDL-8700 and DDL-9000 series. Similar 7.94B hook listings also identify several Juki DDL models, including DDL-5550, DDL-8100, DDL-8300, DDL-8500 and DDL-8700.

It is suitable for light to medium-heavy sewing applications involving cotton, denim, polyester, rayon, linen and other woven garment fabrics.

Key Features

• 7.94B Rotary Hook: Standard rotary hook configuration for compatible industrial lockstitch machines.
• Accurate Loop Catching: The hook point works with the needle to catch the thread loop during stitch formation.
• Smooth Thread Movement: A polished hook race helps maintain smooth thread movement around the bobbin area.
• Durable Construction: Designed for regular use in industrial sewing environments.
• Consistent Stitch Formation: Helps maintain clean lockstitches when machine timing, needle and thread settings are correct.
• Replacement Application: Suitable for replacing a worn or damaged hook on compatible machines.

Machine Compatibility

The Juki DDL-8700 is a particularly relevant application for this hook type, with 7.94B listings specifically identifying DDL-8700 compatibility.

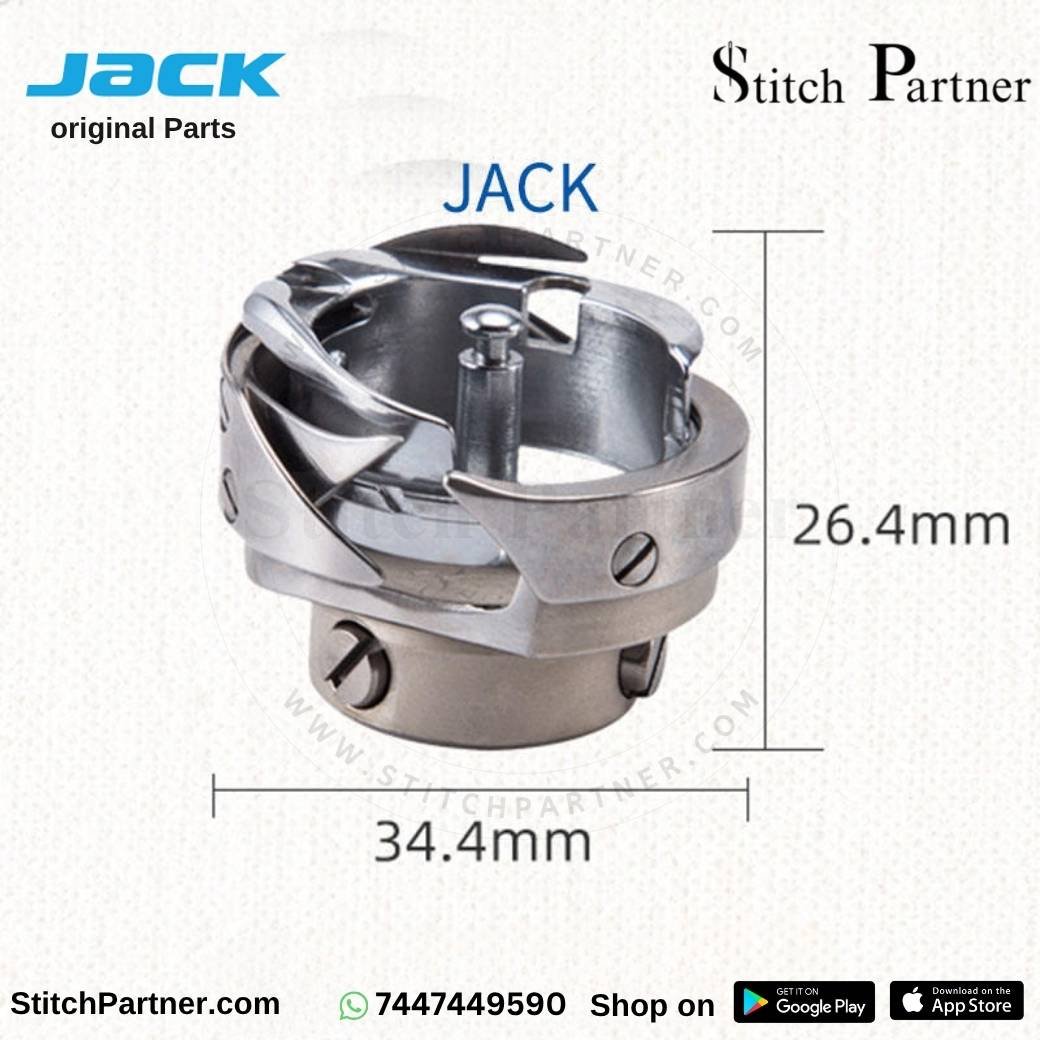

Please verify the shape, mounting arrangement and measurements of your existing hook before purchasing, especially when replacing a hook on a different machine variant.

Best Fabric Types

This rotary hook is suitable for common industrial garment-sewing applications involving:

• Cotton – shirts, uniforms and general garments
• Denim – jeans and denim garments
• Polyester – woven polyester garments
• Rayon – lightweight and medium-weight garments
• Linen – shirts, trousers and other woven products
• Knits – suitable where the machine setup and application permit
• Multi-layer garments – within the normal sewing capacity of the machine

The hook does not independently determine fabric thickness capability. Needle size, thread size, presser-foot pressure, machine timing and motor speed also affect sewing performance.

Related Industrial Sewing Machine Parts

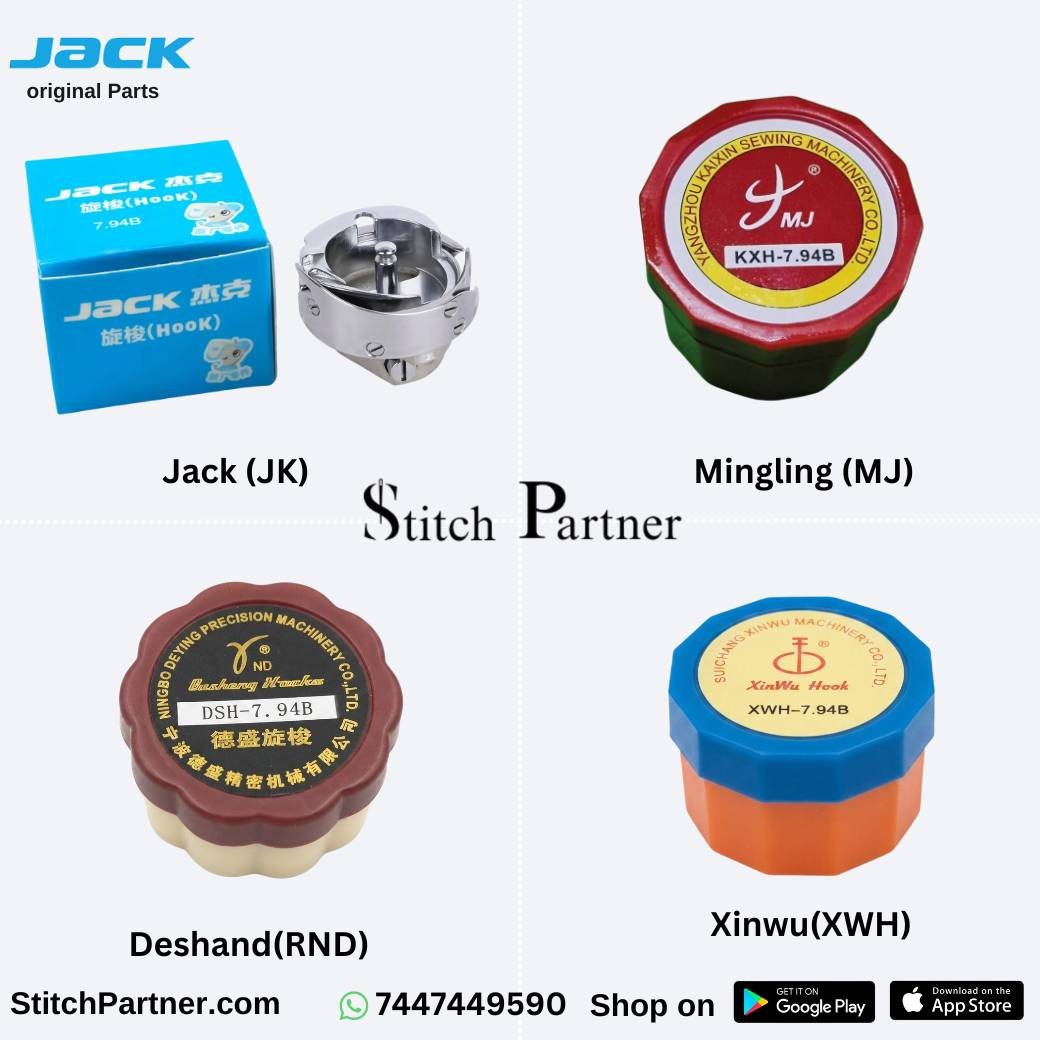

If you are replacing a worn or damaged hook, you can also explore our range of Industrial Sewing Machine Hooks for compatible industrial sewing machines. Our selection includes Rotary Shuttle Hooks for different machine models and sewing applications.

For model-specific replacement parts, browse Jack Sewing Machine Parts or Juki Sewing Machine Parts to find compatible components for your machine.

If you are servicing a complete machine, explore our range of Single Needle Lockstitch Machine Parts for commonly replaced components used in industrial garment sewing.

Why Replace a Rotary Shuttle Hook?

A worn or damaged rotary hook can interfere with proper needle-thread loop catching. This may contribute to skipped stitches, thread breakage, inconsistent stitch formation or visible damage around the hook point.

Before replacing the hook, inspect the needle, bobbin, bobbin case, thread path and machine timing. These components can create similar sewing problems when incorrectly adjusted or damaged.

How To Replace the Rotary Hook

1. Switch off and unplug the sewing machine.
2. Remove the needle and access the hook area according to the machine service procedure.
3. Remove the existing rotary hook carefully.
4. Clean lint, broken thread and debris from the hook area.
5. Install the replacement hook in the correct orientation.
6. Check the hook and needle relationship.
7. Turn the handwheel slowly to confirm that the needle and hook do not contact each other.
8. Test sew on scrap fabric before returning the machine to production.

Rotary hook replacement involves machine timing and clearances. If you are unsure about installation, have the machine checked by a qualified sewing-machine technician.

Frequently Asked Questions

What is a 7.94B rotary hook?

A 7.94B rotary hook is a rotary shuttle component used in compatible industrial single-needle lockstitch machines. It works around the bobbin area to catch the loop formed by the needle thread and help create the lockstitch.

Does this 7.94B hook fit Jack F4 and F5?

Yes. This product is specified for Jack F4 and F5 single-needle lockstitch machines. Jack’s F4/F5 machines are also listed within the relevant single-needle lockstitch parts category.

Is this hook compatible with Juki DDL-8700?

Yes. The supplied compatibility information specifies Juki DDL-8700, and independent 7.94B hook listings also identify DDL-8700 as a compatible model.

What fabrics can this rotary hook be used for?

The hook is suitable for light to medium-heavy fabrics including cotton, denim, polyester, rayon and linen. The actual fabric capacity depends on the sewing machine, needle, thread and machine settings.

Can a worn rotary hook cause skipped stitches?

Yes. A damaged or worn hook point can interfere with thread-loop catching and contribute to skipped stitches. However, incorrect needle installation, poor timing, thread tension and bobbin problems can cause similar symptoms.

How do I know if my sewing machine hook is damaged?

Check for a worn or chipped hook point, scratches, rough thread-contact surfaces or visible damage around the hook race. If stitching problems continue after checking the needle, bobbin and machine timing, the hook should be inspected.

Is this a complete rotary shuttle hook assembly?

Yes. The listed pack quantity is 1 piece. Verify the product configuration against your existing hook before installation.

Will this hook fit every Juki DDL machine?

No. Juki DDL machines can use different hook variants depending on the model and configuration. Match the 7.94B specification, hook shape and mounting arrangement before ordering.
