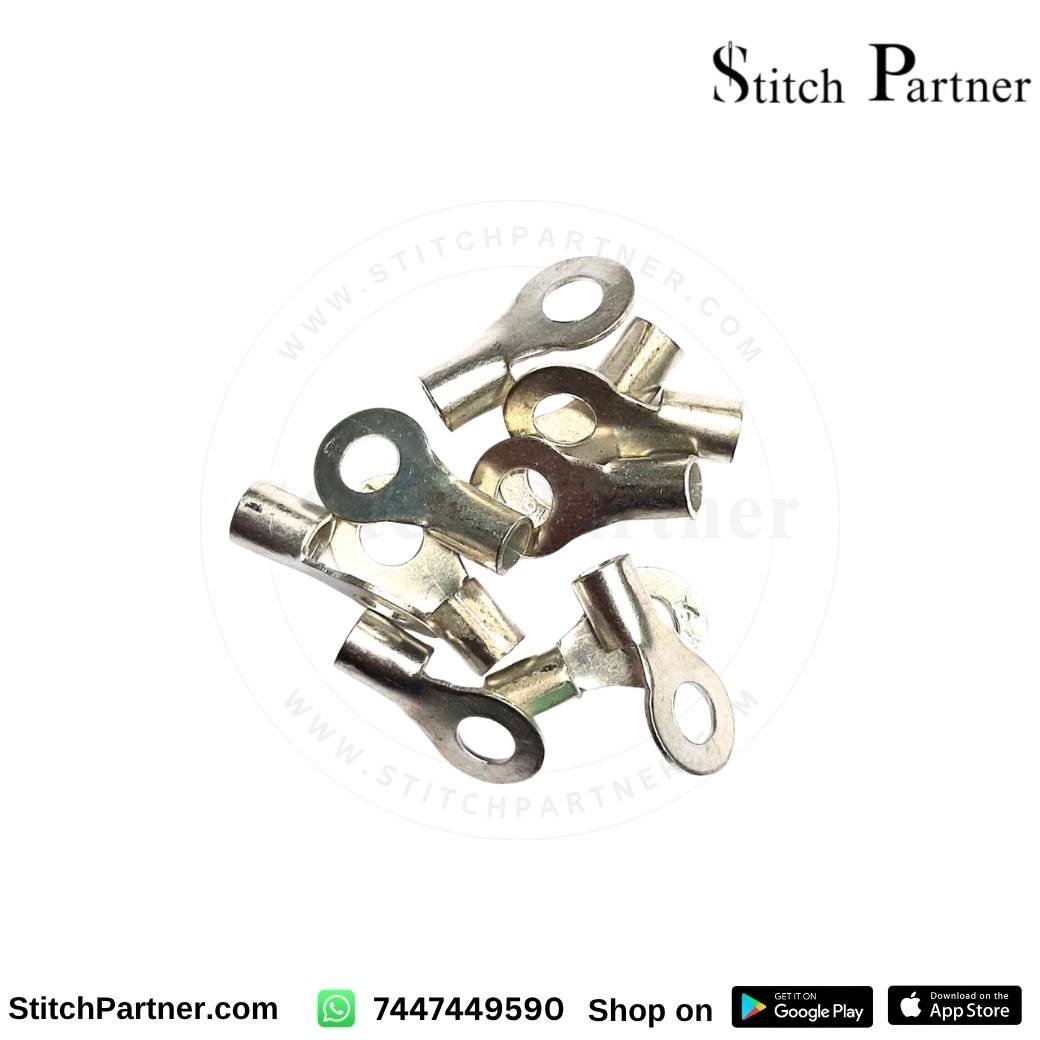

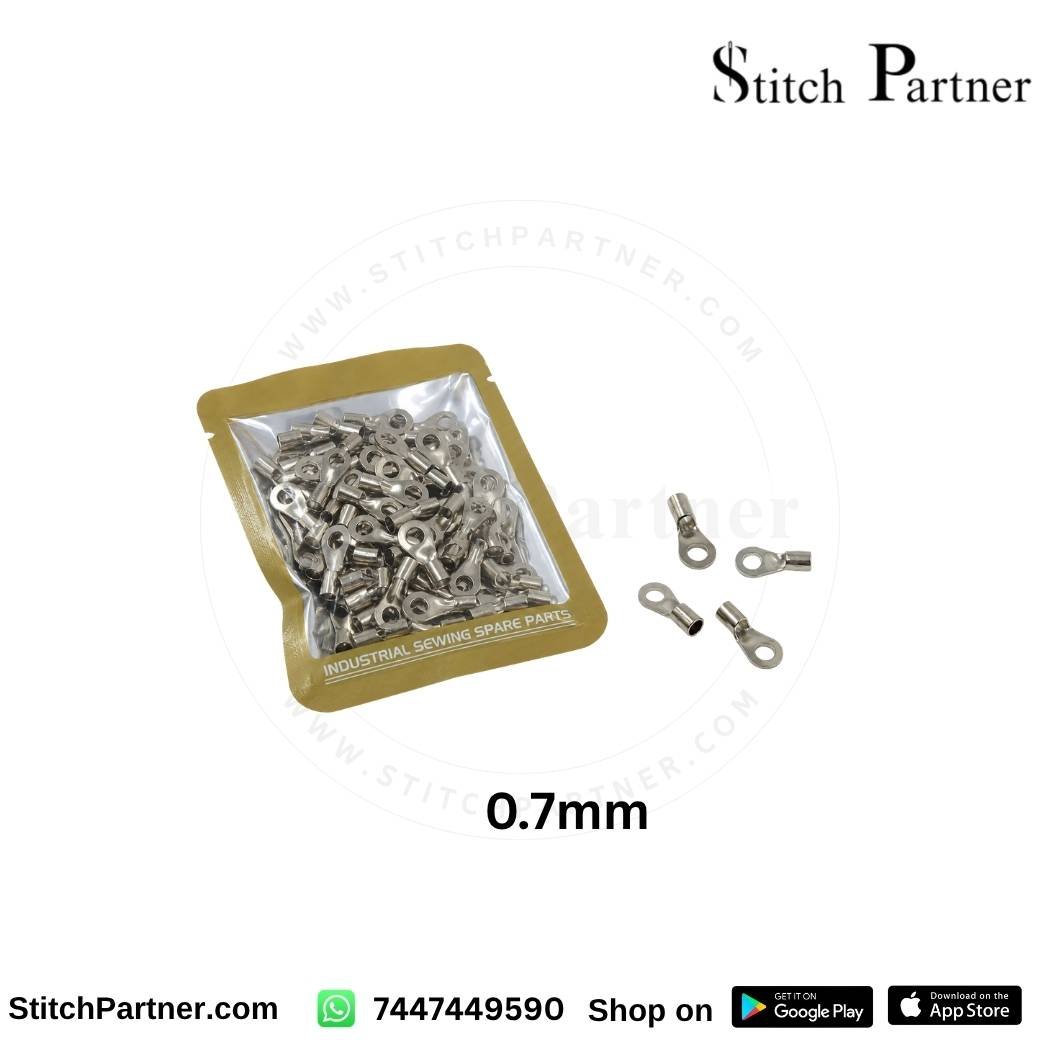

Heavy-Duty Tinned Copper Ring Cable Lug

Best For

This heavy-duty tinned copper ring cable lug suits industrial machinery, power wiring, control panels, and equipment maintenance. It helps create secure ring-type electrical connections where reliable cable termination matters.

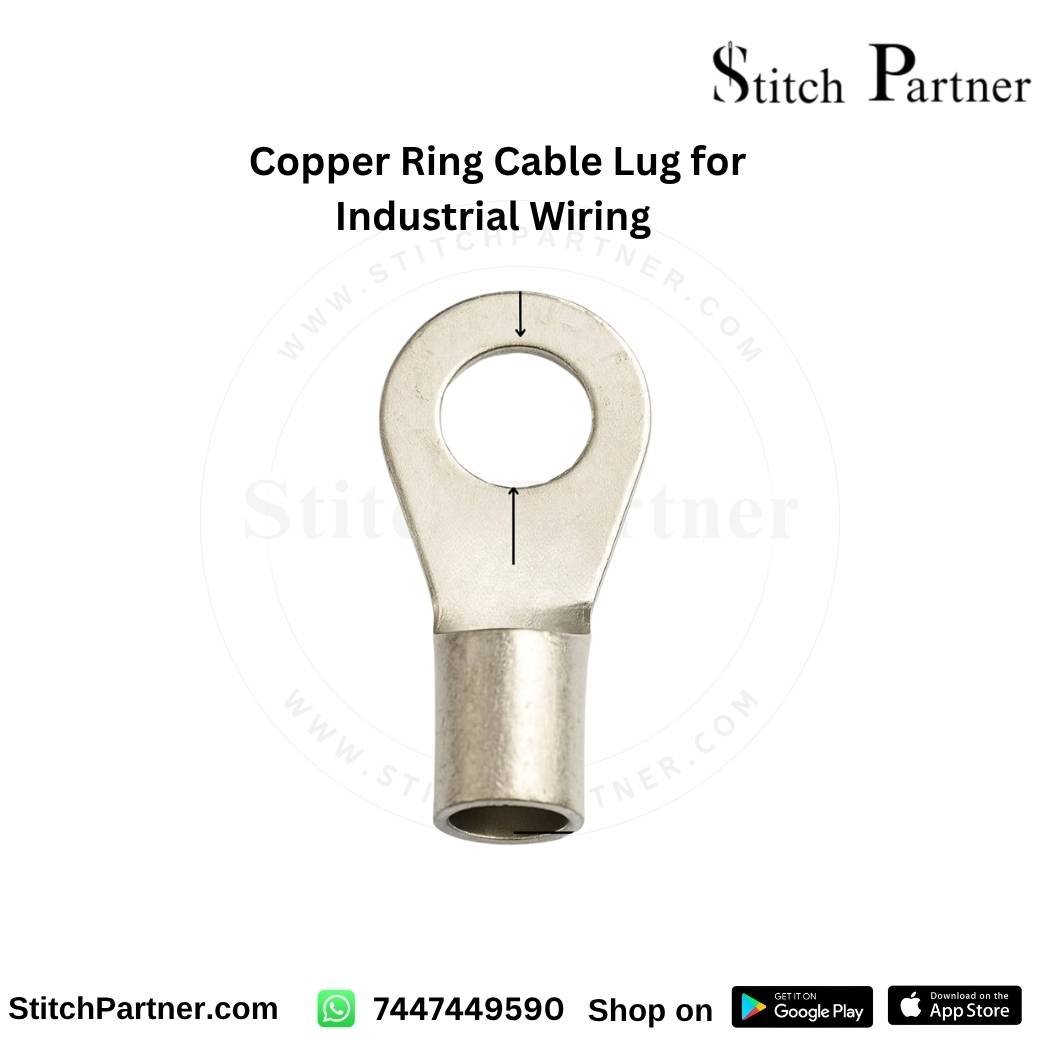

The ring-terminal design provides a fixed connection point for a compatible screw or stud. In addition, the tinned copper construction supports reliable electrical contact and helps resist surface corrosion.

Key Features

• Heavy-duty copper cable lug construction
• Tinned copper finish
• Ring-type terminal design
• Suitable for industrial electrical wiring
• Designed for screw or stud connections
• Useful for machinery maintenance and electrical installations

Use Cases

These ring-type cable lugs work well for industrial electrical wiring, machinery maintenance, control panels, power-distribution connections, and equipment servicing.

They are useful when you need to replace a damaged cable terminal or prepare a wire for a secure stud- or bolt-mounted electrical connection.

Electricians, machine technicians, maintenance workshops, and industrial users can use these lugs for compatible cable termination work.

Benefits

Secure Ring Connection

The closed-ring terminal fits around a compatible screw or stud. This design helps maintain a stable mechanical and electrical connection.

Tinned Copper Construction

The tin coating adds a protective layer over the copper surface. As a result, it helps resist oxidation and corrosion during normal electrical applications.

Useful for Industrial Maintenance

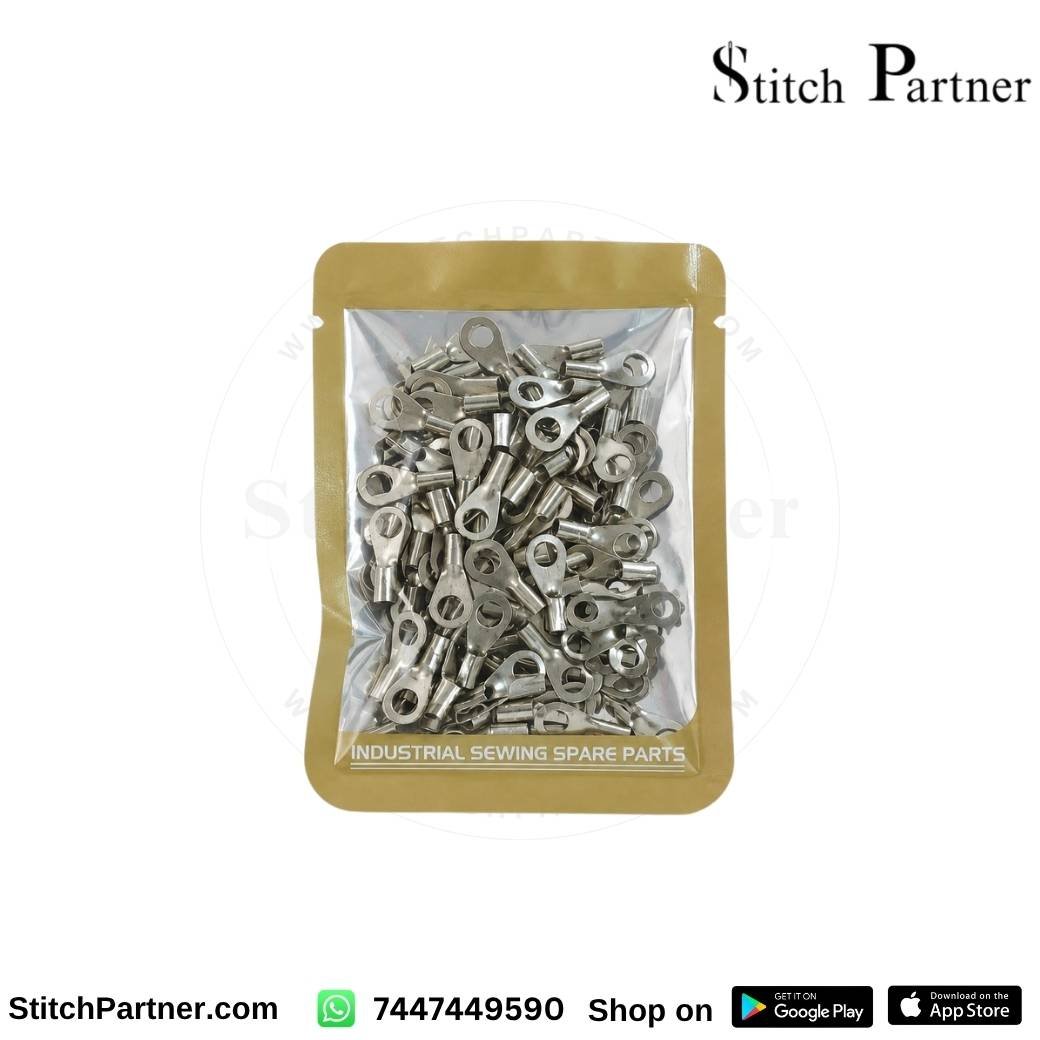

The 20-piece pack provides multiple terminals for wiring repairs, machine servicing, and electrical installation work.

Suitable for Compatible High-Current Wiring

Copper offers high electrical conductivity, which makes it common in electrical connections. However, the actual current capacity depends on the lug size, conductor size, installation method, and application.

Machine Compatibility

This is not machine-specific hardware. Instead, it works as a general electrical wiring component for industrial machinery and power-distribution applications.

Compatibility depends on two important measurements:

• Wire-entry size of the lug
• Ring-hole/stud size of the terminal

Both measurements must match the cable and connection point. Check these specifications before installation.

Specifications

How To Use

Step 1: Isolate the Electrical Supply

First, switch off the electrical supply before working on any wiring. Isolate the circuit and confirm that it remains safely de-energized.

Step 2: Select the Correct Lug

Next, choose a lug with the correct wire-entry size for the conductor. Also, make sure the ring-hole size matches the screw, stud, or terminal connection.

Step 3: Prepare and Crimp the Wire

Then, strip the conductor to the required length. Insert the exposed conductor fully into the lug barrel.

Use an appropriate crimping tool to secure the lug to the conductor. Make sure the crimp holds the conductor firmly without damaging the terminal.

Step 4: Secure the Ring Terminal

Finally, place the ring terminal onto the matching stud or screw. Tighten the connection according to the equipment or terminal manufacturer’s requirements.

Before energizing the circuit, check that the conductor remains firmly secured.

FAQs

What is a copper ring cable lug used for?

A copper ring cable lug terminates an electrical wire so you can securely attach it to a screw, stud, or bolt connection.

The ring-shaped end fits around the fastening point and creates a fixed mechanical connection. These terminals commonly serve industrial machinery, electrical panels, batteries, power wiring, and equipment maintenance.

Why is the lug tinned?

Tinning adds a protective layer to the copper surface. It helps reduce surface oxidation and corrosion compared with untreated copper.

This feature can also help protect the terminal during storage and normal electrical installation. However, the tin coating does not make every lug suitable for every environment. Always match the conductor size, lug specifications, and operating conditions.

Is this cable lug suitable for high-current wiring?

It can suit compatible higher-current electrical connections. However, the actual current capability depends on several factors, including:

• Conductor size
• Barrel dimensions
• Material
• Crimp quality
• Connection hardware
• Operating conditions

Therefore, do not select a lug only because it uses copper. Match the lug with the cable and electrical load requirements.

How do I choose the correct ring terminal size?

Check two key measurements before choosing a ring terminal:

1. The cable or conductor size that the barrel accepts
2. The ring-hole diameter required by the mounting screw or stud

Both measurements must match the installation. A terminal with the correct ring-hole size may still be unsuitable if its cable barrel does not match the conductor.

Can these lugs be used for industrial sewing machines?

Yes, you can use them when their electrical and physical specifications match the wiring connection.

These lugs are general-purpose electrical terminals rather than sewing-machine-specific parts. They may suit compatible motor, control-panel, power-supply, or other wiring connections.

However, always check the existing terminal dimensions and electrical requirements before installation.

What tool should I use to install a ring cable lug?

Use a crimping tool designed for the specific terminal and conductor size.

First, insert the conductor fully into the lug barrel. Then, crimp it securely using the correct tool and technique.

A properly crimped lug should hold the conductor firmly without damaging the terminal. An incorrect crimp can increase electrical resistance, create heat, or cause an unreliable connection.

Can I solder the wire instead of crimping it?

The correct termination method depends on the terminal design and the equipment manufacturer’s requirements.

If the lug requires crimping, use the correct crimping tool and technique instead of relying on solder alone. Solder can reduce conductor flexibility near the termination, and it does not replace a mechanically correct crimp.

Are these ring lugs reusable?

These lugs generally serve as replacement electrical terminals rather than reusable fittings.

After you crimp a lug onto a conductor, removing it usually damages or permanently deforms the crimped section. Therefore, use a new, correctly sized lug when you need to terminate the conductor again.
