A017 Chain Joint Connecting H Link for GK9 Portable Bag Closer
Original price was: ₹100.00.₹80.00Current price is: ₹80.00.
Description

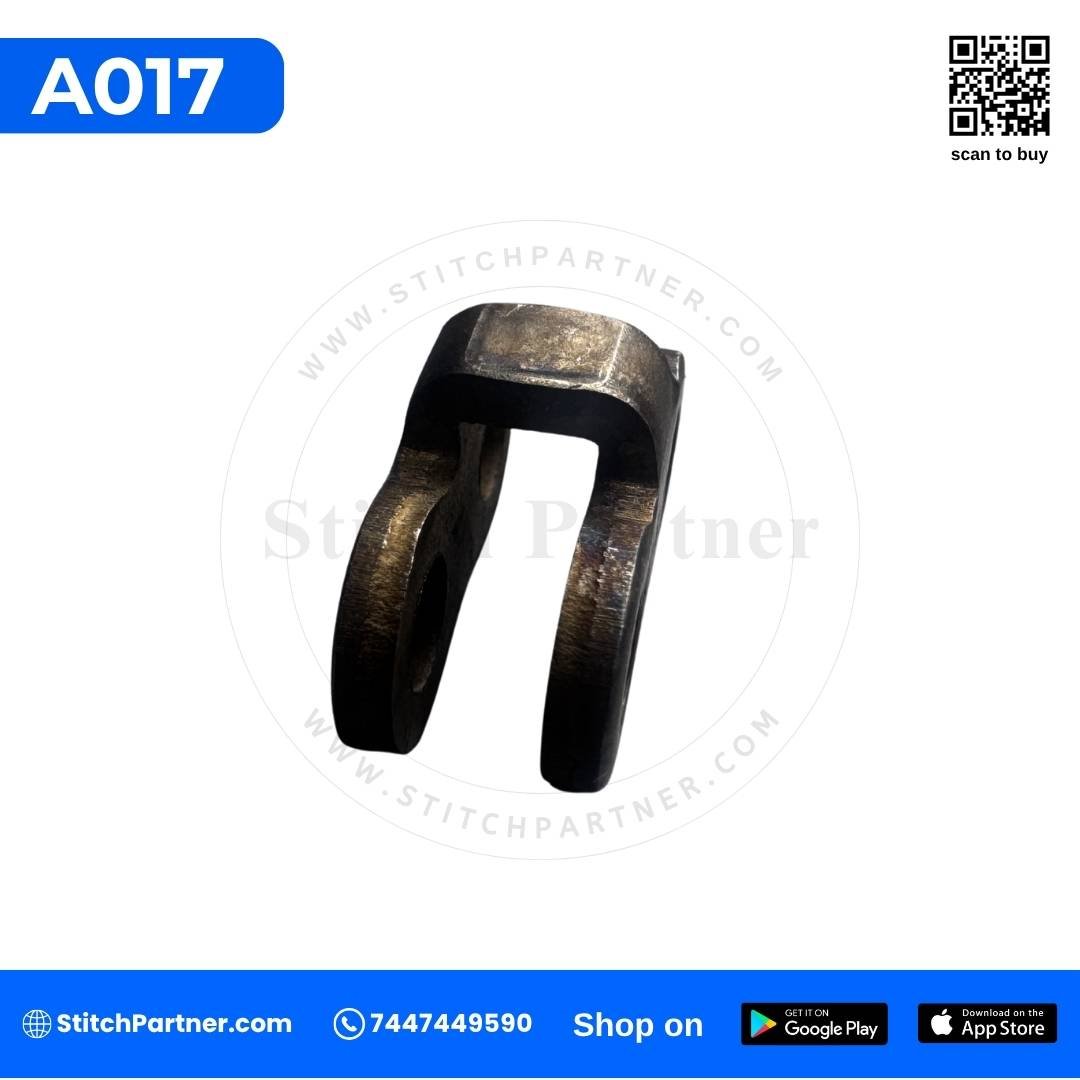

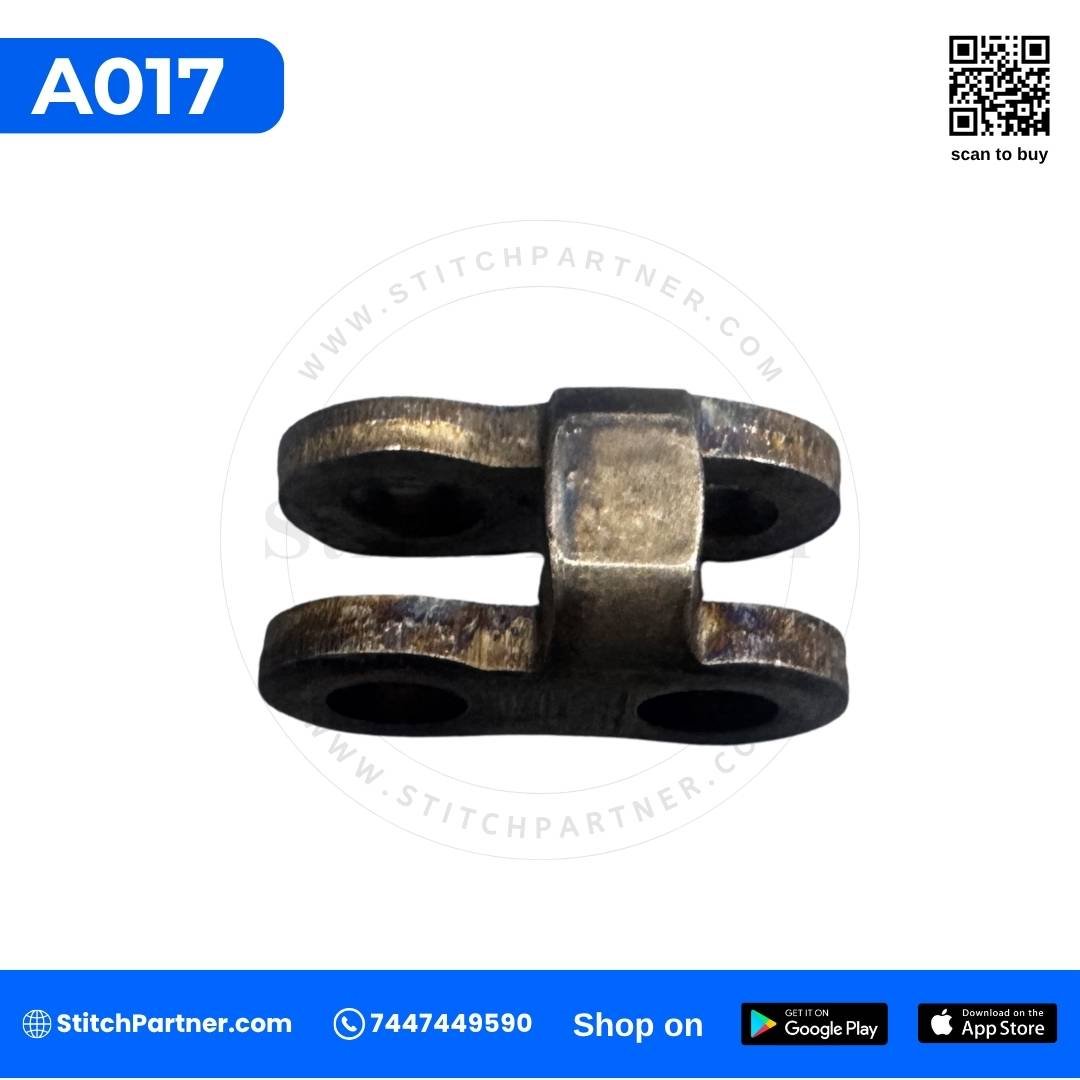

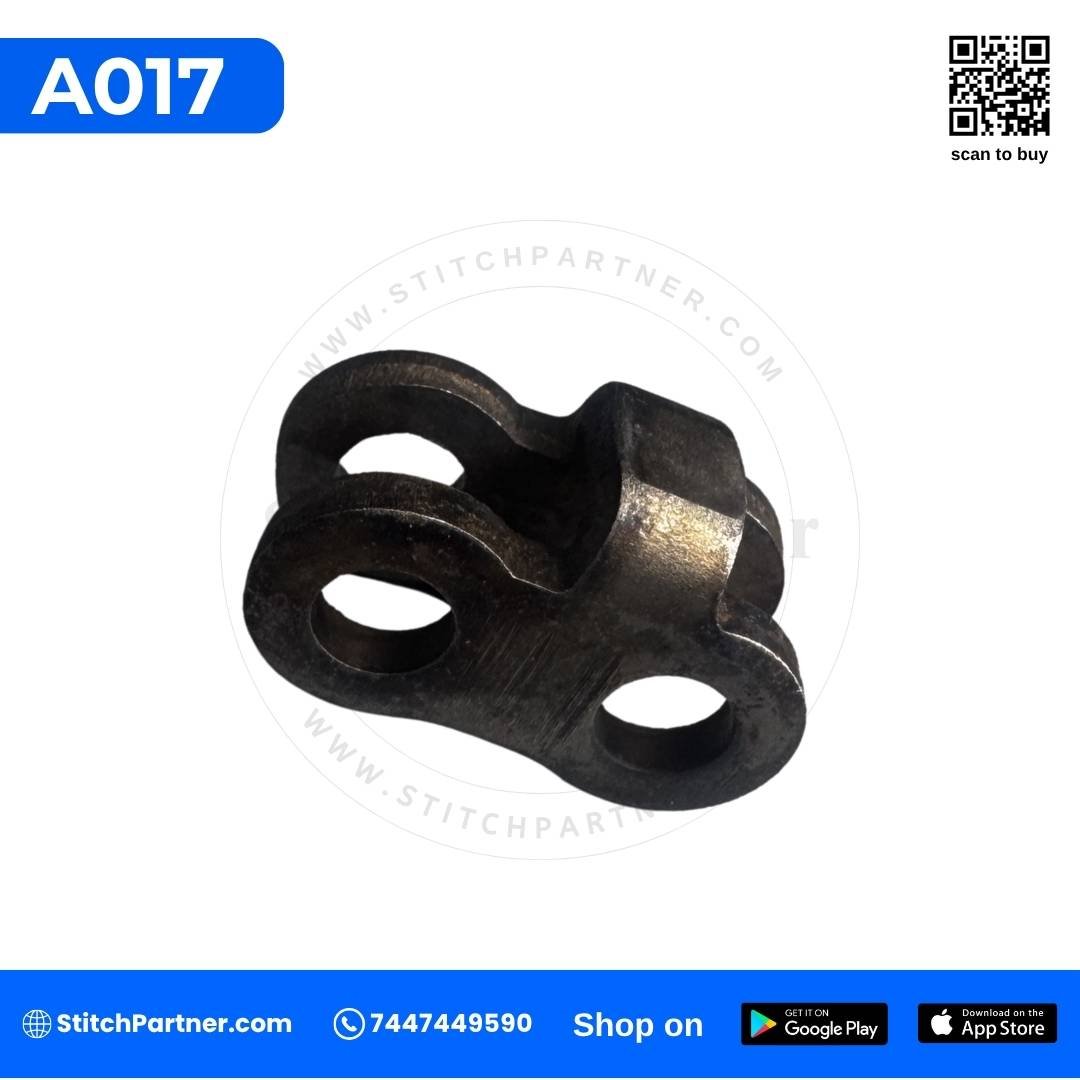

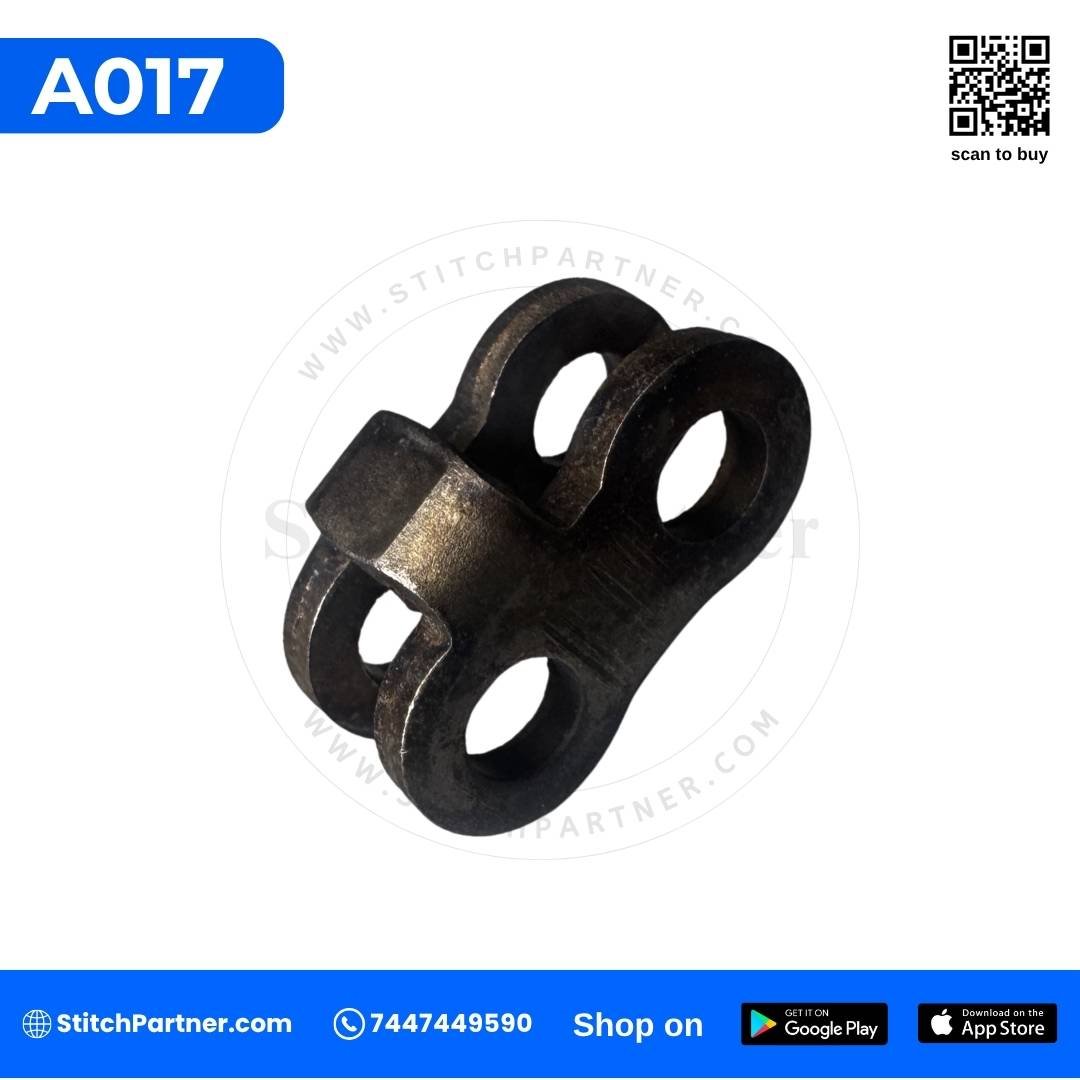

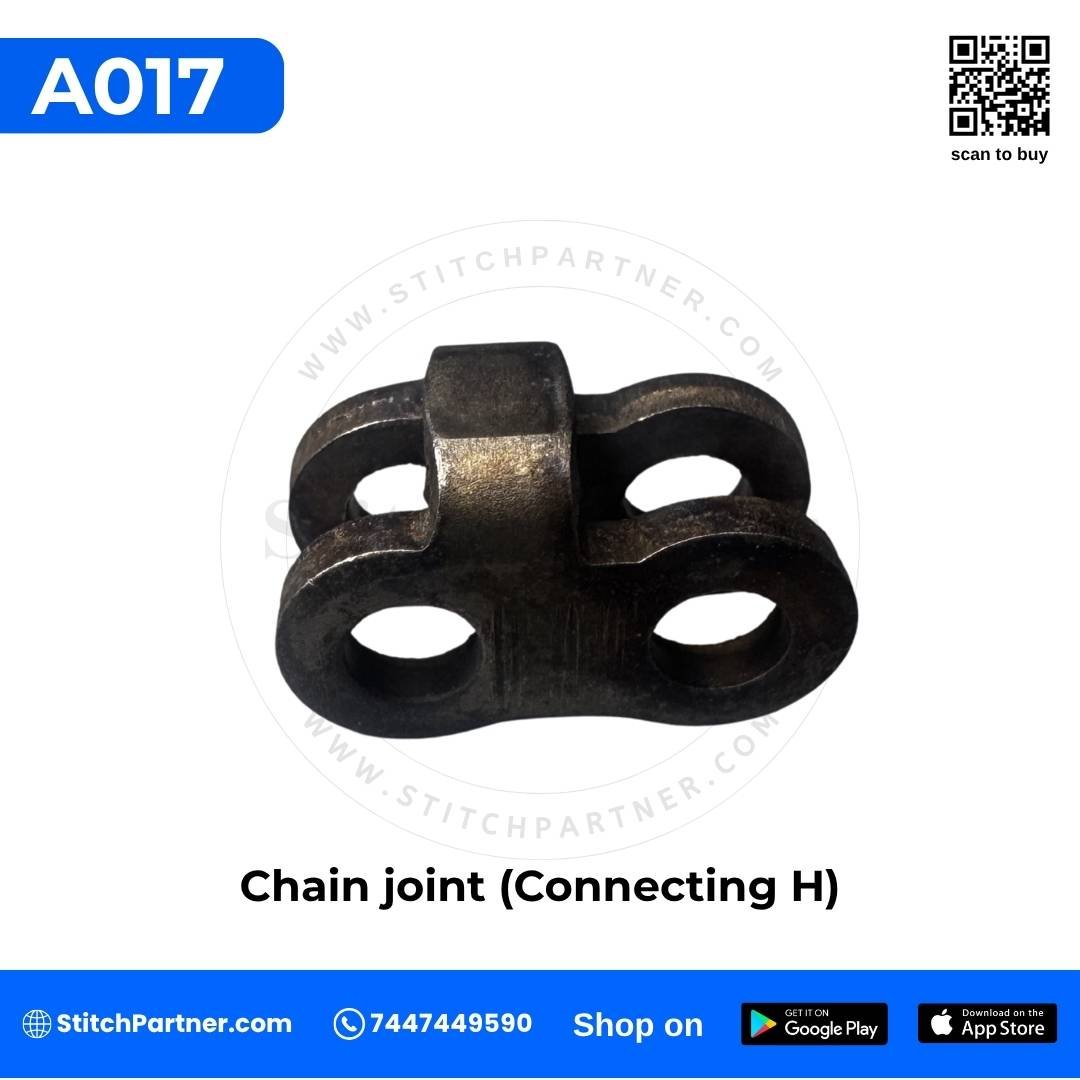

A017 Chain Joint (Connecting H Link) for GK9 Portable Bag Closer Machine
The A017 Chain Joint (Connecting H Link) is a precision replacement component designed for the internal drive transmission mechanism of GK9 portable bag closer machines. It connects important moving linkages within the drive system, helping maintain smooth power transfer between mechanical components for reliable stitching performance.
Manufactured with precision-machined alloy metal, this connecting H-link minimizes mechanical play, reduces vibration, and helps preserve proper machine timing. It is an ideal replacement when servicing worn or damaged internal linkage assemblies in handheld bag stitching machines.
This part is compatible with a wide range of GK9 portable bag closer models and equivalent handheld bag sewing machines from several manufacturers.
Please cross-check your machine’s parts diagram and existing component before ordering to ensure compatibility.
Key Features
Precision H-Link Design
The accurately machined H-shaped linkage maintains proper alignment between internal moving components, helping the transmission system operate smoothly while reducing unnecessary stress on connected parts.
Heavy-Duty Alloy Construction
Manufactured from high-strength alloy metal, the A017 Chain Joint is built to withstand continuous reciprocating movement and demanding industrial packaging applications.
Reduces Mechanical Play
A worn linkage can introduce excess movement that affects machine timing. This replacement joint helps restore accurate movement and smoother transmission.
Vibration Resistant
The rigid construction helps absorb vibration generated during high-speed bag closing operations, reducing wear on adjacent linkage components.
OEM-Style Direct Replacement
Designed with factory-matched pivot hole positions, allowing straightforward installation during machine maintenance or repairs.
Compatible Machines
The A017 Drive Chain Joint is compatible with portable handheld bag closer machines using the GK9 mechanical platform, including:
- GK9-2
- GK9-8
- GK9-18
- GK9-18A
- GK9-200
- GK9-500
It is also suitable for many compatible handheld bag closer machines manufactured by:
- Newlong (equivalent handheld models)
- Revo
- Gemsy
- Zoje
- Standard China-made portable bag closer machines
Compatibility Note: Please verify your existing linkage shape and machine layout before purchasing.
Applications
Although this component does not contact the bag material directly, it plays an important role in maintaining consistent stitching performance while sewing:
- Woven polypropylene bags
- Jute sacks
- Burlap bags
- Canvas bags
- Multi-wall paper sacks
- Agricultural packaging
- Food packaging bags
- Chemical and fertilizer sacks
Why Replace the Chain Joint?
Replacing a worn or damaged connecting H-link can help restore smooth mechanical operation and reduce transmission issues.
Benefits include:
- Improved linkage stability
- Better mechanical synchronization
- Reduced internal vibration
- Consistent stitch formation
- Lower wear on connected drive components
- Reliable long-term machine performance
Installation Guide
- Disconnect the machine from the power supply.
- Open the machine housing.
- Locate the existing chain joint within the drive linkage.
- Remove the worn component carefully.
- Install the new A017 Chain Joint using the original pivot pins.
- Confirm smooth movement of the linkage before closing the housing.
- Test the machine on a sample bag before returning it to production.
Machine Compatibility Table
| Machine Type | Compatible |
|---|---|
| GK9-2 | Yes |
| GK9-8 | Yes |
| GK9-18 | Yes |
| GK9-18A | Yes |
| GK9-200 | Yes |
| GK9-500 | Yes |
| Equivalent Newlong Handheld Style | Yes |
| Revo Portable Bag Closer | Yes |
| Gemsy Portable Bag Closer | Yes |
| Zoje Portable Bag Closer | Yes |
Frequently Asked Questions
What does the A017 Chain Joint do?
The A017 Chain Joint connects important moving linkage arms inside the GK9 portable bag closer, helping transmit mechanical motion smoothly between drive components for consistent stitching.
Is this an OEM-size replacement?
Yes. It is manufactured to match the standard OEM linkage dimensions for compatible GK9-style portable bag closer machines.
Does this part affect stitch quality?
Yes. A worn linkage may contribute to excess mechanical play that can influence machine timing and stitching consistency. Replacing it helps restore smoother operation.
Is this part compatible with all GK9 machines?
It fits most standard GK9-series portable bag closer machines, including GK9-2, GK9-8, GK9-18, GK9-18A, GK9-200, and GK9-500. Always verify your existing component before ordering.
Can I install it myself?
Users familiar with servicing portable bag closer machines can typically install this component using standard tools. If unsure, installation by a qualified technician is recommended.
