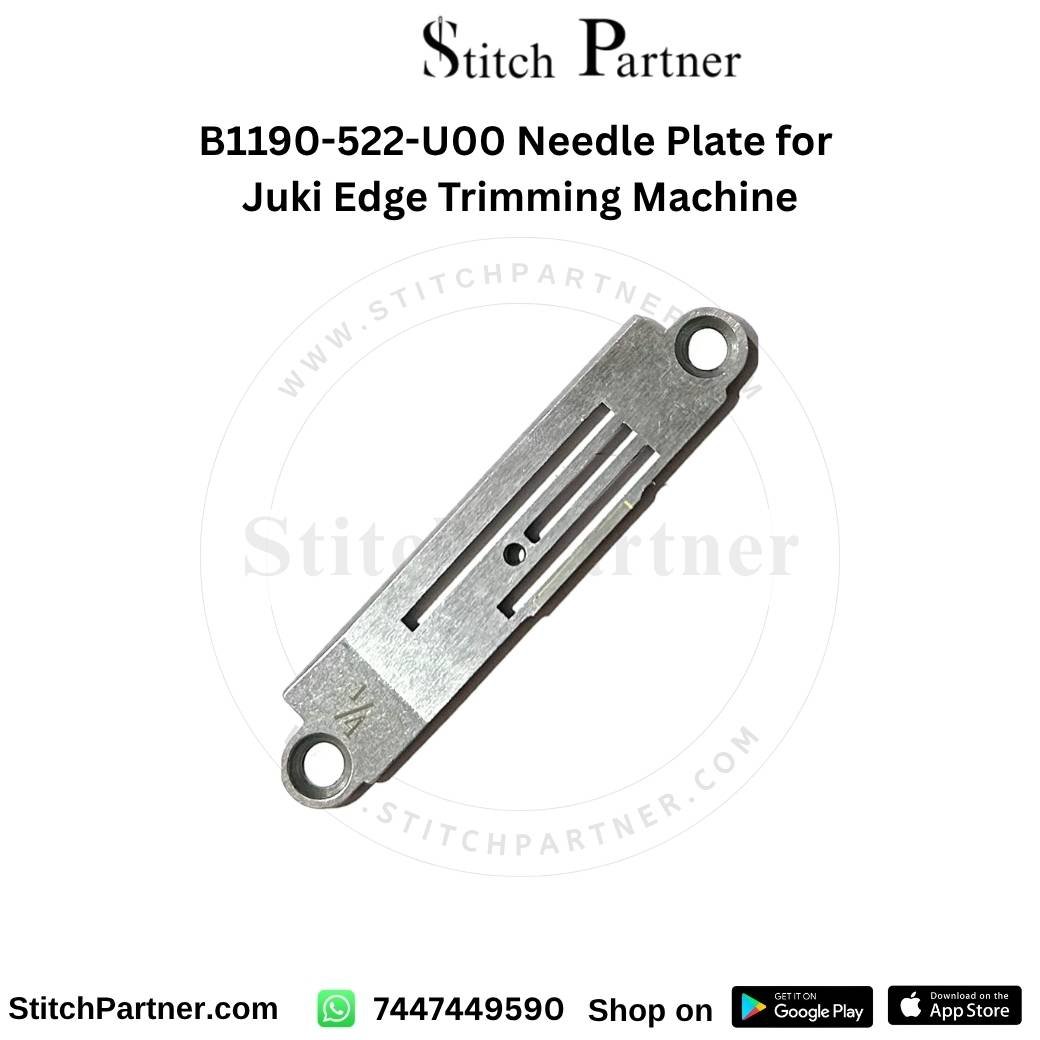

B1190-522-U00 Needle Plate for Juki DLM Edge Trimmer

B1190-522-U00 1/4-Inch Needle Plate for Juki Edge-Trimming Machines

The B1190-522-U00 Needle Plate is a 1/4-inch gauge plate designed for Juki DLM-series single-needle lockstitch machines with a vertical edge-trimming system. It is suitable for applications where accurate needle positioning and controlled fabric movement are important during sewing and edge trimming.

JUKI documentation identifies B1190-522-U00 as the 1/4-inch gauge plate for the DLM-522 and DLM-5200N sub-gauge system.

This replacement part is suitable for specified Juki DLM models and Jack JK-5558WB edge-trimming machines. It is supplied as 1 piece.

Why Choose This Needle Plate?

A correctly matched needle plate helps maintain the required needle and fabric path around the edge-trimming mechanism. The 1/4-inch configuration is especially useful when your machine is set up for the corresponding gauge specification.

The polished working surface helps fabric move smoothly across the plate, while the precisely positioned needle opening supports consistent needle entry during sewing.

The plate is designed for professional garment-production applications such as shirts, collars, cuffs, pocket flaps, uniforms, suits, linings and other woven garments.

Key Features

• Part Number: B1190-522-U00

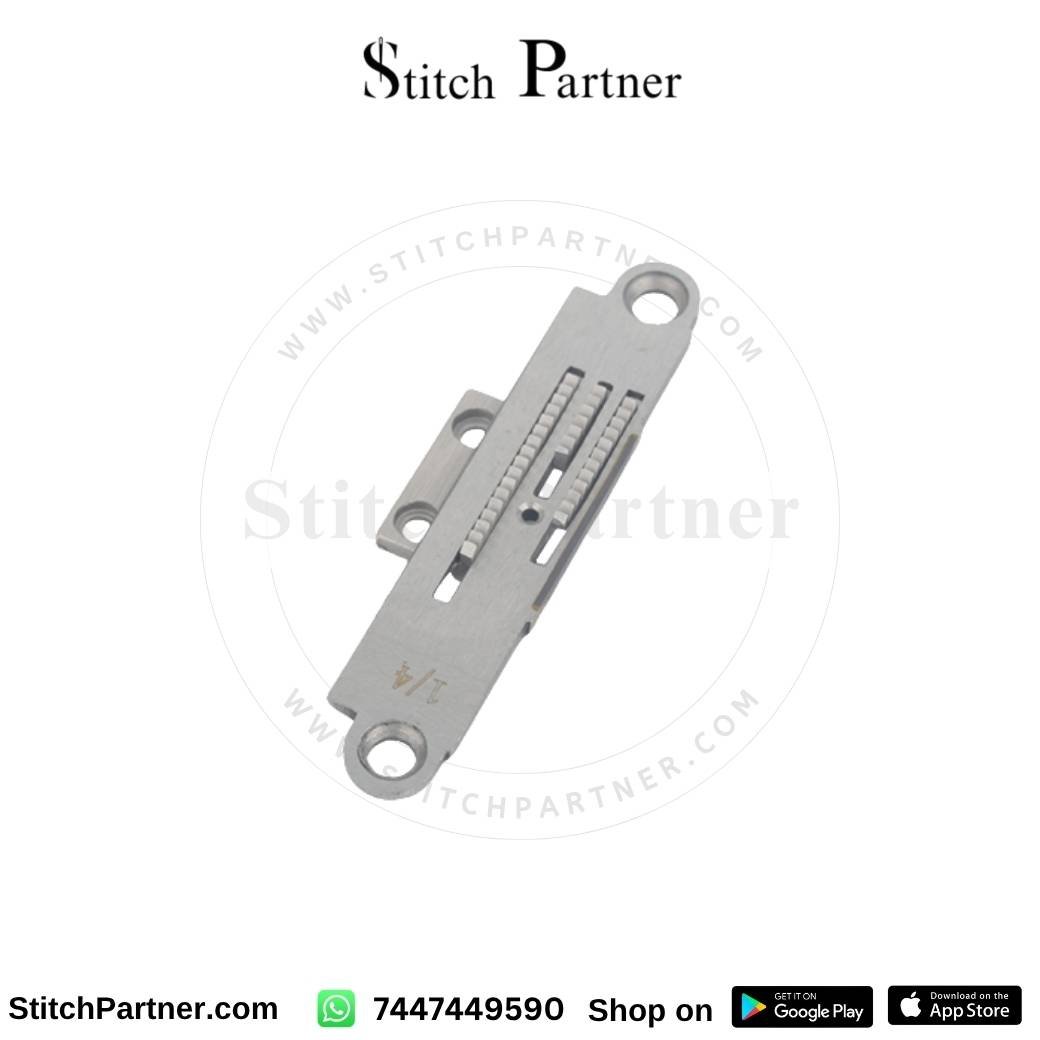

• Gauge: 1/4 inch / 6.4 mm
• Product Type: Needle/gauge plate for edge-trimming sewing machines
• Pack Quantity: 1 Piece
• Application: Single-needle lockstitch machines with edge trimmer
• Machine System: Juki DLM-series edge-trimming machines
• Surface: Smooth polished working surface
• Needle Opening: Precision-positioned for the specified gauge
• Use: Sewing and edge trimming of woven garments
• Part Number Variations: B1190-522-U00 / B1190522U00
• Cross-reference: S10573-001 is listed as a Brother 1/4-inch needle-plate reference in industry parts literature; verify your machine and existing part before using a cross-reference.

Machine Compatibility

This needle plate is intended for the following machine applications based on the supplied compatibility information and competitor listings:

• Juki DLM-522
• Juki DLM-5200
• Juki DLM-5200N
• Juki DLM-5210N
• Juki DLM-5400-7
• Juki DLM-5400N-7
• Jack JK-5558WB
• Compatible equivalent edge-trimming lockstitch configurations where the B1190-522-U00 specification is required

The JUKI DLM-5200N documentation specifically lists B1190-522-U00 for the H sub-gauge, 6.4 mm (1/4 inch) configuration.

Machine Compatibility Table

Best Fabric Types

This needle plate is suitable for light to medium-heavy woven fabrics used in garment manufacturing and tailoring applications.

Common applications include:

• Cotton
• Polyester
• Shirt fabrics
• Suit fabrics
• Uniform fabrics
• Woven linings
• Collar materials
• Cuff materials
• Pocket flap fabrics

For heavier materials, always confirm that your machine, needle, thread and edge-trimming setup are appropriate for the fabric thickness.

Where Is It Used?

The B1190-522-U00 is useful in garment-production operations where sewing and edge trimming are performed together. It can be used for applications such as:

• Collar stitching
• Cuff stitching
• Pocket flap production
• Shirt manufacturing
• Suit production
• Uniform manufacturing
• Woven garment production
• Clean edge-trimming operations

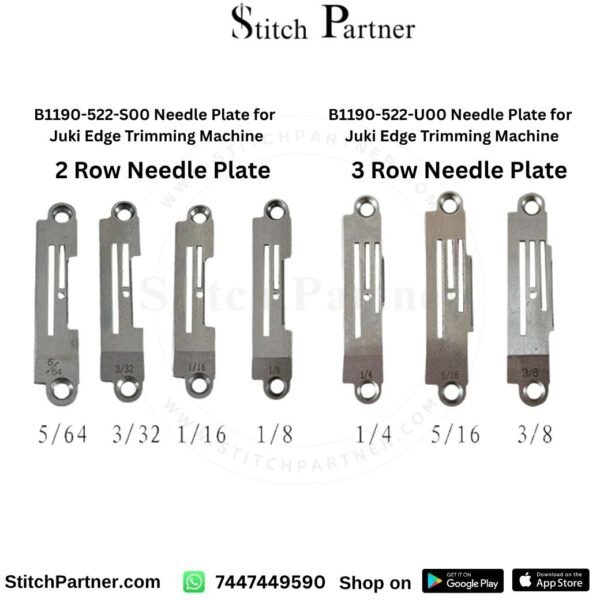

Its 1/4-inch specification makes correct part matching particularly important. JUKI’s parts documentation lists different B1190-522 variants for different gauge widths, including 3/16 inch, 1/4 inch and 3/8 inch versions.

How To Replace the Needle Plate

1. Switch off and unplug the sewing machine before starting.
2. Raise the presser foot and needle to a safe position.
3. Remove the existing needle plate or gauge plate carefully.
4. Clean lint and thread debris from the mounting area.
5. Position the B1190-522-U00 in the correct orientation.
6. Tighten the fixing screws securely without overtightening.
7. Turn the handwheel manually to check needle clearance.
8. Check the relationship between the needle opening and edge-trimming mechanism.
9. Test sew on a scrap of the intended fabric.
10. Confirm smooth fabric feeding and proper edge trimming before production.

If your existing plate looks different or the mounting position does not match, please verify the shape and measurements of your existing part before purchasing.

Frequently Asked Questions

What is B1190-522-U00?

B1190-522-U00 is a 1/4-inch gauge/needle plate used with Juki DLM-series edge-trimming sewing machines. JUKI documentation identifies it with the 6.4 mm (1/4-inch) H sub-gauge configuration. It is used where the machine setup requires this specific gauge width.

Is B1190-522-U00 a 1/4-inch needle plate?

Yes. B1190-522-U00 corresponds to the 1/4-inch (6.4 mm) gauge specification in JUKI DLM-5200N documentation. Different B1190-522 part numbers correspond to different gauge widths, so the part number should be matched carefully before ordering.

Which Juki machines use B1190-522-U00?

B1190-522-U00 is associated with Juki DLM edge-trimming machines, including DLM-522 and DLM-5200-series configurations. It is also listed for DLM-5400-7 and DLM-5400N-7 applications by sewing-parts suppliers. Always match the part number and gauge specification with your existing machine setup.

Does B1190-522-U00 fit Juki DLM-5200N?

Yes. JUKI’s DLM-5200N documentation lists B1190-522-U00 as the gauge for the H configuration with a 6.4 mm (1/4-inch) gauge width. The associated setup also includes specific throat-plate cover, chip-guide, presser-foot and feed-dog components.

Is this needle plate suitable for edge-trimming machines?

Yes. It is intended for the DLM edge-trimming system, where the gauge/needle plate works as part of the sewing and vertical knife arrangement. The correct plate must be selected according to the required gauge width and machine configuration.

What does the U00 part number mean?

The U00 suffix identifies a specific B1190-522 gauge plate configuration. In JUKI documentation, B1190-522-U00 corresponds to the H configuration and 6.4 mm (1/4-inch) gauge width for the DLM-5200N system.

Can I replace a different B1190-522 plate with U00?

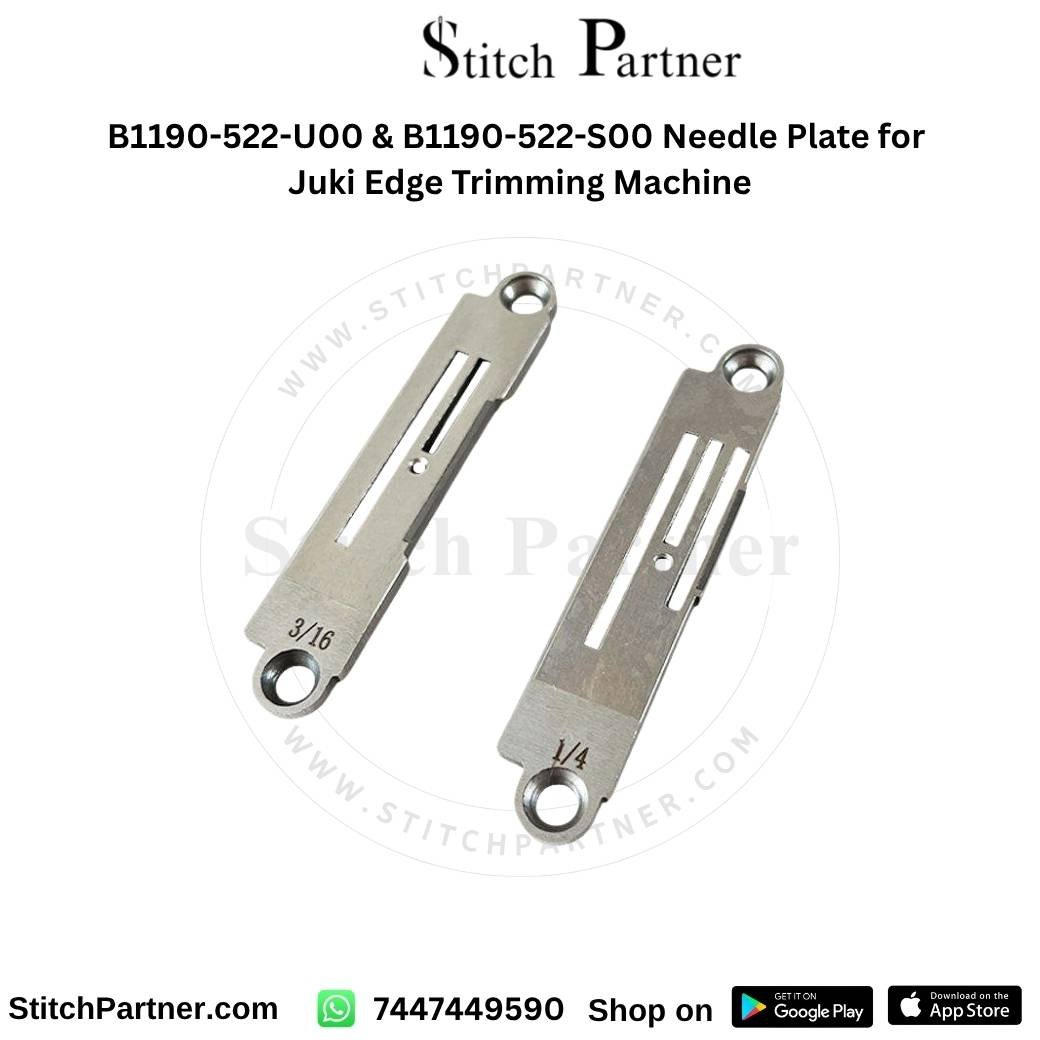

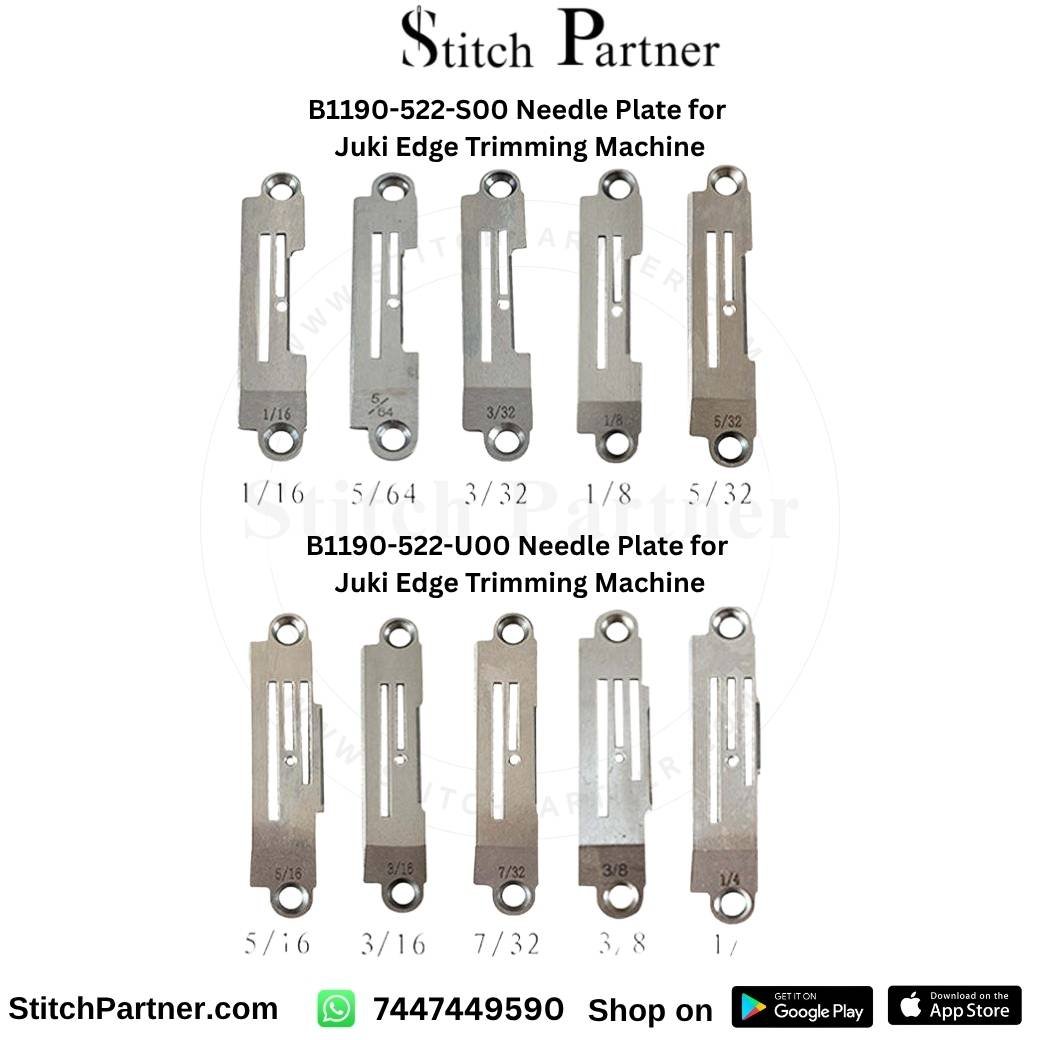

Not automatically. B1190-522-S00, B1190-522-T00, U00, V00 and other variants correspond to different gauge widths. For example, U00 is 1/4 inch, while T00 is 3/16 inch and V00 is 3/8 inch. Match the replacement with your machine’s required gauge specification.

Is B1190-522-U00 the same as B1190522U00?

Yes, these are commonly written as the same part number, with or without the hyphens. For ordering, it is best to compare the complete part number and physical configuration with the original component.

Does this product include the complete gauge set?

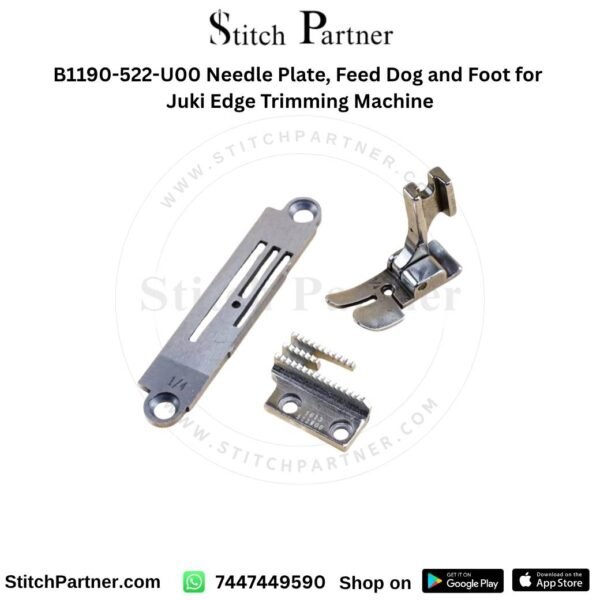

No. This listing is for 1 piece of B1190-522-U00. A complete DLM gauge setup may contain additional components such as a throat-plate cover, chip guide, presser foot and feed dog. JUKI’s parts documentation shows these components separately.
