Product Description

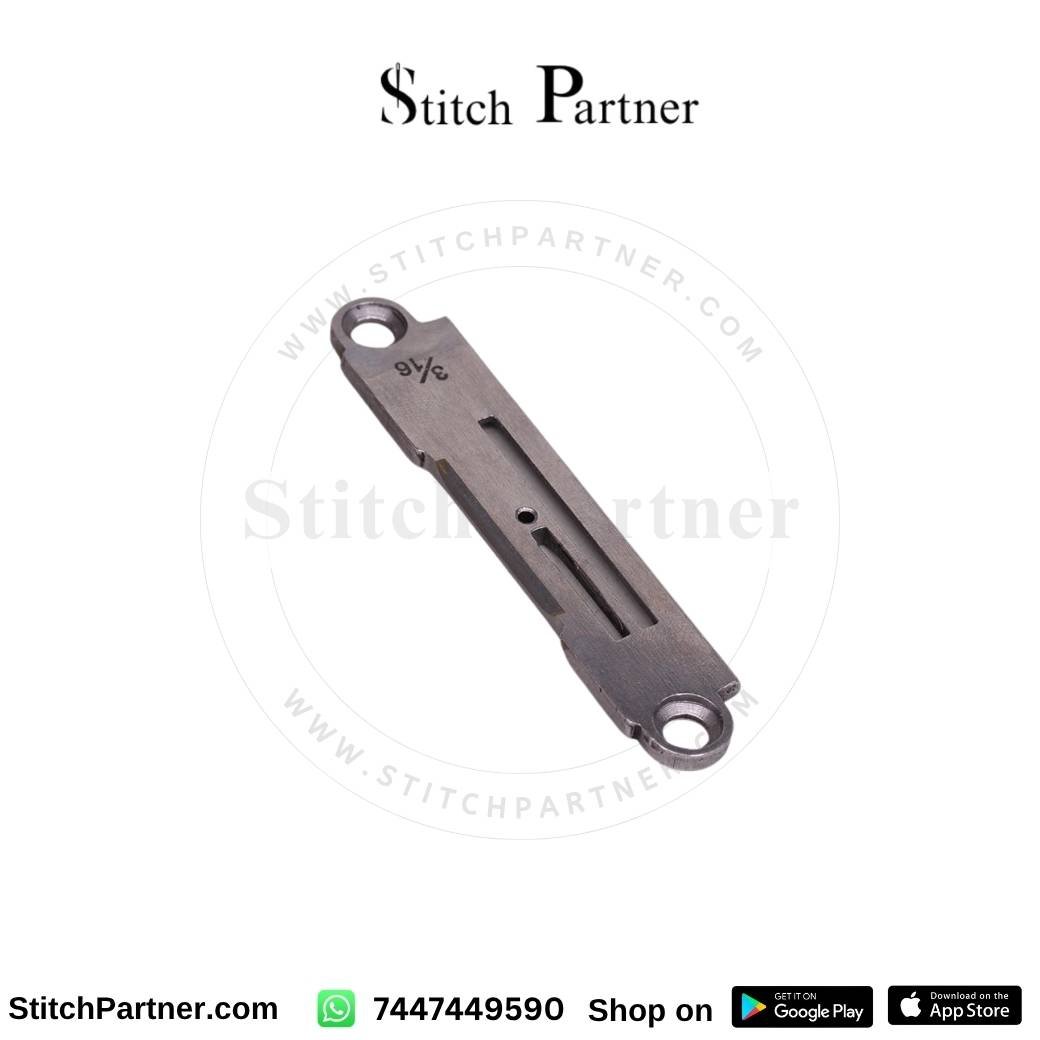

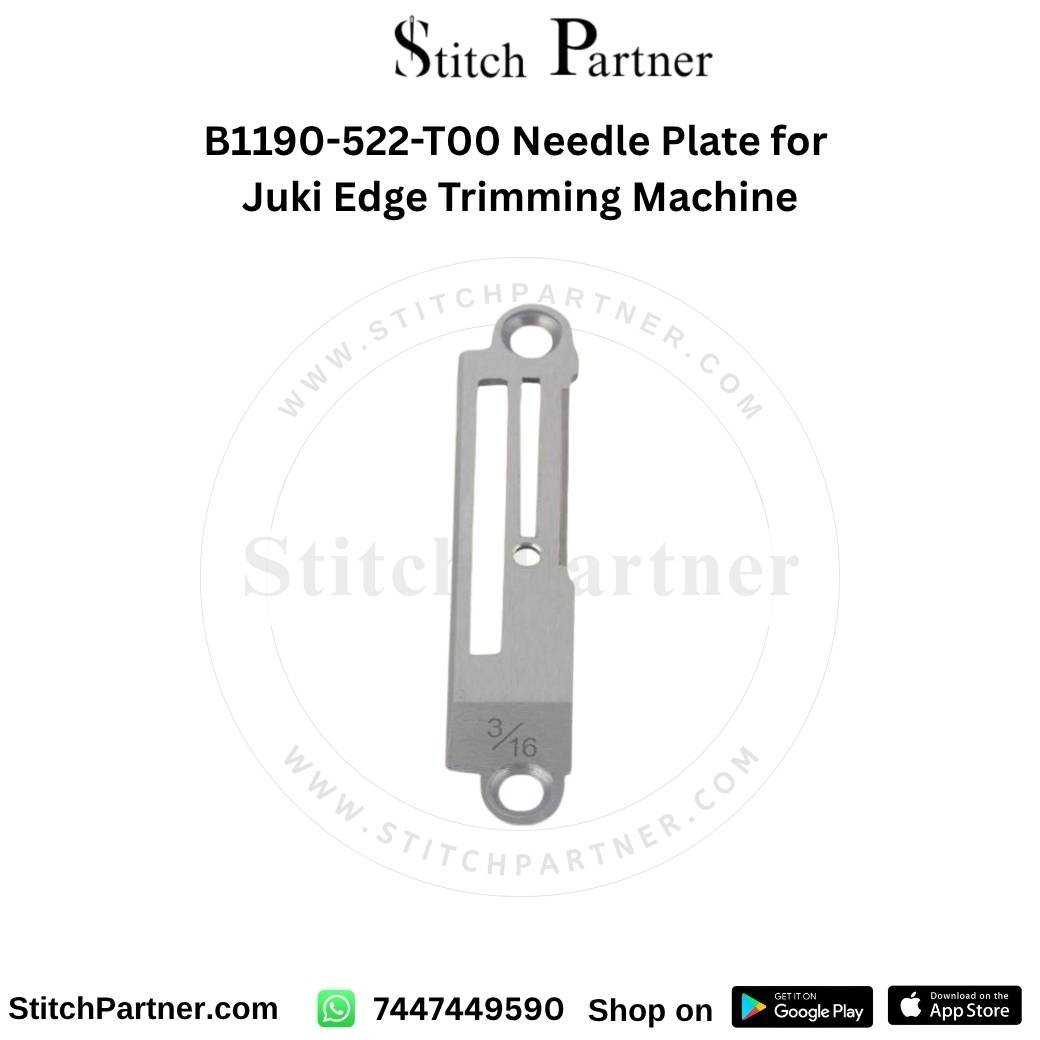

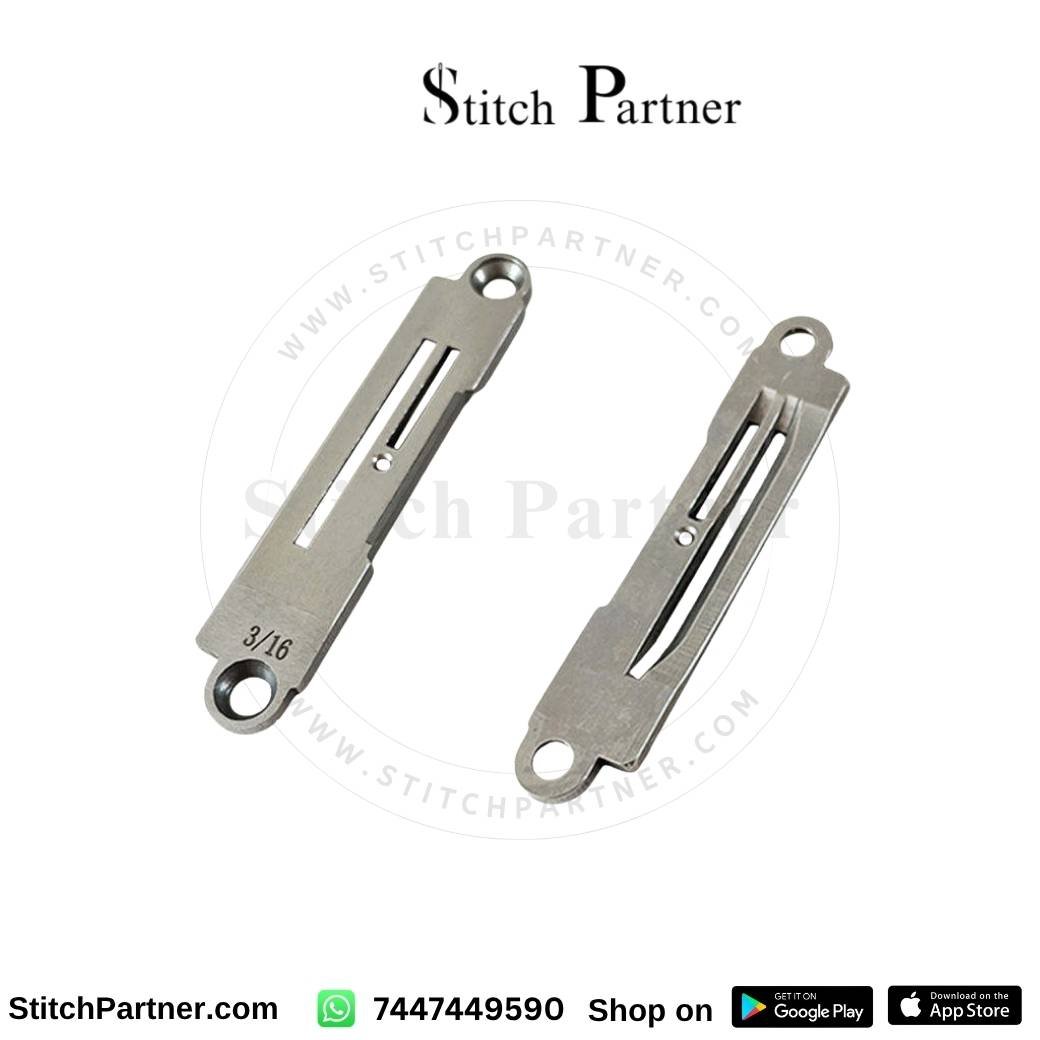

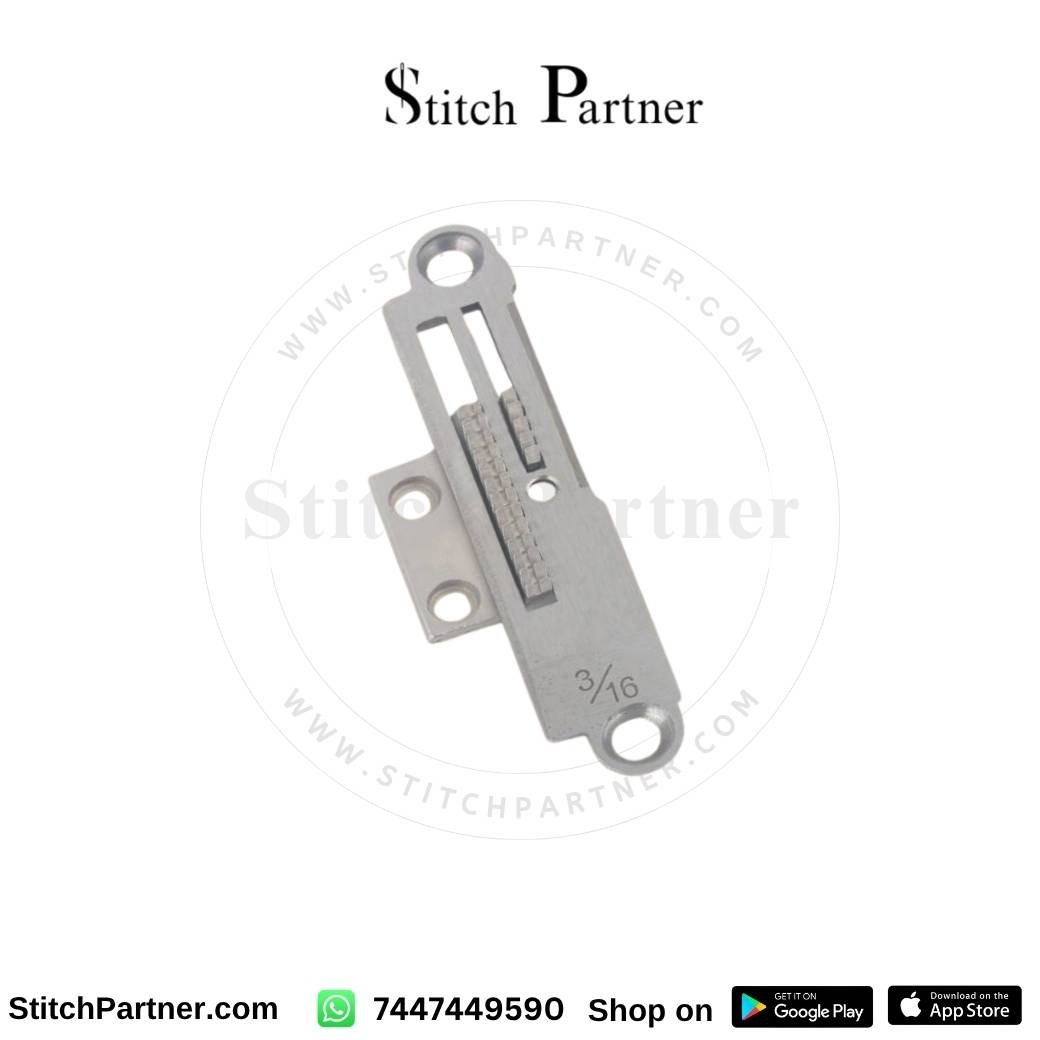

The B1190-522-T00 3/16″ (4.8mm) needle plate is a replacement gauge plate designed for Juki edge-trimming sewing machines. It provides a 3/16-inch (4.8mm) trimming gauge for applications that require a wider seam margin while sewing and trimming fabric edges.
This industrial needle plate is suitable for compatible Juki DLM series edge-trimming machines and is also specified for the Jack JK-5558WB side-cutter lockstitch machine. Juki’s official parts documentation identifies B1190-522-T00 as the 3/16-inch gauge plate and lists it within the DLM-5200N/5400N-7 sub-gauge system.
The 4.8mm gauge is useful when working with medium to heavy woven materials such as denim, workwear fabrics, trousers, jackets, pocket flaps and other garments where a broader edge-trimming allowance is required.
What You Get
- 1 × B1190-522-T00 3/16″ (4.8mm) needle/gauge plate
- Part number: B1190-522-T00
- Also referenced as B1190522-T00 / B1190522T00
- 3/16″ / 4.8mm gauge
- Designed for compatible Juki edge-trimming systems
Why Choose This 3/16″ Needle Plate?
The main advantage of this gauge plate is its 4.8mm trimming clearance. Compared with narrower gauge options, the 3/16-inch configuration provides additional room for applications where the fabric edge or seam allowance needs a wider trimming position.
Juki’s official documentation lists the B1190-522-T00 with a 4.8mm (3/16″) gauge width and pairs it with the corresponding throat plate, feed dog, presser-foot assembly and knife components in the sub-gauge system.
Its polished working surface also helps fabric move smoothly across the plate during continuous sewing and edge trimming.
Key Features
- 3/16″ (4.8mm) gauge: Designed for a wider edge-trimming margin.
- Industrial replacement part: Suitable for compatible production sewing applications.
- Precision cutter opening: Designed around the edge-trimming mechanism of the compatible machine system.
- Smooth working surface: Helps reduce unnecessary friction during fabric feeding.
- High-strength construction: Suitable for repeated use in garment production.
- Part-number matching: B1190-522-T00 makes identification easier when replacing an existing plate.
- Matching gauge system: Juki documentation identifies this part as the 3/16″ gauge plate in the relevant DLM sub-gauge configuration.
Machine Compatibility
| Machine Type | Compatible |
|---|---|
| Juki DLM-522 | Yes |
| Juki DLM-5200 | Yes |
| Juki DLM-5200N | Yes |
| Juki DLM-5210N | Yes |
| Juki DLM-5400-7 | Yes |
| Juki DLM-5400N-7 | Yes |
| Jack JK-5558WB | Yes, as specified |
| DDL-5550 | Verify existing part before purchase |
Important: Juki’s official documentation confirms B1190-522-T00 as the 3/16″ gauge plate for the DLM-5200N/5400N-7 sub-gauge system.
Please verify the shape and measurements of your existing part before purchasing, especially when replacing a plate on a machine variant not explicitly listed in the manufacturer’s parts documentation.
Best Fabric Types
The 3/16″ gauge is particularly useful for medium to heavy fabrics where a wider trimming margin is required.
- Denim: Suitable for jeans, denim panels and workwear.
- Cotton: Useful for medium and heavy cotton garments.
- Polyester: Suitable for compatible woven polyester fabrics.
- Canvas: Can be useful for heavier woven applications when the machine setup supports the material.
- Workwear fabrics: Suitable for jackets, trousers and industrial garments.
- Outerwear materials: Useful for garments requiring controlled edge trimming.
Always select the correct needle, thread, knife and machine settings for the fabric being sewn.
Matching Edge-Trimmer Components
The B1190-522-T00 is part of a gauge-based edge-trimming system. Juki’s official DLM-5200N documentation shows the 4.8mm (3/16″) configuration together with throat plate 113-46004, throat plate cover B1115-530-0AF, chip guard 113-46905, chip guide 113-46400, hinging presser assembly B1524-522-NAA, feed dog B1613-522-N00A and knife B4121-522-000.
This makes correct component matching important when replacing only one part of an existing edge-trimming setup.
How To Use
- Switch off the sewing machine and disconnect power before replacing the plate.
- Remove the existing needle plate according to the machine service procedure.
- Check the replacement plate against the original for correct shape, mounting points and gauge.
- Install the B1190-522-T00 3/16″ plate securely.
- Check the needle, feed dog and trimming knife alignment before operating the machine.
- Turn the machine by hand slowly and confirm that the needle and knife clear the plate correctly.
- Test sew on a scrap piece of the intended fabric.
- Adjust the edge-trimming position if required before returning to production.
Frequently Asked Questions
What is B1190-522-T00?
B1190-522-T00 is a 3/16-inch (4.8mm) gauge plate used in compatible Juki edge-trimming sewing machine systems. Juki’s official parts documentation identifies it as the 3/16″ gauge plate for the DLM-5200N/5400N-7 sub-gauge configuration.
What does 3/16 inch mean on this needle plate?
3/16 inch refers to the gauge width associated with this plate, which is approximately 4.8mm. This configuration is intended for applications requiring a wider trimming margin than narrower 1/8-inch or 3/32-inch gauge options.
Is B1190-522-T00 suitable for Juki DLM-5200N?
Yes. Juki’s official documentation lists B1190-522-T00 as the gauge plate for the 4.8mm (3/16″) F sub-gauge configuration on the DLM-5200N/5400N-7 system.
Is this the same as the B1190-522-S00 plate?
No. B1190-522-S00 is the 1/8-inch gauge plate, while B1190-522-T00 is the 3/16-inch (4.8mm) version. Juki’s parts list separately identifies these gauge plates by their part numbers and sizes.
Can I use this plate for denim and thick fabric?
Yes, where the machine and complete edge-trimming setup are suitable for the fabric. The 3/16-inch gauge provides a wider trimming clearance that can be useful for denim, workwear, jackets and other medium-to-heavy woven garments.
Which feed dog works with the 3/16-inch configuration?
Juki’s DLM-5200N documentation lists B1613-522-N00A as the feed dog for the 4.8mm (3/16″) F sub-gauge configuration.
Does this needle plate fit every Juki sewing machine?
No. It is a specialized gauge plate for compatible Juki edge-trimming systems, not a universal Juki needle plate. Always match the part number, machine model and existing plate configuration before ordering.
What should I check before buying?
Check your machine model, existing plate shape, mounting arrangement and part number. Please verify the shape and measurements of your existing part before purchasing if your machine variant is not explicitly confirmed.
Compatible Products
B1190-522-U00 Needle Plate for Juki DLM Edge Trimmer
